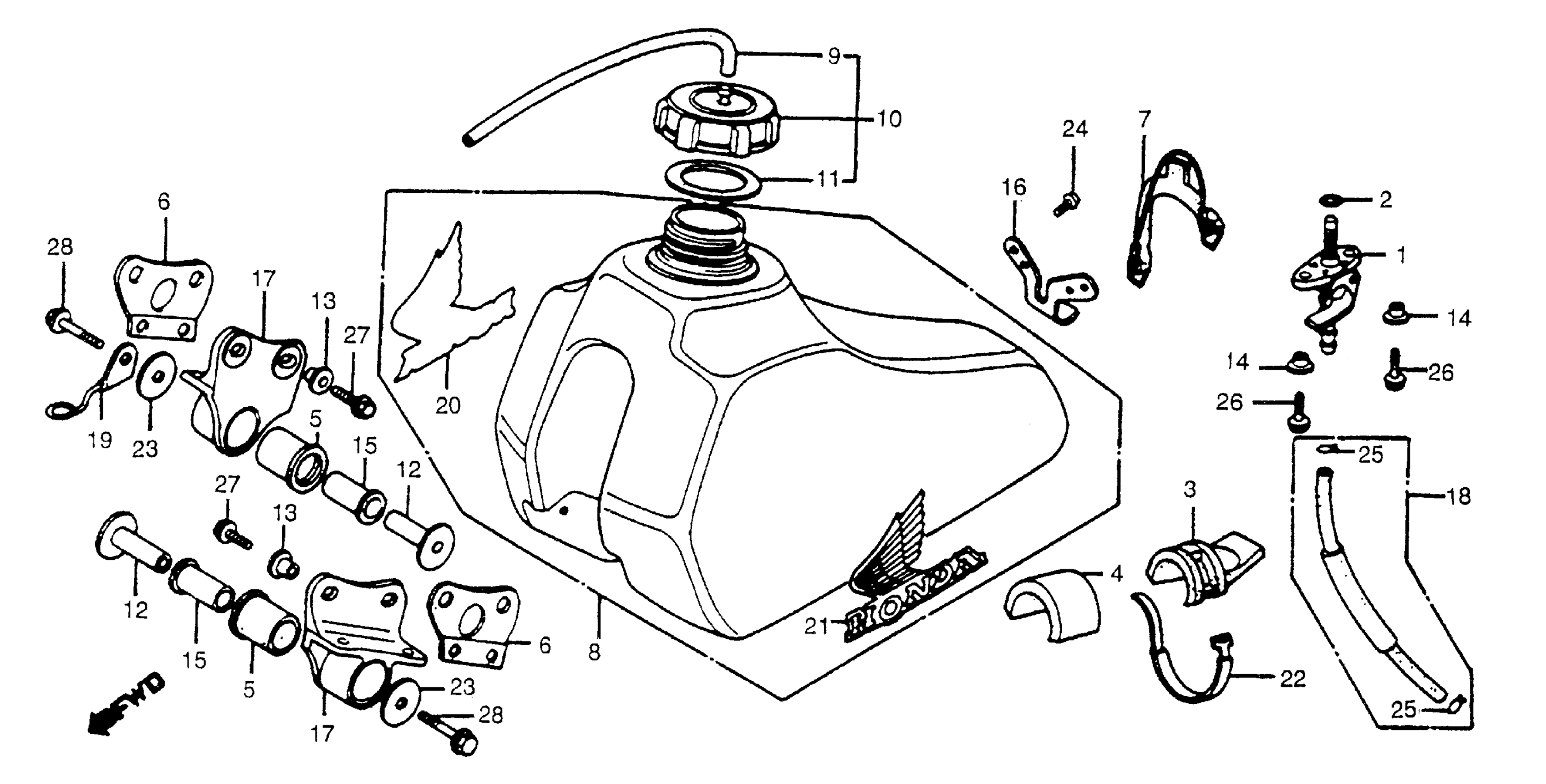

Honda CR480RA (82) MOTORCYCLE, JPN, VIN# JH2PE020-CC100019 TO JH2PE020-CC105878 FUEL TANK 82 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-KA3-005.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-730.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-731.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-732.

16950-ML3-911

$51.08

1

PETCOCK ASSY.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-467-005.

16950-ML3-911

$51.08

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER A, FUEL TANK SETTING (NOT AVAILABLE)

17504-KA4-000

Unavailable

4

RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)

17506-357-000

Unavailable

5

RUBBER, FUEL TANK SETTING (NOT AVAILABLE)

17508-KA4-000

Unavailable

6

RUBBER, FR. FUEL TANK SETTING (NOT AVAILABLE)

17514-MA0-000

Unavailable

7

BAND, RR. FUEL TANK (NOT AVAILABLE)

17516-KA4-000

Unavailable

8

TANK SUB-ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)

17520-KA5-770ZA

Unavailable

9

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

10

CAP ASSY., FUEL TANK (NOT AVAILABLE) This part replaces 17620-KA4-000.

17620-KA4-710

Unavailable

11

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

12

COLLAR, FR. FUEL TANK MOUNTING (NOT AVAILABLE)

17625-KA4-700

Unavailable

13

COLLAR, FUEL TANK SETTING

17626-KA4-700

$6.71

14

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

15

COLLAR, SLIDER (NOT AVAILABLE)

17628-KA4-000

Unavailable

16

BRACKET, RR. FUEL TANK (NOT AVAILABLE)

17629-KA5-770

Unavailable

17

BRACKET, FR. FUEL TANK (NOT AVAILABLE)

17634-KA5-770

Unavailable

18

TUBE ASSY., FUEL (NOT AVAILABLE)

17681-KA5-010

Unavailable

19

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22878-KA5-000

Unavailable

20

LABEL, R. FUEL TANK (NOT AVAILABLE)

87123-MA0-300

Unavailable

21

LABEL, L. FUEL TANK (NOT AVAILABLE)

87124-MA0-300

Unavailable

22

BAND, WIRE

90130-KA4-000

Unavailable

23

WASHER, FENDER SETTING

90506-430-000

$2.92

24

SCREW, PAN (6X12)

93500-06012-0H

$1.49

24

SCREW, PAN (6X12) This part replaces 93500-06012-08.

93500-06012-0H

$1.49

25

CLIP, TUBE (B12)

95002-02120

$2.00

26

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

26

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

27

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

27

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

28

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

28

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
