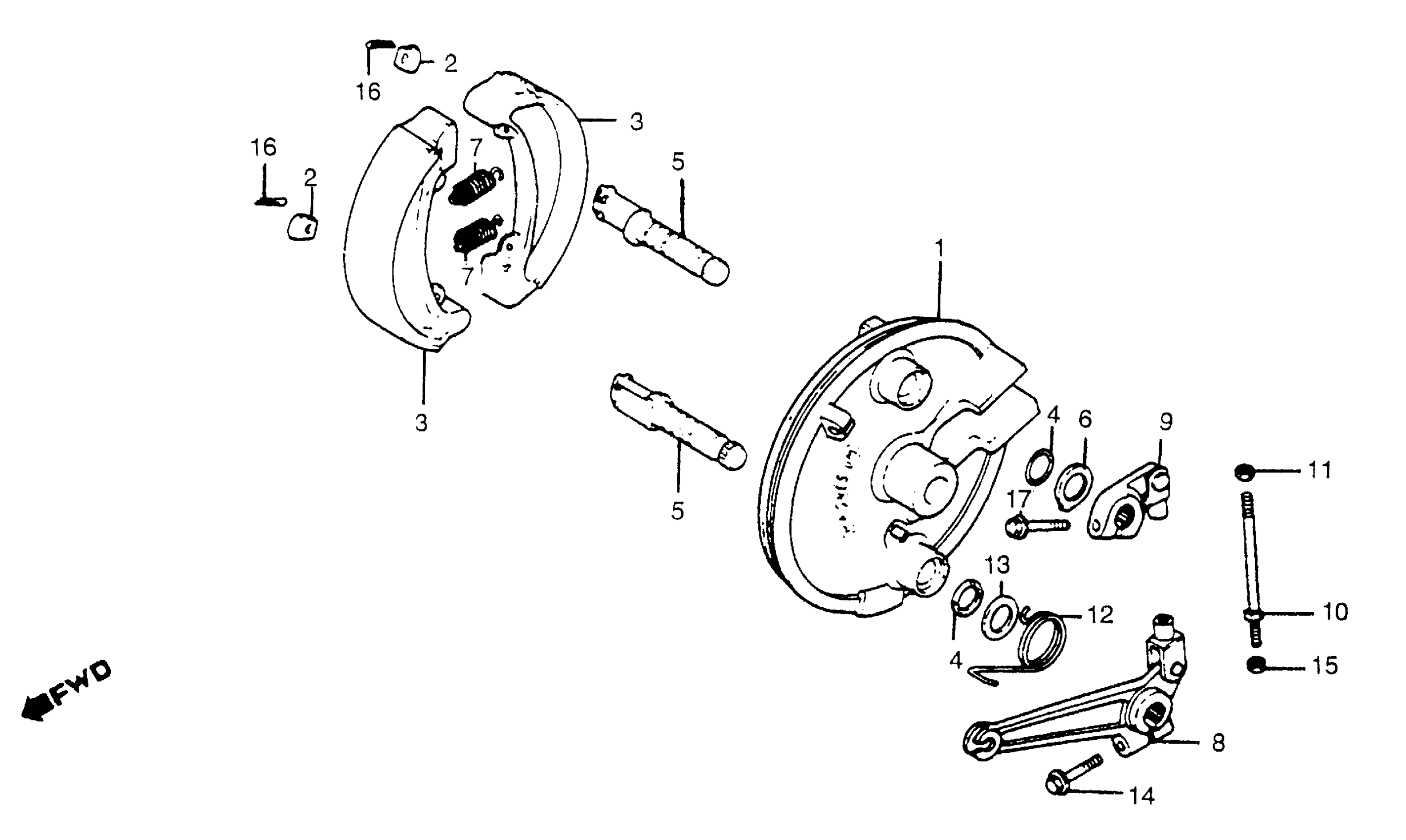

Honda CR480RA (82) MOTORCYCLE, JPN, VIN# JH2PE020-CC100019 TO JH2PE020-CC105878 FRONT BRAKE PANEL 82 Diagram

SHOE KIT, BRAKE This part replaces 06450-KA4-405.

06450-MA0-406

Unavailable

SHOE KIT, BRAKE

06450-MA0-406

Unavailable

SHOE KIT, BRAKE This part replaces 451A2-KA4-701.

06450-MA0-406

Unavailable

PANEL, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN CC103018 This part replaces 45100-MA0-770.

45100-MA0-771

Unavailable

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-MA0-771

Unavailable

WASHER, ANCHOR PIN (NOT AVAILABLE)

45106-MA0-000

Unavailable

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) | Use up to Frame SN CC103018 This part replaces 45120-KA4-700.

45120-KA4-701

Unavailable

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-KA4-701

Unavailable

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

CAM, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN CC103018 This part replaces 45141-MA0-770.

45141-MA0-771

Unavailable

CAM, FR. BRAKE (NOT AVAILABLE)

45141-MA0-771

Unavailable

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-413-670

Unavailable

SPRING, FR. BRAKE SHOE (NOT AVAILABLE)

45151-MA0-770

Unavailable

ARM A, FR. BRAKE (NOT AVAILABLE)

45410-KA4-700

Unavailable

ARM B, FR. BRAKE (NOT AVAILABLE)

45420-KA4-700

Unavailable

ROD, BRAKE ARM CONNECTING (NOT AVAILABLE)

45422-KA4-700

Unavailable

NUT, HEX. (6MM)

45423-KA4-700

$1.55

SPRING, BRAKE ARM RETURN (NOT AVAILABLE)

45435-KA4-700

Unavailable

WASHER (14MM)

90509-169-000

Unavailable

WASHER (14MM) This part replaces 90525-MA0-000.

90509-169-000

Unavailable

BOLT, HEX. (6X35) This part replaces 92000-06035-0H.

92101-06035-0H

$1.77

BOLT, HEX. (6X35)

92101-06035-0H

$1.77

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

PIN, COTTER (2.0X12)

94201-20120

$1.49

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
