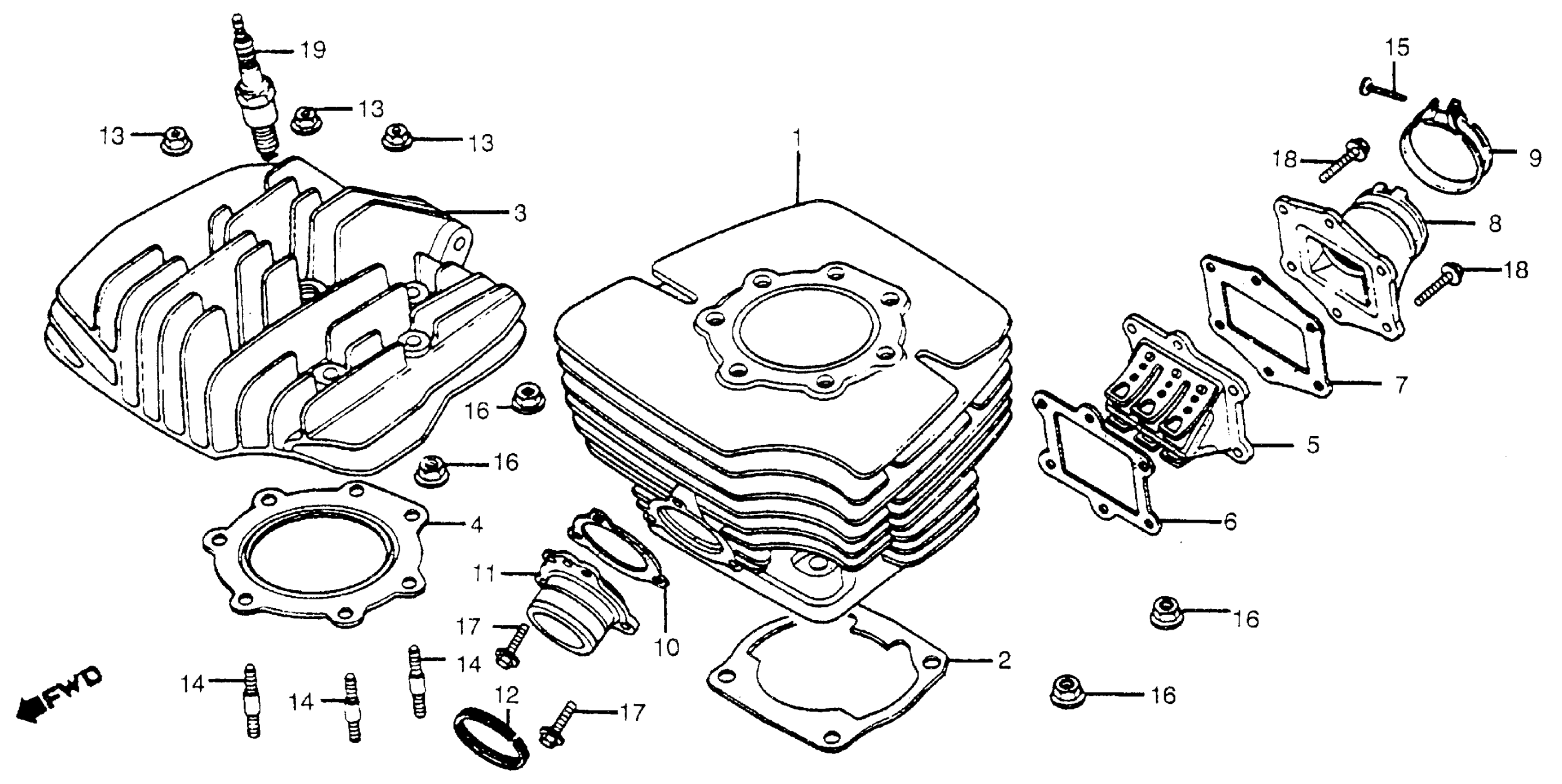

Honda CR480RA (82) MOTORCYCLE, JPN, VIN# JH2PE020-CC100019 TO JH2PE020-CC105878 CYLINDER HEAD + CYLINDER + REED VALVE Diagram

#

Description
Price

1

CYLINDER

12100-KA5-770

Unavailable

2

GASKET, CYLINDER

12191-KA5-308

Unavailable

2

GASKET, CYLINDER This part replaces 12191-KA5-770.

12191-KA5-308

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-KA5-770

Unavailable

4

GASKET, CYLINDER HEAD

12254-KA5-770

Unavailable

5

VALVE ASSY., REED (NOT AVAILABLE)

14100-KA5-770

Unavailable

6

GASKET A, REED VALVE

14132-KAE-000

$4.06

6

GASKET A, REED VALVE This part replaces 14132-430-000.

14132-KAE-000

$4.06

7

GASKET B, REED VALVE This part replaces 14133-430-000.

14133-430-306

$7.64

7

GASKET B, REED VALVE

14133-430-306

$7.64

8

INSULATOR, CARBURETOR (NOT AVAILABLE)

16221-KA5-000

Unavailable

9

BAND, INSULATOR This part replaces 16223-KA4-000.

16223-KS5-000

$14.20

9

BAND, INSULATOR

16223-KS5-000

$14.20

10

GASKET, EX. PIPE This part replaces 18291-430-000.

18291-430-306

$4.92

10

GASKET, EX. PIPE

18291-430-306

$4.92

11

JOINT, EX. PIPE

18351-KA4-700

Unavailable

12

SEAL, EX. JOINT

18359-KA4-700

Unavailable

13

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

13

NUT, FLANGE (8MM)

94050-08000

$1.49

14

BOLT, STUD (8X60) This part replaces 92700-08060-3E.

92900-08040-3E

Unavailable

14

BOLT, STUD (8X60)

92900-08040-3E

Unavailable

15

SCREW, PAN (5X20)

93500-05020-0A

$1.49

16

NUT, FLANGE (10MM)

94050-10000

$1.59

17

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

17

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

18

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

18

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

19

SPARK PLUG (BR8EG) (NGK)

98079-58679

$5.80

19

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649.

98079-58679

$5.80

19

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649-00.

98079-58679

$5.80

19

SPARK PLUG (W24ESR-V) (DENSO)

98079-58659

$2.54

19

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58669.

98079-58679

$5.80
