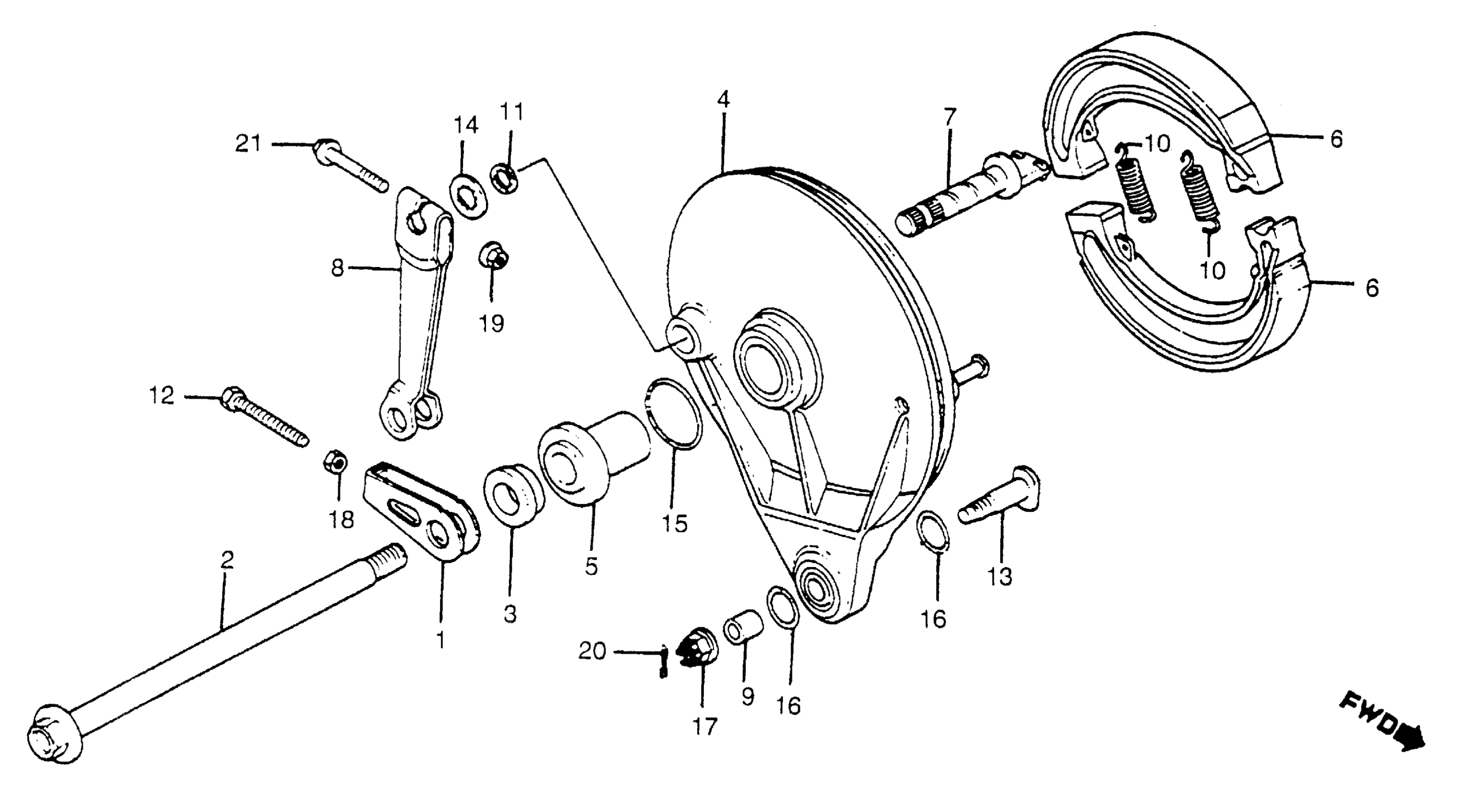

Honda CR450RA (81) ELSINORE, JPN, VIN# JH2PE020-BC000001 TO JH2PE020-BC004682 REAR BRAKE PANEL 81 Diagram

#

Description
Price

NI

SHOE KIT, BRAKE This part replaces 431A2-KA4-005.

06430-KA4-405

Unavailable

1

ADJUSTER, CHAIN (NOT AVAILABLE)

40543-KA4-010

Unavailable

2

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-KA4-000

Unavailable

3

COLLAR, RR. PANEL SIDE (NOT AVAILABLE)

42313-KA4-000

$21.18

4

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-KA4-000

Unavailable

5

COLLAR, RR. BRAKE PANEL (NOT AVAILABLE)

43111-KA4-000

Unavailable

6

SHOE, BRAKE This part replaces 43120-KA4-003.

43120-KA4-305

$25.87

6

SHOE, BRAKE This part replaces 43120-KA4-005.

43120-KA4-305

$25.87

7

CAM, RR. BRAKE (NOT AVAILABLE)

43141-430-000

Unavailable

8

ARM, RR. BRAKE (NOT AVAILABLE)

43410-KA4-000

Unavailable

9

COLLAR, RR. STOPPER ARM DISTANCE

43433-444-000

Unavailable

10

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

BOLT, CHAIN ADJUSTING

90119-KA4-000

Unavailable

13

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90127-444-000

Unavailable

14

WASHER (14MM)

90509-169-000

Unavailable

14

WASHER (14MM) This part replaces 90525-MA0-000.

90509-169-000

Unavailable

15

O-RING (40X2.6) This part replaces 91301-371-003.

91301-371-005

$4.65

15

O-RING (40X2.6)

91301-371-005

$4.65

16

O-RING (20X1.8) (NOT AVAILABLE)

91302-430-003

Unavailable

17

NUT, HEX. (10MM)

94001-10000-0S

$1.49

18

NUT, HEX. (8MM)

94002-08000-0S

$1.49

18

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.49

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

PIN, COTTER (2.0X15)

94201-20150

$1.49

21

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

21

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
