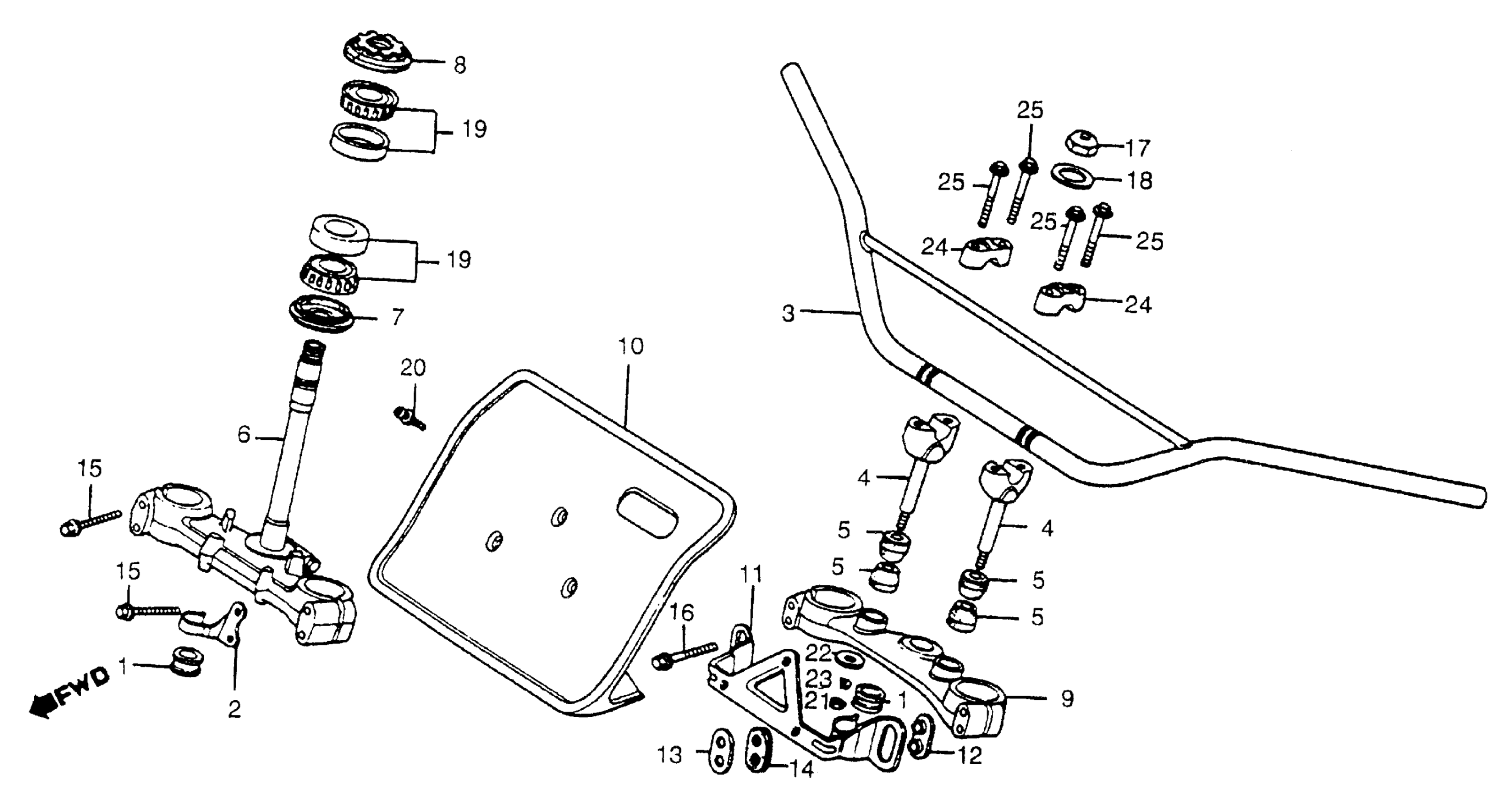

Honda CR450RA (81) ELSINORE, JPN, VIN# JH2PE020-BC000001 TO JH2PE020-BC004682 HANDLEBAR + TOP BRIDGE 81 Diagram

GUIDE, CABLE (INNER)

45466-KA4-000

$6.51

GUIDE, BRAKE CABLE (LOWER) (NOT AVAILABLE)

45468-KA4-000

Unavailable

HANDLEBAR (NOT AVAILABLE)

53100-KA4-000

Unavailable

HOLDER, HANDLEBAR (LOWER) (NOT AVAILABLE)

53132-KA5-000

Unavailable

RUBBER, HANDLEBAR (NOT AVAILABLE)

53133-KA5-000

Unavailable

STEM, STEERING (NOT AVAILABLE)

53200-KA4-000

Unavailable

DUST SEAL, STEERING HEAD

53214-430-003

Unavailable

THREAD, STEERING HEAD (UPPER) (NOT AVAILABLE)

53220-KA4-000

Unavailable

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-KA5-000

Unavailable

PLATE, FR. NUMBER *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)

61136-KA4-670ZB

Unavailable

STAY, FR. NUMBER PLATE (NOT AVAILABLE)

61137-KA4-670

Unavailable

COLLAR, NUMBER PLATE STAY (NOT AVAILABLE)

61142-KA4-000

Unavailable

WASHER, NUMBER PLATE STAY (NOT AVAILABLE)

61143-KA4-000

Unavailable

RUBBER, NUMBER PLATE STAY (NOT AVAILABLE)

61144-KA4-000

Unavailable

BOLT, FLANGE (8X45) (NA USE ALT:90103-KF0-000) This part replaces 90103-MA0-000.

90103-KB7-000

Unavailable

BOLT, FLANGE (8X55) (NOT AVAILABLE)

90105-KA4-000

Unavailable

NUT, STEERING STEM

90304-425-000

$9.69

WASHER, STEERING STEM This part replaces 90503-KK0-000.

90503-425-000

$4.21

WASHER, STEERING STEM

90503-425-000

$4.21

WASHER, STEERING STEM This part replaces 90503-428-870.

90503-425-000

$4.21

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-371-000

Unavailable

SCREW-WASHER (6X14) (NOT AVAILABLE)

93891-06014-07

Unavailable

NUT, HEX. (10MM)

94001-10080-0S

$1.49

WASHER, PLAIN (10MM)

94103-10800

$1.49

WASHER, SPRING (10MM)

94111-10800

$1.49

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
