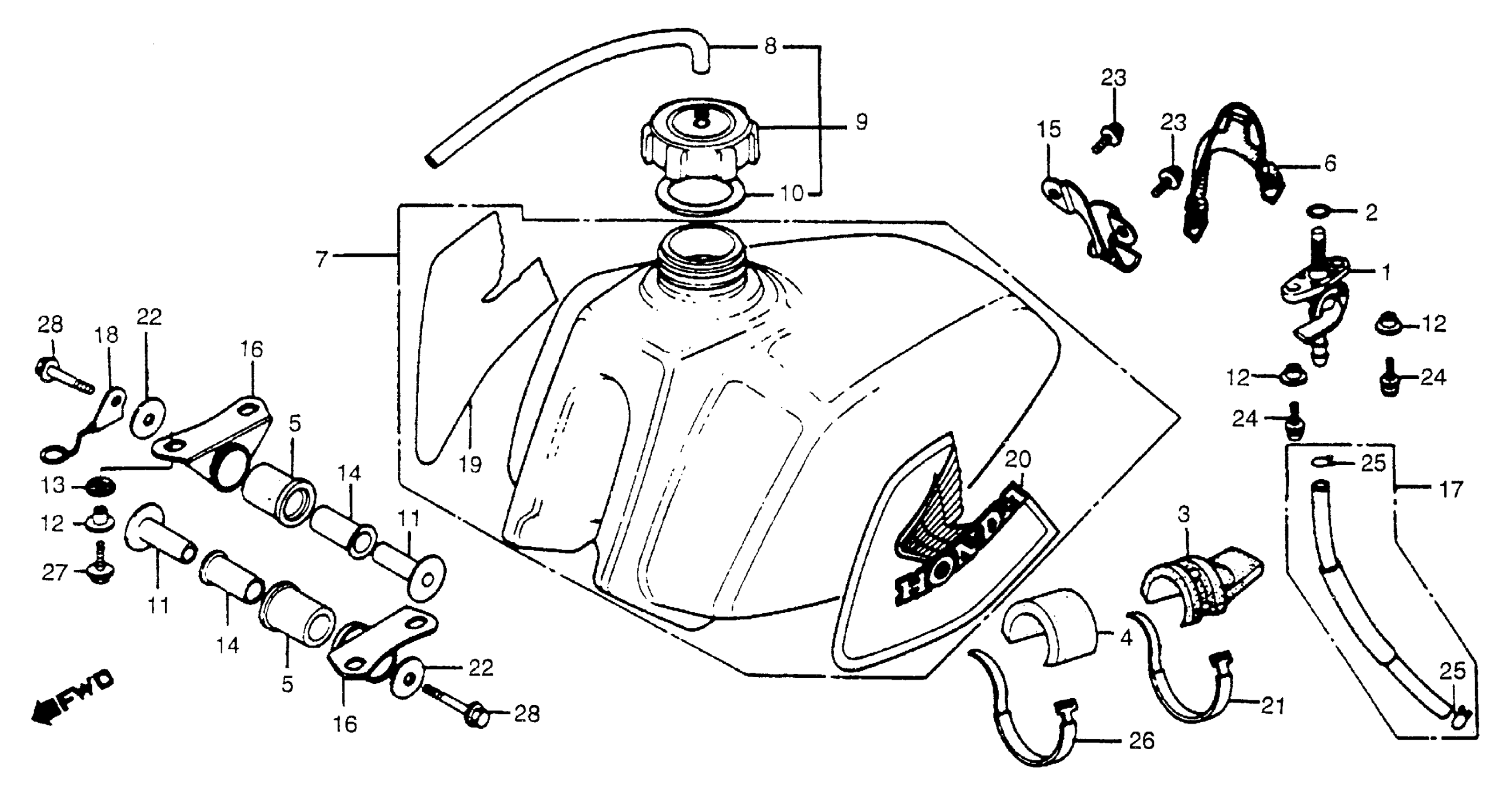

Honda CR450RA (81) ELSINORE, JPN, VIN# JH2PE020-BC000001 TO JH2PE020-BC004682 FUEL TANK 81 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-KA3-005.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-730.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-731.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-732.

16950-ML3-911

$51.08

1

PETCOCK ASSY.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-467-005.

16950-ML3-911

$51.08

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER A, FUEL TANK SETTING (NOT AVAILABLE)

17504-KA4-000

Unavailable

4

RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)

17506-357-000

Unavailable

5

RUBBER, FUEL TANK SETTING (NOT AVAILABLE)

17508-KA4-000

Unavailable

6

BAND, RR. FUEL TANK (NOT AVAILABLE)

17516-KA4-000

Unavailable

7

TANK SUB-ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)

17520-KA5-000ZA

Unavailable

8

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

9

CAP ASSY., FUEL FILLER (NOT AVAILABLE)

17620-467-020

Unavailable

10

GASKET, FUEL TANK CAP

17624-467-020

Unavailable

11

COLLAR, FR. FUEL TANK MOUNTING (NOT AVAILABLE)

17625-KA4-000

Unavailable

12

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

13

RUBBER, FR. FUEL TANK

17627-467-000

$2.39

14

COLLAR, SLIDER (NOT AVAILABLE)

17628-KA4-000

Unavailable

15

BRACKET, RR. FUEL TANK (NOT AVAILABLE)

17629-KA5-000

Unavailable

16

BRACKET, FR. FUEL TANK (NOT AVAILABLE)

17634-KA5-000

Unavailable

17

TUBE ASSY., FUEL (NOT AVAILABLE)

17681-KA5-010

Unavailable

18

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22878-KA5-000

Unavailable

19

STRIPE, R. FUEL TANK (NOT AVAILABLE)

87123-KA5-300

Unavailable

20

STRIPE, L. FUEL TANK (NOT AVAILABLE)

87124-KA5-300

Unavailable

21

BAND, WIRE

90130-KA4-000

Unavailable

22

WASHER, SEAT

90501-040-000

Unavailable

23

SCREW, PAN (6X12)

93500-06012-0H

$1.49

23

SCREW, PAN (6X12) This part replaces 93500-06012-08.

93500-06012-0H

$1.49

24

SCREW-WASHER (6X16)

93891-06016-08

$1.49

25

CLIP, TUBE (B12)

95002-02120

$2.00

26

BAND B3, CABLE HARNESS

95014-62300

$2.25

27

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

27

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

27

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

28

BOLT, FLANGE (6X45) This part replaces 95700-06045-08.

95701-06045-08

$2.06

28

BOLT, FLANGE (6X45)

95701-06045-08

$2.06
