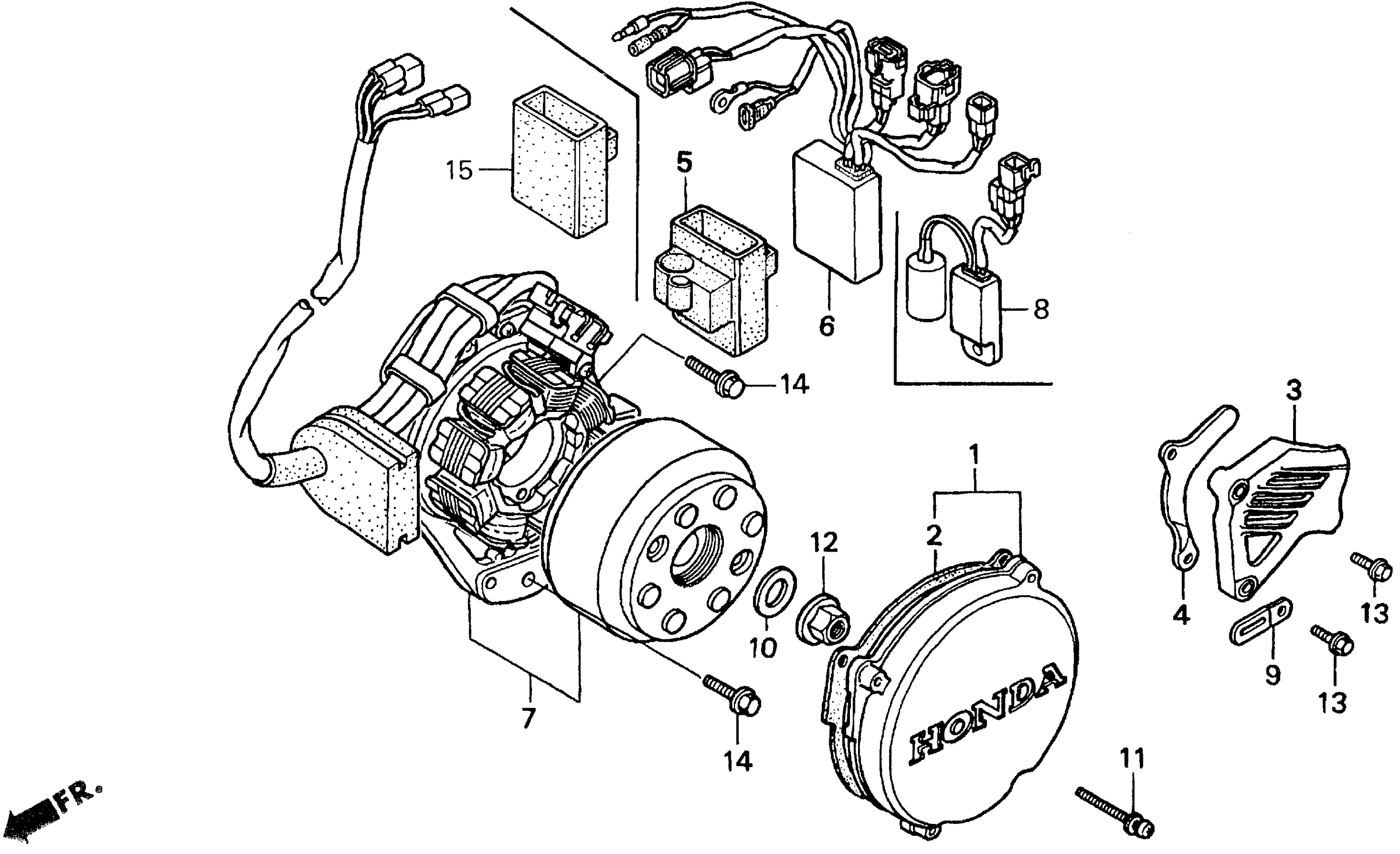

Honda CR250RA (99) MOTORCYCLE, JPN, VIN# JH2ME033-XM100001 LEFT CRANKCASE COVER Diagram

COVER ASSY., L. CRANKCASE

11350-KZ3-861

$52.84

GASKET, L. COVER

11352-KA4-771

$4.16

COVER, DRIVE SPROCKET

23810-KZ3-861

$26.73

GUIDE, DRIVE CHAIN

23812-KA4-740

$28.59

MODULE, IGNITION CONTROL (CDI)

30410-KZ3-J11

Unavailable

ALTERNATOR ASSY., FLYWHEEL TYPE

31100-KZ3-J11

Unavailable

CLIP, PULSER WIRE

32925-958-000

$2.76

WASHER, PLAIN (12MM)

90437-611-000

$4.02

SCREW-WASHER (6X28)

93891-06028-00

$0.79

NUT, FLANGE (12MM)

94050-12000

$0.96

BOLT, FLANGE (6X32)

96001-06032-00

$1.29

BOLT, FLANGE (6X18)

96300-06018-00

Unavailable

CUSHION, IGNITION CONTROL MODULE

30401-KZ3-J10

Unavailable
