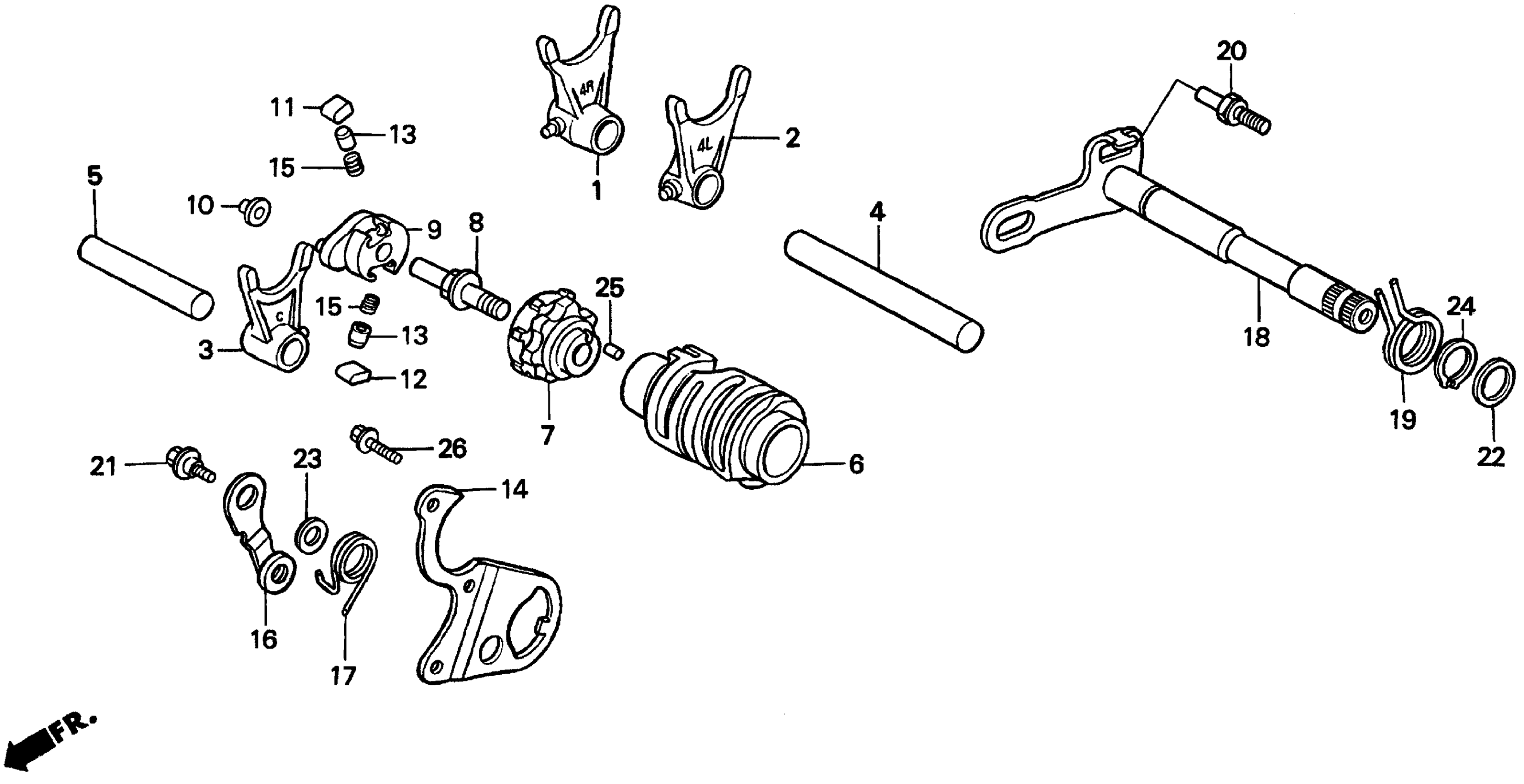

Honda CR250RA (99) MOTORCYCLE, JPN, VIN# JH2ME033-XM100001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT This part replaces 24211-KA4-770.

24211-MEN-730

$66.68

2

FORK, L. GEARSHIFT This part replaces 24221-KA4-770.

24221-MEN-730

Unavailable

2

FORK, L. GEARSHIFT

24221-MEN-730

Unavailable

3

FORK, CENTER GEARSHIFT This part replaces 24231-KA4-771.

24231-MEN-730

$61.53

3

FORK, CENTER GEARSHIFT

24231-MEN-730

$61.53

4

SHAFT A, SHIFT FORK This part replaces 24241-KZ3-A10.

24241-MEN-730

$15.61

5

SHAFT, GEARSHIFT FORK MAIN

24265-HA2-000

Unavailable

6

DRUM, GEARSHIFT

24311-KSK-730

Unavailable

6

DRUM, GEARSHIFT This part replaces 24311-ML3-000.

24311-KSK-730

Unavailable

7

CENTER, GEARSHIFT DRUM

24312-KA3-741

$62.55

8

PIN, SHIFTER

24315-HA0-000

$11.31

9

SHIFTER, GEARSHIFT DRUM

24321-KZ3-891

$49.09

10

COLLAR, SHIFTER

24322-MM4-000

$4.76

11

PAWL A, RATCHET

24324-KA3-711

$11.88

12

PAWL B, RATCHET

24325-KA3-711

$11.88

13

PLUNGER, PAWL

24326-KBH-901

$5.42

14

PLATE, GUIDE This part replaces 24328-KA4-770.

24328-KA5-690

Unavailable

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.67

16

STOPPER, DRUM

24430-KA3-740

$19.66

17

SPRING, SHIFT DRUM STOPPER

24435-KA4-770

$4.87

18

SPINDLE, GEARSHIFT

24610-KZ3-890

Unavailable

19

SPRING, GEARSHIFT RETURN

24651-KZ3-860

Unavailable

20

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$7.64

21

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.26

22

WASHER (6.1MM)

90435-HB3-000

$2.80

23

WASHER (14MM)

90451-155-000

$3.52

24

CIRCLIP (OUTER) (14MM)

94510-14000

$0.93

25

ROLLER (4X8)

96220-40080

$0.46

26

BOLT, FLANGE (6X16)

96300-06016-00

$0.86
