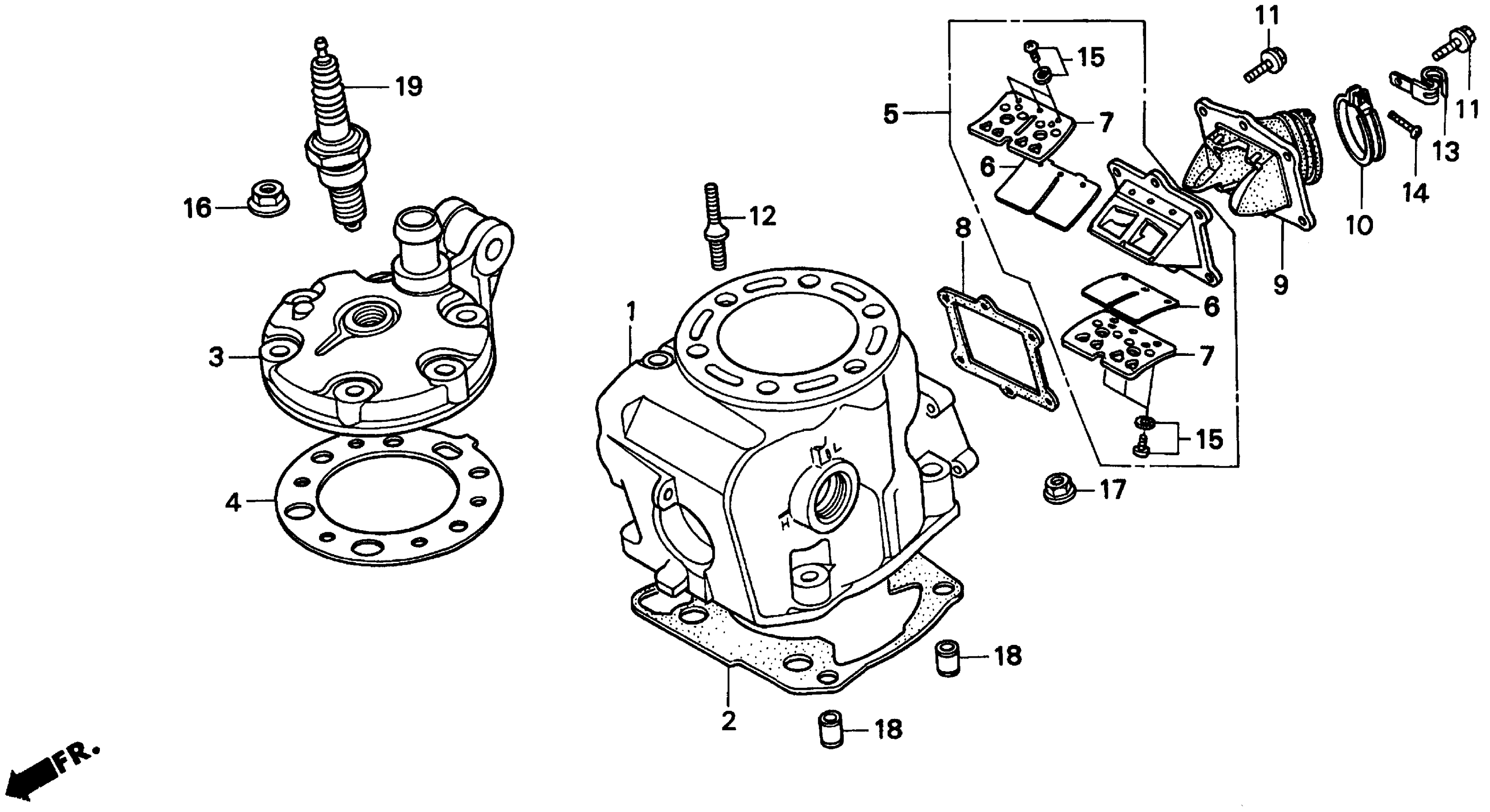

Honda CR250RA (99) MOTORCYCLE, JPN, VIN# JH2ME033-XM100001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER A

12101-KZ3-J10

Unavailable

1

CYLINDER A This part replaces 12102-KZ3-J10.

12101-KZ3-J10

Unavailable

2

GASKET, CYLINDER

12191-KZ3-880

$14.25

3

CYLINDER HEAD

12201-KZ3-J10

$136.48

4

GASKET, CYLINDER HEAD

12254-KZ3-860

$32.02

5

REED VALVE ASSY. This part replaces 14100-KZ3-J11.

14100-KZ3-J21

Unavailable

5

REED VALVE ASSY. This part replaces 14100-KZ3-J12.

14100-KZ3-J21

Unavailable

5

REED VALVE ASSY.

14100-KZ3-J21

Unavailable

6

REED VALVE ONLY This part replaces 14111-KZ3-J11.

14111-KZ3-J12

Unavailable

6

REED VALVE ONLY

14111-KZ3-J12

Unavailable

7

STOPPER, REED VALVE

14121-KZ3-J11

Unavailable

8

GASKET, REED VALVE

14132-KZ3-880

$11.73

9

INSULATOR, CARBURETOR

16221-KZ3-J10

Unavailable

10

BAND, INSULATOR

16223-KA5-690

$17.05

11

BOLT, FLANGE (6X22) (NSHF)

90004-GHB-660

$3.77

12

BOLT, SPECIAL STUD (8X37)

90011-KR8-750

$6.84

13

CLIP, WIRE HARNESS

91406-657-671

$9.42

14

SCREW, PAN (5X25)

93500-05025-0A

$1.49

15

SCREW-WASHER (3X8)

93892-03008-08

$1.49

16

NUT, FLANGE (8MM)

94050-08000

$1.49

17

NUT, FLANGE (10MM)

94050-10000

$1.59

18

PIN, DOWEL (12X20)

94301-12200

$2.29

19

SPARK PLUG (BR8EG) (NGK)

98079-58679

$5.80

19

SPARK PLUG (W24ESR-V) (DENSO)

98079-58659

$2.54
