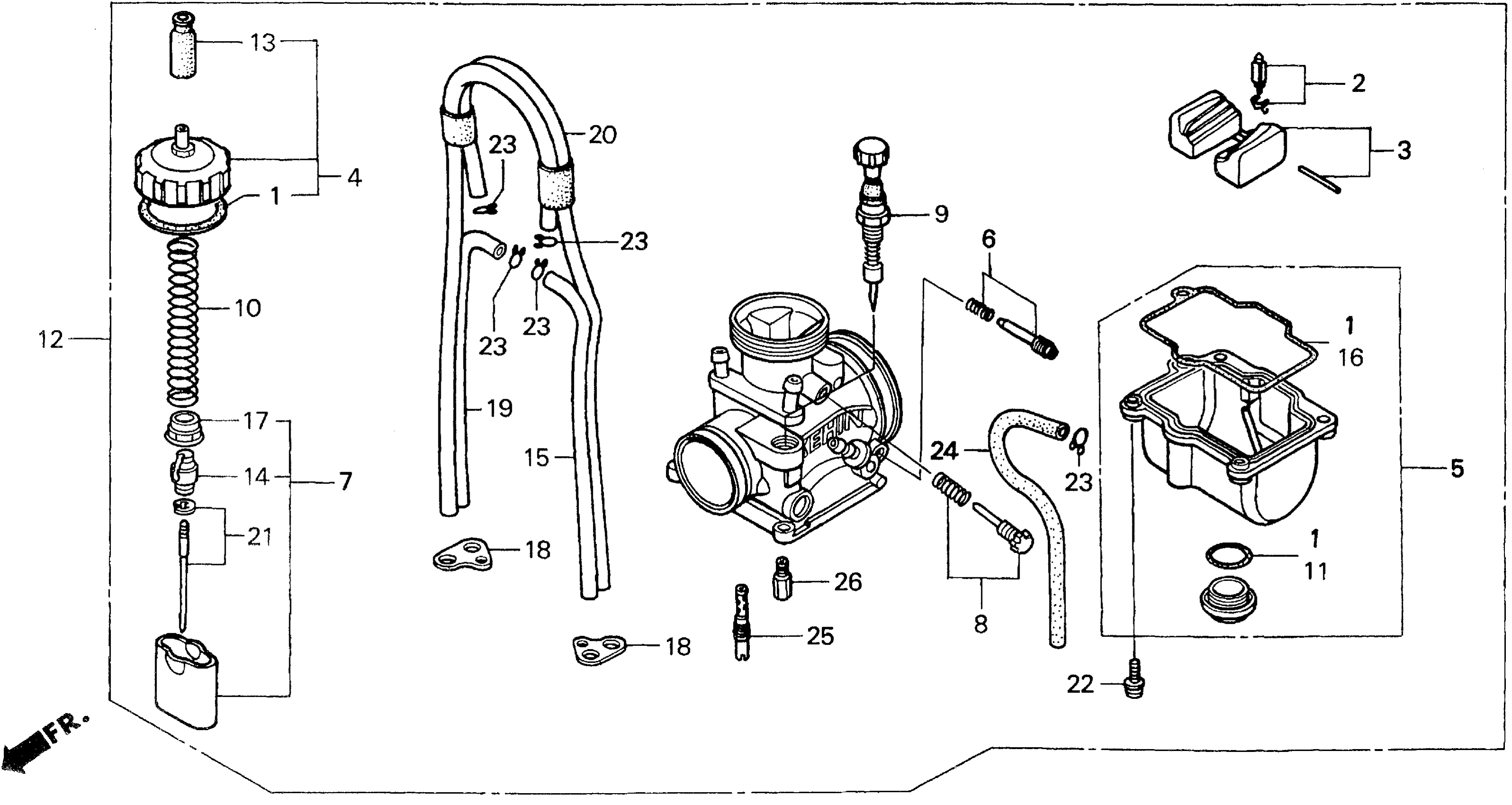

Honda CR250RA (99) MOTORCYCLE, JPN, VIN# JH2ME033-XM100001 CARBURETOR 99 Diagram

#

Description
Price

1

GASKET SET

16010-KA5-691

$46.68

2

VALVE SET, FLOAT

16011-KZ3-J11

$37.03

3

FLOAT SET This part replaces 16013-KA3-741.

16013-HA2-671

$50.15

4

TOP SET

16014-KZ3-J11

Unavailable

5

CHAMBER SET, FLOAT

16015-VM0-004

Unavailable

6

SCREW SET

16016-HA2-004

Unavailable

6

SCREW SET SCREW SET A This part replaces 16016-KZ3-J11.

16016-HA2-004

Unavailable

7

VALVE SET, THROTTLE

16022-KZ3-J11

Unavailable

8

SCREW SET B

16028-KZ3-J11

Unavailable

9

VALVE SET, STARTER

16046-KZ3-J11

Unavailable

10

SPRING, COMPRESSION COIL

16050-KZ3-J11

Unavailable

11

O-RING (2.4X18.6)

16075-GHB-B00

$4.67

12

CARBURETOR ASSY. (PWK00A A)

16100-KZ3-J11

Unavailable

13

CAP, CABLE SEALING

16118-KZ3-J11

$17.51

14

HOLDER, CABLE

16137-KZ3-J11

Unavailable

15

TUBE, AIR VENT This part replaces 16144-KZ3-J11.

16198-KZ3-P00

$4.45

15

TUBE, AIR VENT

16198-KZ3-P00

$4.45

16

GASKET, FLOAT CHAMBER

16163-KZ4-J01

Unavailable

17

COLLAR, SET

16172-KZ3-J11

Unavailable

18

BINDER

16179-KZ4-690

$9.68

19

TUBE, AIR VENT This part replaces 16198-KZ3-B10.

16198-KZ3-P00

$4.45

19

TUBE, AIR VENT

16198-KZ3-P00

$4.45

20

TUBE, AIR VENT

16199-KZ3-J11

Unavailable

21

NEEDLE SET, JET (R1370DKA)

16203-KZ3-J11

Unavailable

22

SCREW-WASHER (4X16)

93892-04016-08

$1.49

22

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

23

CLIP, TUBE (B7)

95002-02079

$1.49

24

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X330)

95003-05008-60M

$19.34

25

JET, SLOW (#42)

99103-440-0420

$13.18

26

JET, MAIN (#190)

99113-GHB-1900

$9.98
