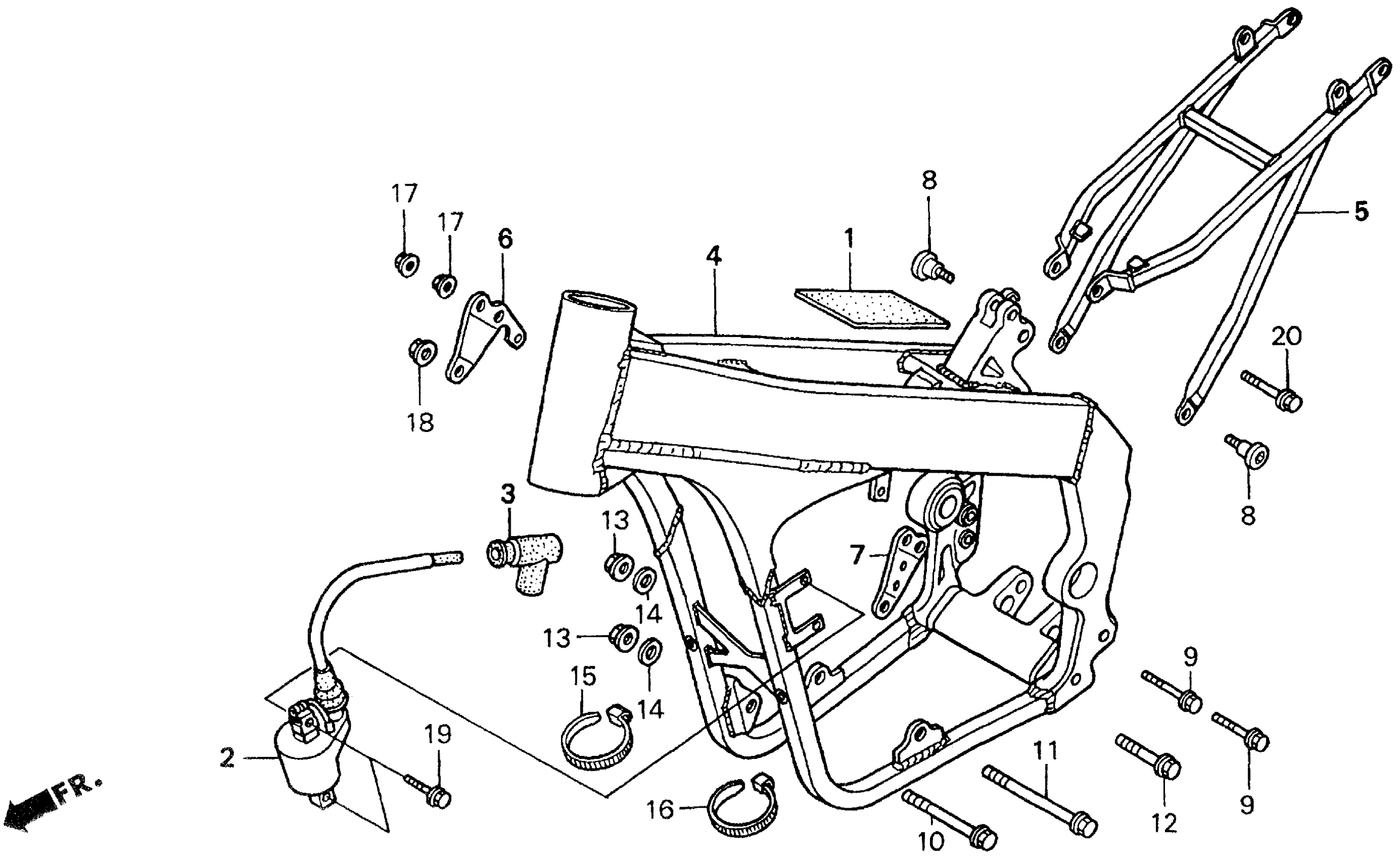

Honda CR250RA (98) MOTORCYCLE, JPN, VIN# JH2ME030-WM000001 FRAME 98-99 Diagram

#

Description
Price

1

COVER, IGNITION CONTROL MODULE

30420-KZ3-B00

Unavailable

2

COIL ASSY,IGN This part replaces 30500-KZ3-B01.

30500-GY8-901

$68.13

3

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$31.04

4

FRAME

50100-KZ3-J00

Unavailable

5

FRAME, RR.

50200-KZ3-J00

Unavailable

6

BRACKET, R. HEAD HANGER

50407-KZ3-J00

Unavailable

7

BRACKET, L. HEAD HANGER

50408-KZ3-J00

Unavailable

8

BOLT, SPECIAL (8MM)

90102-KZ3-B00

$5.13

9

BOLT, FLANGE (8X53)

90103-MM0-620

$3.89

10

BOLT, FLANGE (10X120)

90109-KZ3-B00

Unavailable

11

BOLT, FLANGE (10X135)

90111-KZ3-B00

Unavailable

12

BOLT, SOCKET (10X52) This part replaces 90131-KZ3-B00.

90153-MW0-000

Unavailable

13

NUT, AXLE (10MM)

90304-GA6-003

$2.89

14

WASHER (10MM)

90410-HC4-000

$3.81

15

BAND, WIRE

90651-KV6-003

$2.92

16

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

17

NUT, FLANGE (8MM)

94050-08000

$1.49

18

NUT, FLANGE (10MM)

94050-10000

$1.59

19

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

20

BOLT, FLANGE (8X60)

96400-08060-00

Unavailable
