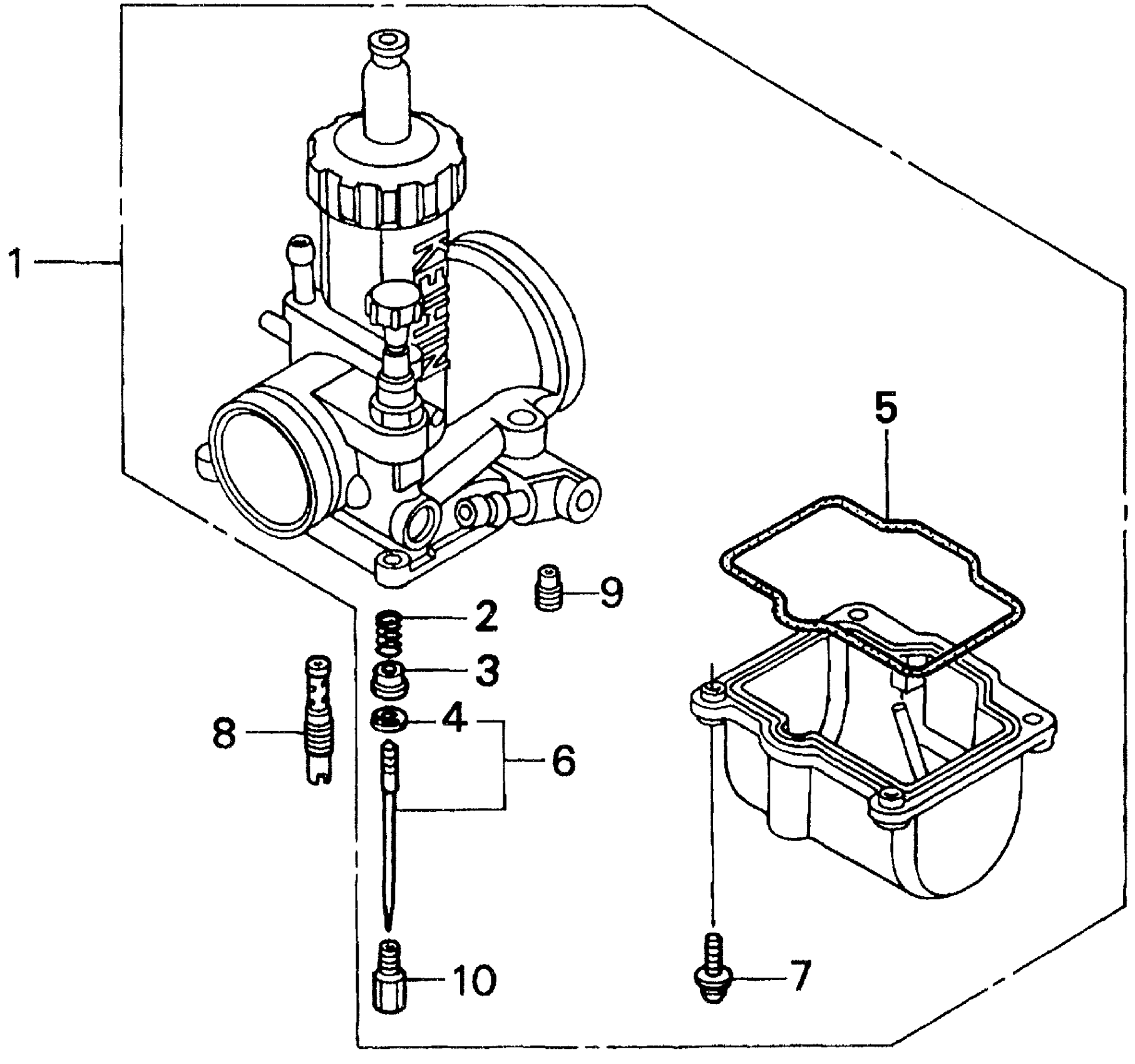

Honda CR250RA (98) MOTORCYCLE, JPN, VIN# JH2ME030-WM000001 CARBURETOR OPTIONAL KIT 97-98 Diagram

#

Description
Price

1

PARTS KIT, CARBURETOR OPTIONAL | (Optional).

16020-KZ3-B11

Unavailable

2

SPRING, COMPRESSION COIL | (Optional).

16051-KA3-761

$16.41

3

COLLAR, SPRING SETTING | (Optional).

16066-KA3-761

Unavailable

4

CLIP, BAR | (Optional).

16115-GHB-610

$2.98

4

CLIP, BAR | (Optional). This part replaces 16115-169-004.

16115-GHB-610

$2.98

5

GASKET, FLOAT CHAMBER | (Optional).

16163-KZ3-B10

Unavailable

6

NEEDLE SET, JET (R1368MS) | (Optional).

16012-KZ3-690

Unavailable

6

NEEDLE SET, JET (R1366MS) | (Optional).

16201-KZ3-690

Unavailable

6

NEEDLE SET, JET (R1367MS) | (Optional).

16202-KZ3-690

Unavailable

6

NEEDLE SET, JET (R1372MS) | (Optional).

16204-KZ3-B10

Unavailable

6

NEEDLE SET, JET (R1370MS) | (Optional).

16204-KZ3-690

Unavailable

6

NEEDLE SET, JET (R1371MS) | (Optional).

16205-KZ3-880

Unavailable

7

SCREW-WASHER (4X16) | (Optional).

93892-04016-08

$1.49

7

SCREW-WASHER (4X16) | (Optional). This part replaces 93892-04016-18.

93892-04016-08

$1.49

8

JET, SLOW (#58) | (Optional).

99103-KA3-0580

Unavailable

8

JET, SLOW (#60) | (Optional).

99103-KA3-0600

Unavailable

8

JET, SLOW (#50) | (Optional).

99103-440-0500

$15.48

8

JET, SLOW (#52) | (Optional).

99103-4400520

$13.15

8

JET, SLOW (#58) | (Optional). This part replaces 99103-440-0580.

99103-KA3-0580

Unavailable

8

JET, SLOW (#60) | (Optional). This part replaces 99103-440-0600.

99103-KA3-0600

Unavailable

9

JET, POWER (#38) | (Optional).

99105-KZ3-0380

Unavailable

9

JET, POWER (#48) | (Optional).

99105-KZ3-0480

Unavailable

10

JET, MAIN (#165) | (Optional).

99113-GHB-1650

$9.41

10

JET, MAIN (#168) | (Optional).

99113-GHB-1680

$9.41

10

JET, MAIN (#170) | (Optional). This part replaces 99113-GHB-1700.

99101-357-1700

$9.41

10

JET, MAIN (#172) JET, MAIN (#155) | (Optional). This part replaces 99113-GHB-1720.

99101-357-1720

$9.41

10

JET, MAIN (#178) | (Optional).

99113-GHB-1780

$9.41

10

JET, MAIN (#180) | (Optional).

99113-GHB-1800

$9.41

10

JET, MAIN (#182) | (Optional).

99113-GHB-1820

$9.44

10

JET, MAIN (#185) | (Optional).

99113-GHB-1850

$9.44
