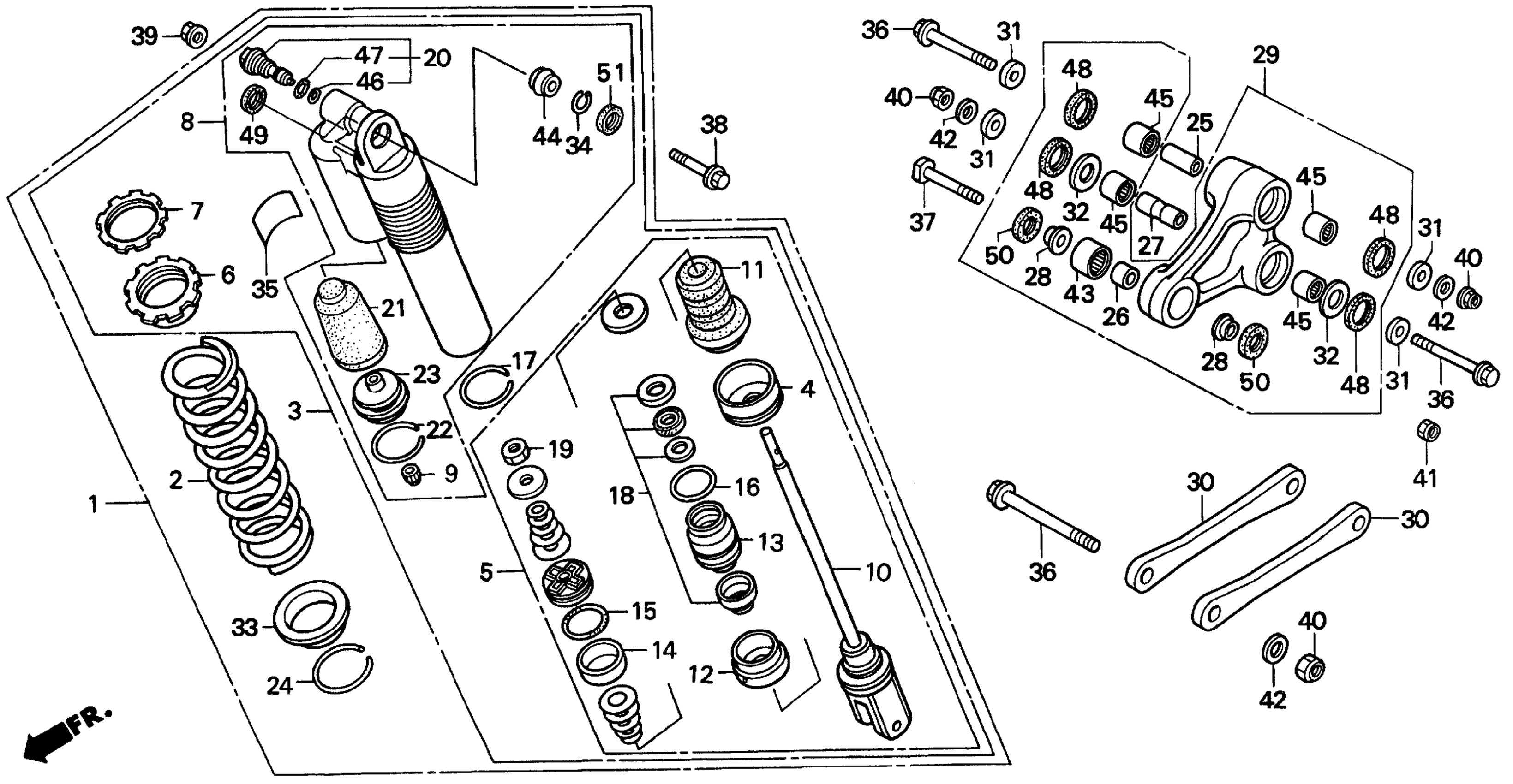

Honda CR250RA (97) MOTORCYCLE, JPN, VIN# JH2ME030-VM900001 REAR SHOCK ABSORBER 97 Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA)

52400-KZ3-B91

Unavailable

2

SPRING, RR. SHOCK ABSORBER (52.0N/MM,5.3KGF/MM) (SHOWA)

52401-KZ3-B01

Unavailable

2

SPRING, RR. SHOCK ABSORBER (5.10KGF/MM) (SHOWA) | (Optional).

52402-KZ3-B01

Unavailable

2

SPRING, RR. SHOCK ABSORBER (53.9N/MM,5.5KGF/MM) (SHOWA) | (Optional).

52403-KZ3-B01

Unavailable

3

DAMPER, RR. (SHOWA)

52410-KZ3-B91

Unavailable

4

STOPPER, SPRING SEAT

52419-KZ3-B01

Unavailable

5

ROD, PISTON

52421-KZ3-B91

Unavailable

6

ADJUSTER, SPRING

52422-KS7-701

$33.79

7

NUT, ADJUSTER

52423-KS7-701

$26.16

8

CASE, SHOCK ABSORBER

52425-KZ3-B91

Unavailable

9

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.94

10

ROD

52426-KZ3-B01

Unavailable

11

RUBBER, STOPPER

52427-KZ3-891

$19.01

12

PLATE, END

52428-KZ3-B01

Unavailable

13

CASE, ROD GUIDE

52429-KZ3-B01

Unavailable

14

RING, PISTON

52431-KZ3-B01

Unavailable

15

O-RING (39.5X2.0)

52432-KZ3-861

$3.15

16

O-RING (39.7X3.5)

52434-KZ3-861

$6.15

17

RING, STOPPER (SHOWA)

52435-KZ3-861

Unavailable

18

OIL SEAL SET

52436-KZ3-305

$45.82

19

NUT, HEX. (12MM)

52438-KA4-741

$2.92

20

ADJUSTER, COMPRESSION DAMPING FORCE

52440-KZ3-B11

Unavailable

21

BLADDER

52451-KZ3-891

$18.54

22

RING, STOPPER

52452-KS7-831

$2.90

23

CAP, CHAMBER

52453-KS7-831

Unavailable

24

RING, STOPPER (SHOWA)

52455-MM5-003

Unavailable

25

COLLAR C, CUSHION ARM

52463-KZ3-B00

Unavailable

26

COLLAR D, CUSHION

52463-KZ4-B00

$3.27

27

COLLAR B, CUSHION ARM

52464-KZ3-B00

Unavailable

28

COLLAR D, CUSHION SIDE

52464-KZ4-B00

$3.83

29

ARM SET, CUSHION

52465-KZ3-B00

Unavailable

30

ROD, SHOCK CONNECTING

52471-KZ3-B00

Unavailable

31

COLLAR, CONNECTING ROD SIDE

52475-KZ3-860

$13.39

32

WASHER, THRUST

52476-KZ3-860

$11.62

33

SEAT, SPRING

52486-KZ3-003

Unavailable

34

RING, STOPPER

52487-KA4-831

$3.92

35

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

36

BOLT, LINK (15X96)

90130-KZ3-B00

Unavailable

37

BOLT, CUSHION (LOWER) (10X43.5)

90153-KZ4-710

$9.38

38

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

39

NUT, U (10MM)

90304-GE8-003

$3.67

40

NUT, HEX. (12MM) This part replaces 90306-KBP-901.

90306-GAB-711

$9.10

41

NUT, U (10MM)

90306-KZ4-711

$3.74

42

WASHER, PLAIN (12MM)

90504-SF4-000

$6.45

43

BEARING, NEEDLE (19X26X15)

91074-KZ4-B01

$21.68

44

BEARING, SPHERICAL (10)

91074-MAC-741

$35.03

45

BEARING, NEEDLE (22X28X16)

91078-KZ3-731

$32.95

46

O-RING (21.5X1.5)

91256-KZ3-731

$2.84

47

O-RING (26.2X1.9)

91257-KZ3-891

$3.38

48

DUST SEAL (27X34X4)

91261-KZ3-861

$7.79

49

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.87

50

DUST SEAL (17X26X3)

91351-KZ4-B01

$4.17

51

DUST SEAL (16X26X3)

91351-MAC-671

$5.78
