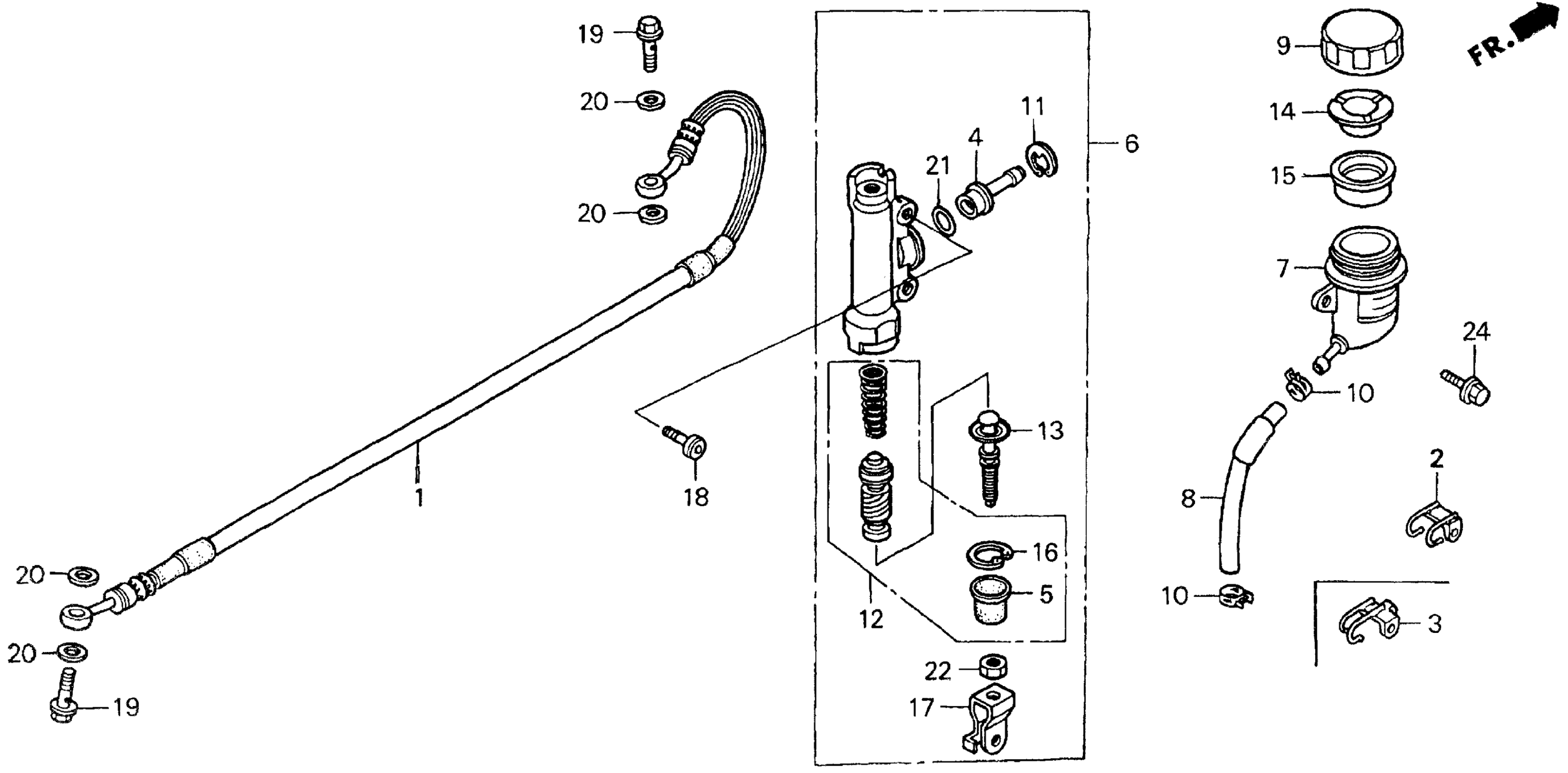

Honda CR250RA (97) MOTORCYCLE, JPN, VIN# JH2ME030-VM900001 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE

43125-KZ3-B01

Unavailable

CLAMP, MASTER CYLINDER HOSE

43469-KZ3-B00

Unavailable

CONNECTOR

43503-KZ3-B01

$10.05

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-KZ3-B01

Unavailable

CUP, MASTER CYLINDER OIL

43511-KS6-702

$25.90

HOSE, RR. MASTER CYLINDER

43512-KZ3-B01

Unavailable

CAP, MASTER CYLINDER

43513-KS6-701

$14.57

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.81

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

ROD, PUSH (NISSIN)

43530-KS7-831

$28.93

PLATE, DIAPHRAGM

45518-GM9-711

$4.48

DIAPHRAGM

45520-GM9-711

$9.15

CIRCLIP

46182-500-013

$4.90

JOINT, BRAKE ROD

46504-KV6-702

$7.84

BOLT, FR. DISK COVER

90114-MAC-780

$3.10

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

NUT, HEX. (8MM)

94002-08000-0S

$1.49

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
