Partiron

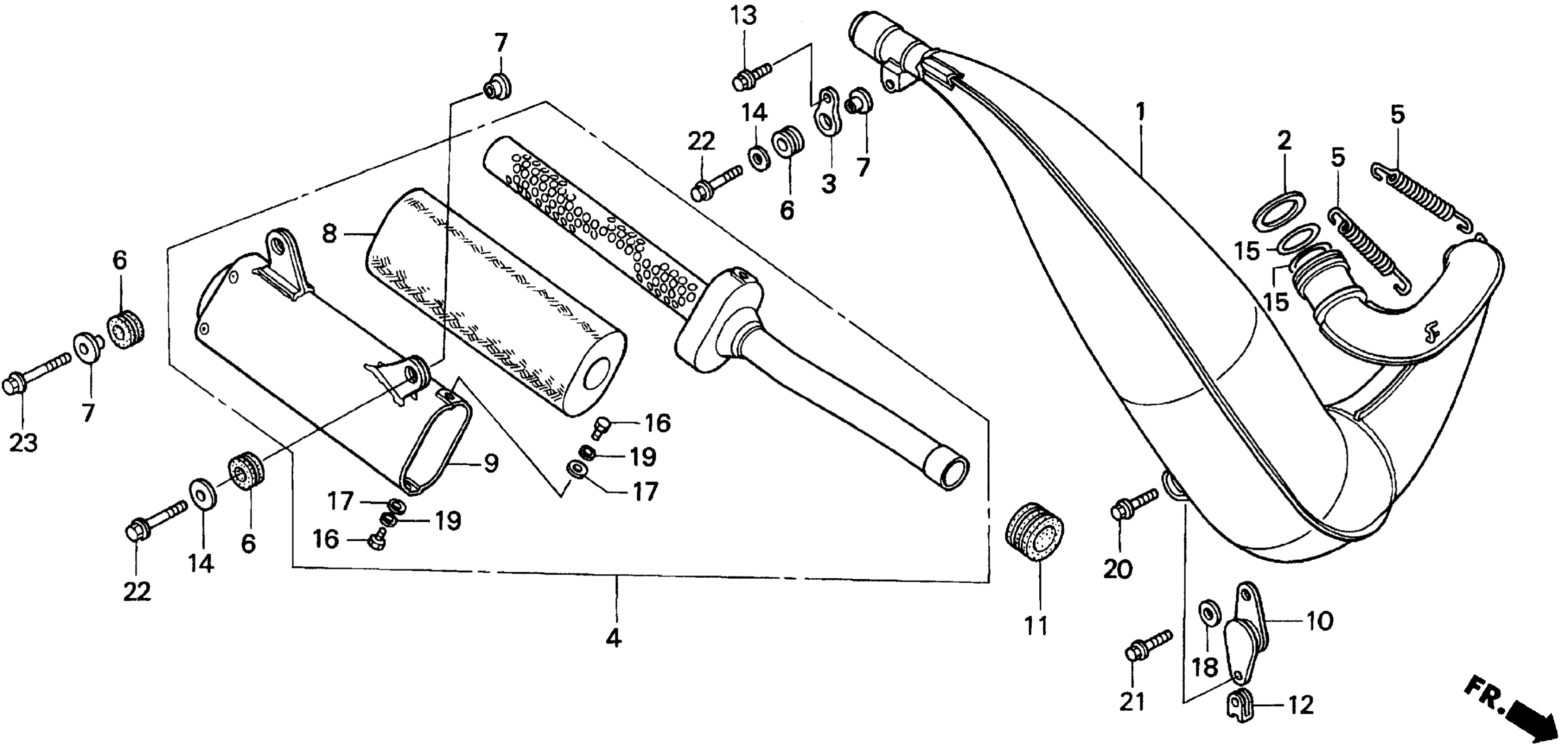

Honda CR250RA (97) MOTORCYCLE, JPN, VIN# JH2ME030-VM900001 MUFFLER Diagram

#

Description
Price

1

MUFFLER, EX.

18300-KZ3-B00

Unavailable

2

WASHER (42X47.5)

18309-KZ3-600

$8.82

3

STAY, RR. CHAMBER

18325-KS6-000

$20.67

4

MUFFLER

18330-KZ3-B10

Unavailable

5

SPRING, EX. PIPE

18332-KZ3-710

$7.27

6

RUBBER, MUFFLER

18334-KA3-830

$3.71

7

COLLAR, MUFFLER SETTING

18336-KS6-700

$5.35

8

WOOL, GLASS

18340-KZ3-680

Unavailable

9

BODY, MUFFLER This part replaces 18350-KZ3-B10.

18350-KZ3-L10

Unavailable

10

STAY, CHAMBER

18355-KZ3-B00

$20.73

11

RUBBER, MUFFLER CONNECTING PIPE

18365-KA4-730

$18.09

12

NUT, CLIP (6MM)

80105-KC5-000

$4.96

13

BOLT-WASHER (6X16)

90102-KS6-000

$8.45

14

WASHER, FENDER MOUNTING

90506-430-000

$2.75

15

O-RING (43X3)

91304-KZ3-890

$12.34

16

BOLT, RECESSED (5X10)

92301-05010-0A

Unavailable

17

WASHER, PLAIN (5MM)

94101-05000

$0.91

18

WASHER, PLAIN (6MM)

94103-06000

Unavailable

19

WASHER, SPRING (5MM)

94111-05000

$1.04

20

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

21

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

22

BOLT, FLANGE (6X25)

96001-06025-00

$2.63

23

BOLT, FLANGE (6X28)

96001-06028-00

$2.75
