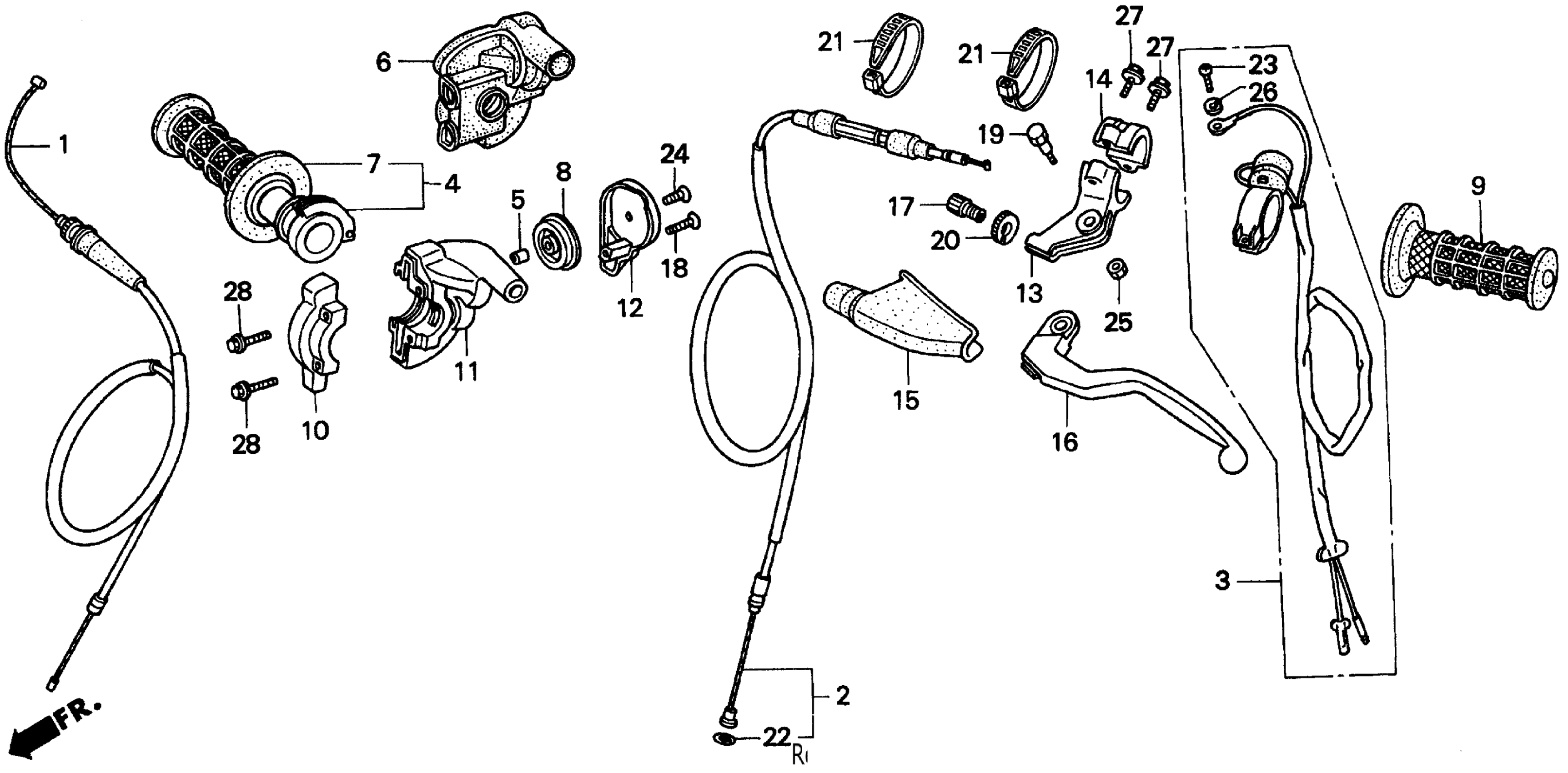

Honda CR250RA (97) MOTORCYCLE, JPN, VIN# JH2ME030-VM900001 HANDLE + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-KZ3-B00

Unavailable

2

CABLE, CLUTCH

22870-KZ3-B00

Unavailable

3

SWITCH ASSY., STOP This part replaces 35130-KZ4-B01.

35130-KZ3-860

$44.30

4

GRIP, THROTTLE

53140-MAC-680

$21.71

5

COLLAR B, HOUSING

53163-MAC-670

$8.55

6

COVER, THROTTLE HOUSING

53164-MAC-680

$30.45

7

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

8

ROLLER, THROTTLE CABLE

53166-ML3-600

$7.61

9

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

10

HOUSING A, GRIP

53167-MAC-680

Unavailable

11

HOUSING B, GRIP

53168-ML3-600

Unavailable

12

COVER B, HOUSING

53169-ML3-600

Unavailable

13

BRACKET, L. HANDLE LEVER

53172-KAE-730

$34.90

14

HOLDER, L. LEVER BRACKET

53174-KCE-670

$13.46

15

COVER, L. HANDLE LEVER

53177-430-000

$11.00

16

LEVER, L. HANDLEBAR

53178-MAC-740

$19.97

17

BOLT, CABLE ADJUSTING

53192-KA4-710

$10.51

18

SCREW, OVAL (4X25) This part replaces 90114-ML3-600.

93700-04025-0G

$2.18

18

SCREW, OVAL (4X25)

93700-04025-0G

$2.18

19

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

20

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

20

NUT, FIXING

90321-KF0-000

$9.76

21

BAND, WIRE

90650-KV6-003

$3.12

22

O-RING (5.8X1.9)

91357-KA4-004

$2.48

23

SCREW, PAN (4X12)

93500-04012-0A

$1.49

23

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

24

SCREW, OVAL (4X20)

93700-04020-0G

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

WASHER, SPRING (4MM)

94111-04000

$1.49

27

BOLT, FLANGE (6X22)

96001-06022-02

$2.46

28

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
