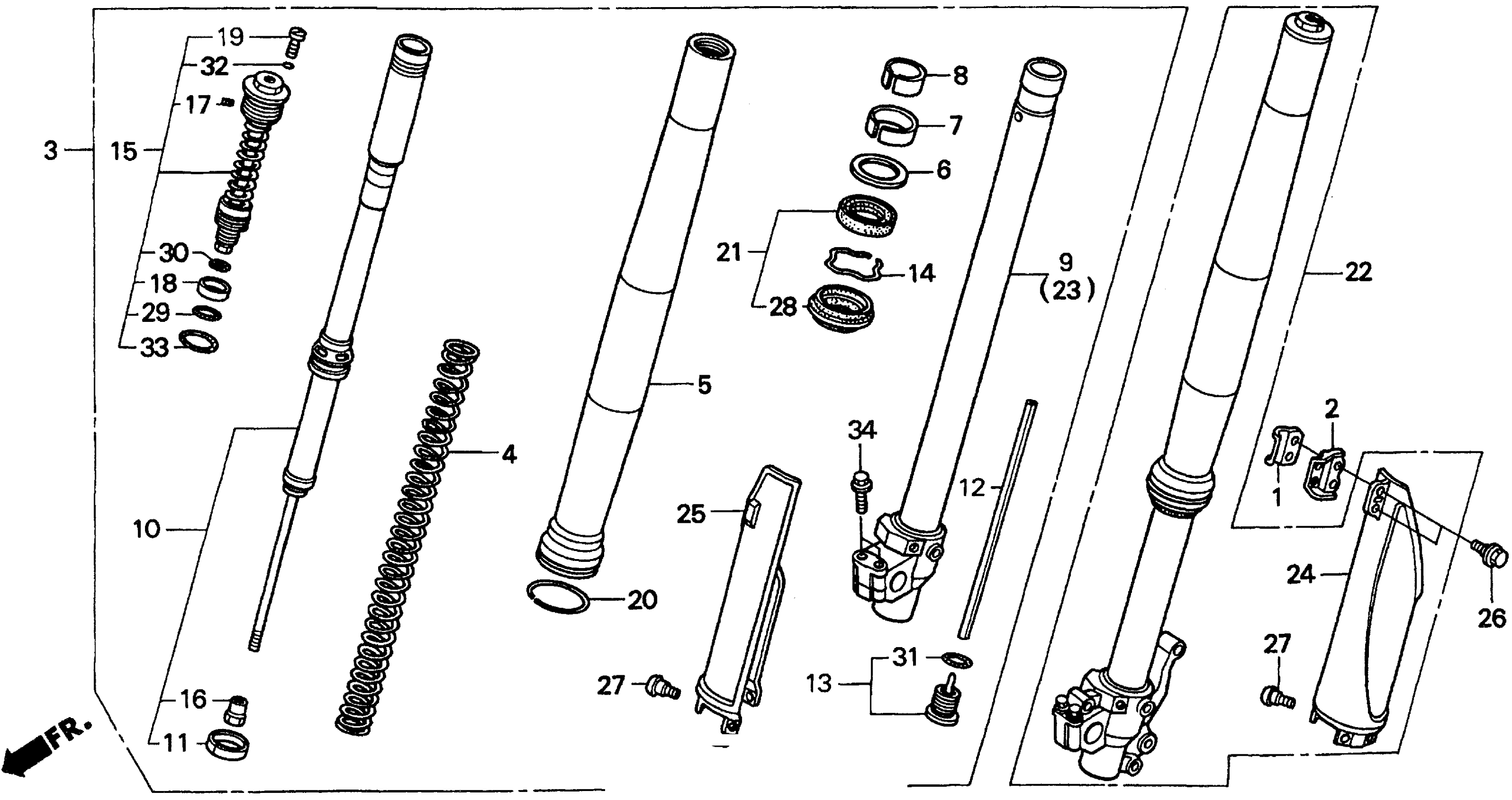

Honda CR250RA (97) MOTORCYCLE, JPN, VIN# JH2ME030-VM900001 FRONT FORK 97 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

3

FORK ASSY., R. FR. *TNATURAL* (SHOWA) (NATURAL)

51400-KZ3-B91ZA

Unavailable

4

SPRING, FR. FORK (3.29N/MM,0.40KGF/MM) (SHOWA)

51401-KZ3-B01

Unavailable

4

SPRING, FR. FORK (4.12N/MM,0.42KGF/MM) (SHOWA) | (Optional).

51402-KZ3-B01

Unavailable

4

SPRING, FR. FORK (3.37N/MM,0.38KGF/MM) (SHOWA) | (Optional).

51403-KZ3-B01

$72.79

5

TUBE (OUTER)

51410-KZ3-A71

Unavailable

5

TUBE (OUTER) This part replaces 51410-KZ3-B01.

51410-KZ3-A71

Unavailable

6

RING, BACK-UP

51412-KZ3-B01

$10.12

7

BUSH, GUIDE

51414-KZ3-B01

$16.80

8

BUSH, SLIDER

51415-KZ3-B01

$9.66

9

PIPE, R. SLIDE

51420-KZ3-B01

Unavailable

10

DAMPER, FR. (SHOWA)

51430-KZ3-B91

Unavailable

11

BUSH B, SLIDER

51431-KZ3-B01

$9.66

12

COLLAR, REBOUND NEEDLE

51437-KZ3-B01

Unavailable

13

BOLT, CENTER

51441-KZ3-B01

Unavailable

14

RING, OIL SEAL STOPPER

51447-KZ3-003

$5.12

15

BOLT ASSY., FR. FORK

51450-KZ3-B91

Unavailable

16

NUT, LOCK

51451-KZ3-B01

$15.36

17

SOCKET SET, HEX. SCREW

51452-KZ3-B01

Unavailable

18

BUSH C, SLIDER

51453-KZ3-B01

$6.54

19

BOLT, PLUG This part replaces 51456-KZ3-711.

51456-KZ3-J41

$6.21

20

RING, WEAR

51476-KZ3-711

$5.83

21

SEAL SET, FR. FORK

51490-KZ3-B01

$35.70

22

FORK ASSY., L. FR. *TNATURAL* (SHOWA) (NATURAL)

51500-KZ3-B91ZA

Unavailable

23

PIPE, L. SLIDE

51520-KZ3-B01

Unavailable

24

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL) This part replaces 51610-MAC-780ZA.

51610-MAC-781ZA

Unavailable

24

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51610-MAC-781ZA

Unavailable

25

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL) This part replaces 51620-MAC-780ZA.

51620-MAC-781ZA

Unavailable

25

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51620-MAC-781ZA

Unavailable

26

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

27

BOLT, PROTECTOR

90113-MAC-780

$3.53

28

DUST SEAL

91254-KZ3-B01

Unavailable

29

O-RING (25.7X3.5)

91256-KZ3-B01

Unavailable

30

O-RING (18.5X1.5)

91257-KZ3-B01

Unavailable

31

O-RING (18.8X1.9)

91258-KZ3-B01

$2.72

32

O-RING (3.5X1.5)

91301-KZ3-711

$2.70

33

O-RING (44.7X2.4)

91356-KZ3-003

$3.92

34

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

34

BOLT, FLANGE (8X40) This part replaces 96300-08040-08.

95701-08040-08

$2.28
