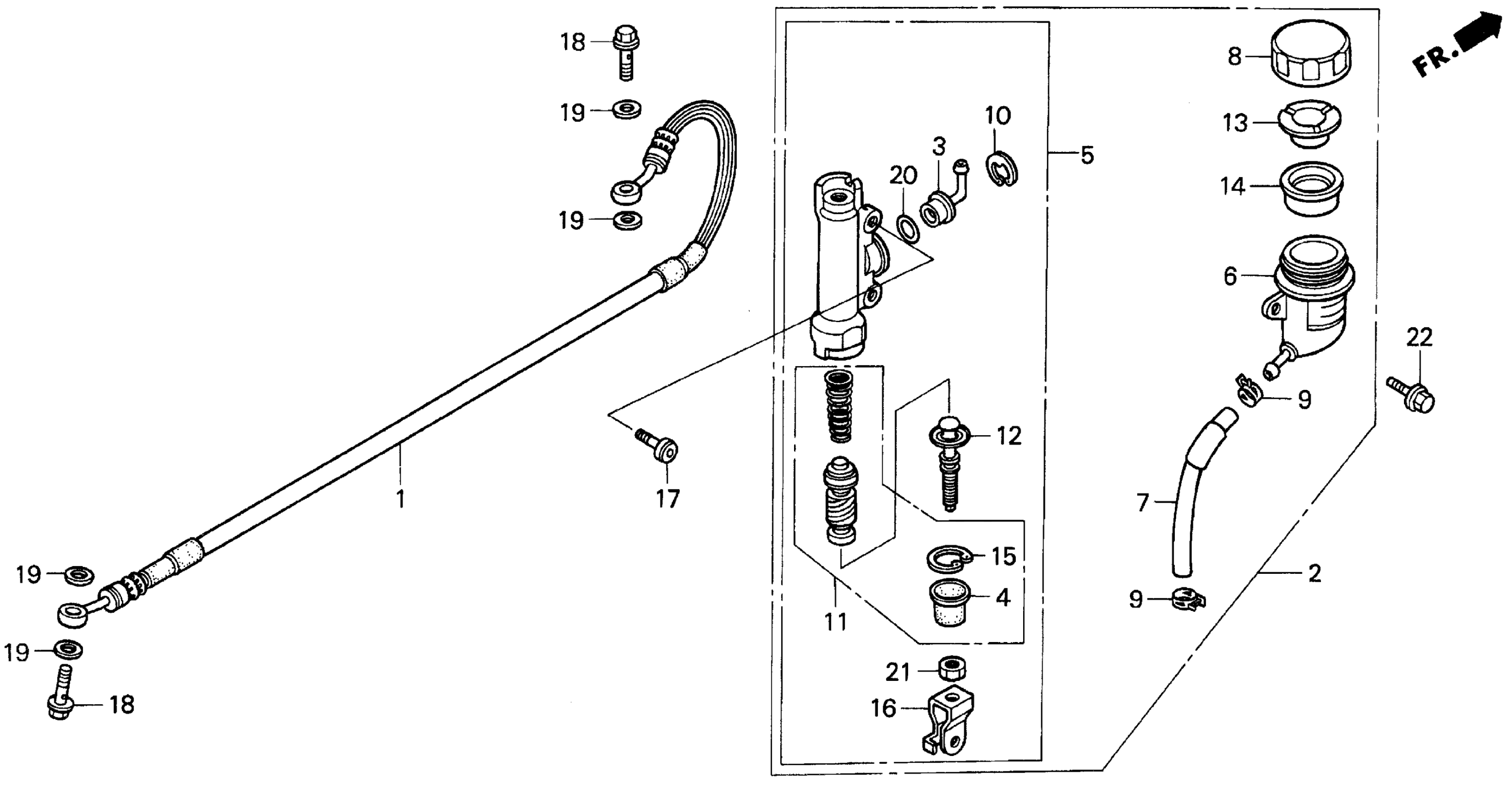

Honda CR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME030-SM700007 RR. BRAKE MASTER CYL. Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43125-KZ3-601

Unavailable

3

CONNECTOR, MASTER CYLINDER (NISSIN)

45503-KV3-006

$9.39

4

BOOT

43504-MB2-006

$10.04

5

MASTER CYLINDER SUB-ASSY., RR. BRAKE This part replaces 43510-KZ3-600.

43510-KZ3-601

Unavailable

5

MASTER CYLINDER SUB-ASSY., RR. BRAKE

43510-KZ3-601

Unavailable

6

CUP, MASTER CYLINDER OIL

43511-KS6-702

$25.90

7

HOSE, OIL (NISSIN)

43512-KZ3-861

Unavailable

8

CAP, MASTER CYLINDER

43513-KS6-701

$14.57

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

10

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.81

11

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

12

ROD, PUSH (NISSIN)

43530-KS7-831

$28.93

13

PLATE, DIAPHRAGM

45518-GM9-711

$4.48

14

DIAPHRAGM

45520-GM9-711

$9.15

15

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.90

16

JOINT, BRAKE ROD

46504-KV6-702

$7.84

17

BOLT, RR. MASTER CYLINDER

90109-ML3-840

$6.69

18

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

O-RING (14.8X2.4)

91212-422-006

$2.56

21

NUT, HEX. (8MM)

94002-08000-0S

$1.49

22

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
