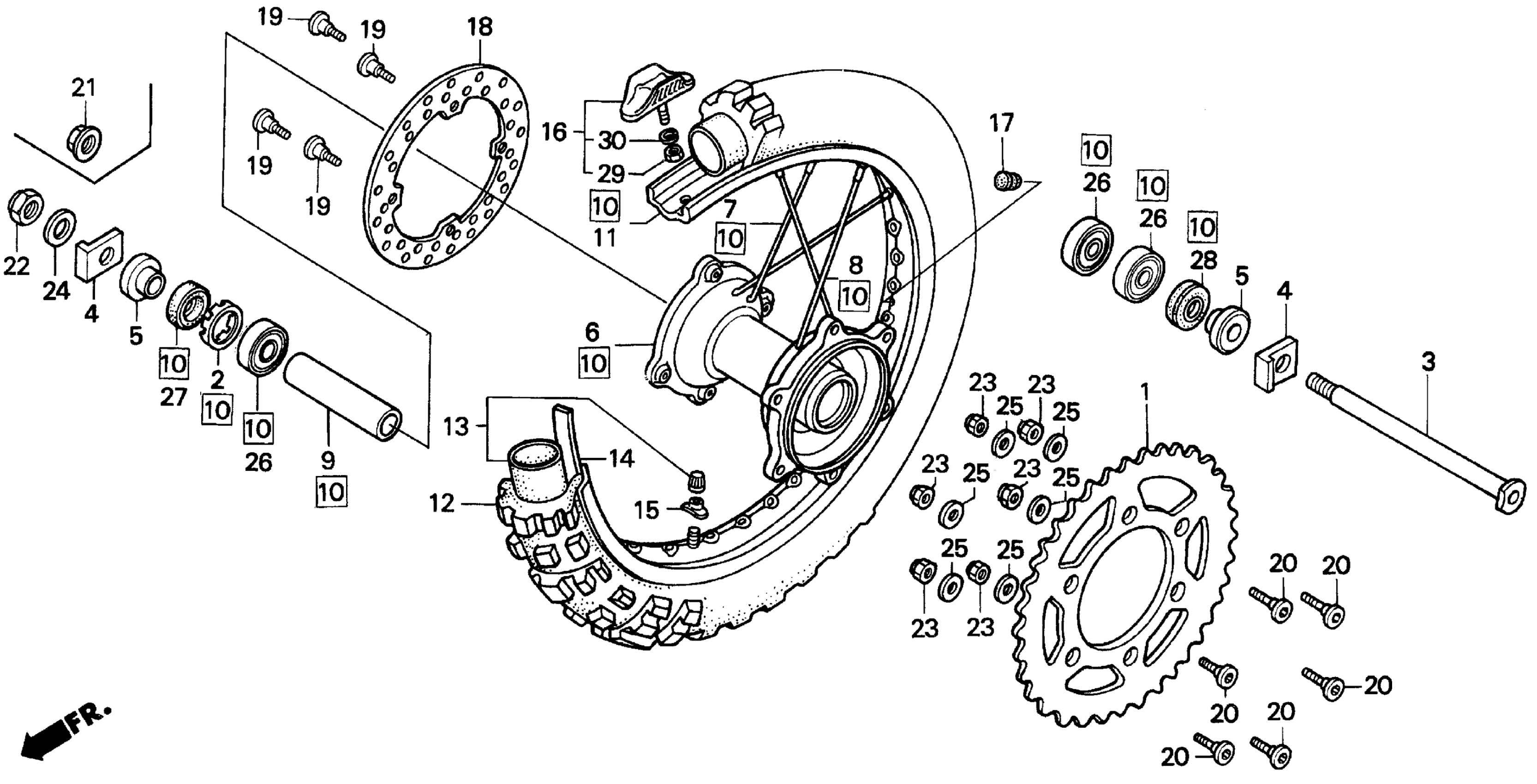

Honda CR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME030-SM700007 REAR WHEEL 92-96 Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (49T) This part replaces 41201-ML3-791.

41201-KZ3-J40

$122.82

1

SPROCKET, FINAL DRIVEN (47T) | (Optional).

41202-ML3-811

$136.16

1

SPROCKET, FINAL DRIVEN (49T) (STEEL) | (Optional).

41204-ML3-505

Unavailable

1

SPROCKET, FINAL DRIVEN (49T) (STEEL) | (Optional). This part replaces 41204-ML3-810.

41204-ML3-505

Unavailable

1

SPROCKET, FINAL DRIVEN (51T) | (Optional). This part replaces 41201-KZ4-711.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) | (Optional). This part replaces 41202-KZ3-B00.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) | (Optional). This part replaces 41202-KZ4-J20.

41201-MEY-000

$115.77

2

RETAINER, RR. WHEEL BEARING

41231-KZ4-000

$27.90

3

AXLE, RR. WHEEL

42301-KZ3-600

Unavailable

4

COLLAR, RR. AXLE

42306-KZ3-600

Unavailable

5

COLLAR, RR. WHEEL SIDE

42311-KZ3-600

$29.61

6

HUB, RR. WHEEL

42601-MAC-680

Unavailable

7

SPOKE SET A, RR. (210.0MM)

04420-KZ3-600

Unavailable

8

SPOKE SET B, RR. (207.0MM)

04421-KZ3-600

Unavailable

9

COLLAR, RR. DISTANCE

42620-ML3-681

Unavailable

10

WHEEL SUB-ASSY., RR.

42650-KZ3-600

Unavailable

11

RIM, RR. WHEEL (2.15X19) (RK EXCEL)

42701-KZ3-602

Unavailable

12

TIRE, RR. (110/90-19) (DN K695) (DUNLOP)

42711-KZ3-611

Unavailable

13

TUBE, TIRE (110/90-19) (DUNLOP)

42712-KZ3-611

$42.74

14

BAND, TIRE RIM (DUNLOP)

42713-KZ3-611

$5.90

15

CAP, VALVE

42714-KA3-710

$10.46

16

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

17

CAP, RIM HOLE

42717-329-000

$4.21

18

DISK, RR. BRAKE

43351-ML3-790

Unavailable

19

BOLT, DISK (8X22)

90105-MK5-010

$4.94

20

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

22

NUT, U (18MM) This part replaces 90305-KZ4-890.

90305-KZ4-891

$15.83

22

NUT, U (18MM)

90305-KZ4-891

$15.83

23

NUT, U (8MM)

90309-ML3-791

$4.35

24

WASHER (18X32X2)

90401-KZ4-890

$4.48

25

WASHER (8MM)

90465-MC4-000

$2.51

26

BEARING, RADIAL BALL (6004)

91062-KS6-831

$31.72

27

DUST SEAL (28X38X7)

91251-KZ4-003

$10.15

28

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-712.

91257-MAY-003

$9.16

28

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$9.16

28

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$9.16

29

NUT, HEX. (8MM)

94001-08000-0S

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49
