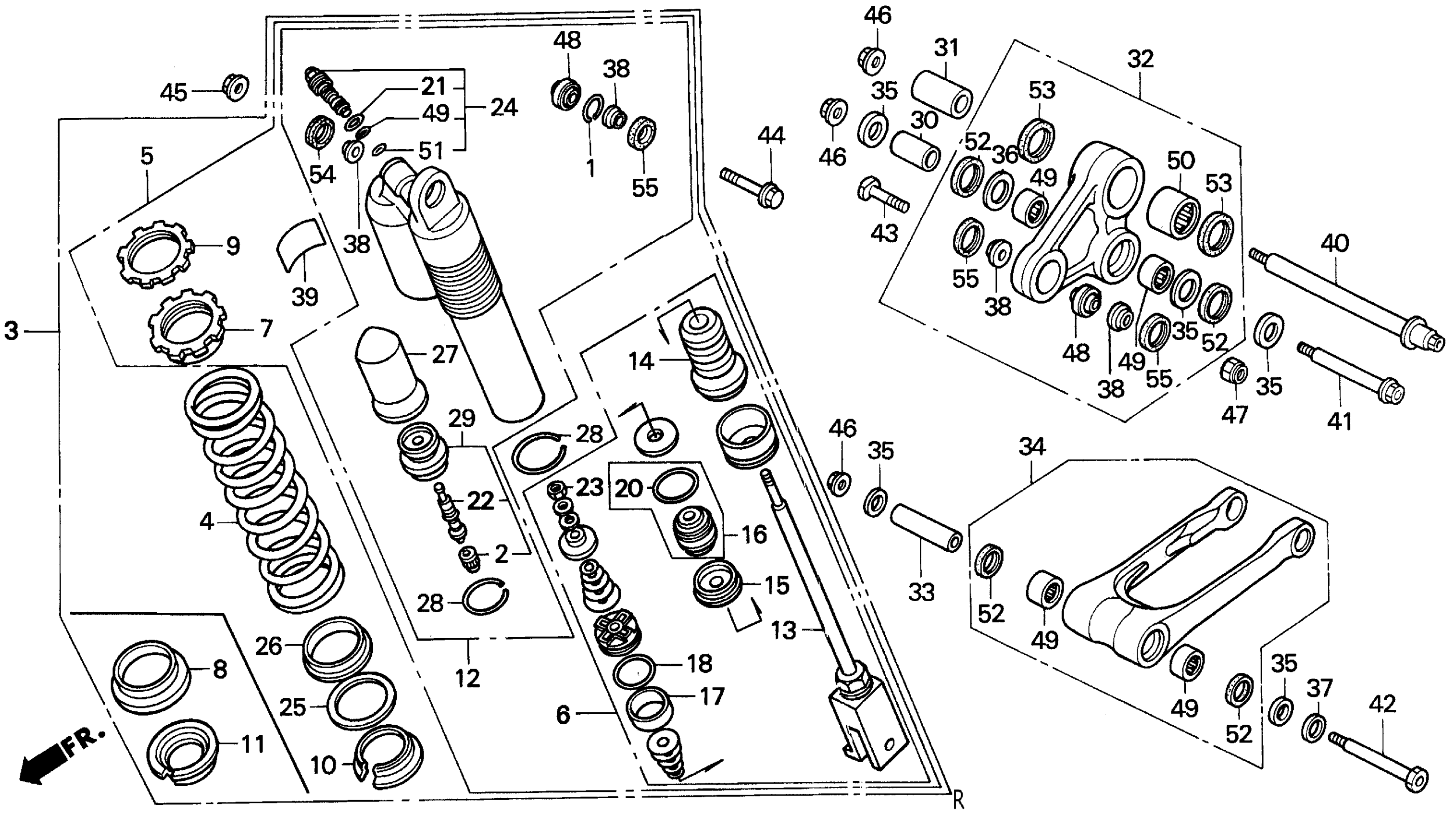

Honda CR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME030-SM700007 REAR SHOCK ABSORBER 95-96 Diagram

#

Description
Price

1

RING, STOPPER

41405-HA7-670

$2.97

2

CAP, AIR VALVE

51453-KK0-004

$4.46

3

SHOCK ABSORBER ASSY., RR. (KAYABA)

52400-KZ3-611

Unavailable

4

SPRING, RR. SHOCK ABSORBER (55N/MM,5.6KGF/MM)

52401-MAC-681

Unavailable

4

SPRING, RR. SHOCK ABSORBER (5.8KGF/MM) | (Optional).

52402-MAC-681

Unavailable

4

SPRING, RR. SHOCK ABSORBER (53N/MM,5.4KGF/MM) | (Optional).

52403-MAC-681

Unavailable

5

DAMPER, RR. (KAYABA)

52410-KZ3-611

Unavailable

6

ROD, PISTON

52421-KZ3-611

Unavailable

7

SEAT, SPRING (UPPER) (KAYABA)

52422-KS6-701

Unavailable

9

NUT, ADJUSTER (KAYABA)

52423-KS6-701

Unavailable

10

SEAT, SPRING (LOWER) (KAYABA)

52424-KS6-701

Unavailable

12

CASE ASSY., SUB

52425-KZ3-611

Unavailable

13

ROD

52426-KZ3-601

Unavailable

14

RUBBER, BUMPER

52427-KZ4-901

$13.93

15

CAP, CASE

52428-KZ4-901

Unavailable

16

CASE, ROD GUIDE

52429-KZ4-901

$29.15

17

RING, PISTON

52431-MAC-681

$14.02

18

O-RING (37.5X2.0)

52432-KZ4-901

$4.46

19

O-RING (21.5X1.5)

52433-MAC-681

Unavailable

20

O-RING (39.7X3.5)

52434-KZ4-901

Unavailable

21

O-RING (21.9X2.0)

52435-MAC-681

Unavailable

22

CORE, VALVE

52437-KA3-731

Unavailable

23

NUT, HEX. (12MM)

52438-KA3-731

$3.10

24

ADJUSTER, COMPRESSION DAMPING FORCE

52440-MAC-681

Unavailable

25

WASHER, SPRING SEAT (KAYABA)

52445-KA3-831

Unavailable

26

WASHER, SPRING SEAT

52445-KT1-671

Unavailable

27

BLADDER

52451-KZ4-901

$24.72

28

RING, SNAP (KAYABA)

52452-KZ4-003

Unavailable

29

CAP, BLADDER

52453-KZ4-003

Unavailable

30

COLLAR, CUSHION ARM

52464-KZ3-860

Unavailable

31

COLLAR, CUSHION ARM

52464-KZ4-710

Unavailable

32

ARM SET, CUSHION

52465-KZ3-600

Unavailable

33

COLLAR, CONNECTING ROD

52473-KZ3-860

Unavailable

34

ROD SET, RUBBER CONNECTING

52475-KZ3-600

Unavailable

35

COLLAR, CONNECTING ROD SIDE

52475-KZ3-860

$13.39

36

WASHER, THRUST

52476-KZ3-860

$11.62

37

COLLAR (15.2X24X3.5)

52477-KZ4-710

Unavailable

38

COLLAR, SHOCK PIVOT

52486-ML3-790

Unavailable

39

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

40

BOLT, RUBBER ARM PIVOT

90128-KZ4-710

Unavailable

41

BOLT, RUBBER ARM (15X87) (TSUKIBOSHI)

90129-KZ3-861

Unavailable

42

BOLT, RUBBER CONNECTING ROD (15X113)

90130-KZ4-710

Unavailable

43

BOLT, RUBBER (LOWER) (10X43.5)

90153-KZ4-710

$9.38

44

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

45

NUT, AXLE (10MM)

90304-GA6-003

$2.89

46

NUT, U (14MM)

90305-GE8-003

$3.86

46

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

47

NUT, U (10MM)

90306-KZ4-711

$3.74

48

BEARING, SPHERICAL (10)

91074-MAC-681

Unavailable

49

BEARING, NEEDLE (22X28X16)

91078-KZ3-731

$32.95

50

BEARING, NEEDLE (25X32X26)

91078-KZ4-711

Unavailable

51

O-RING (21.8X2.4)

91256-KZ4-711

$6.09

52

DUST SEAL (27X34X4)

91261-KZ3-861

$7.79

53

DUST SEAL (25X32X4)

91262-KZ3-731

$7.50

54

DUST SEAL, SHOCK

91351-KZ3-731

$4.87

55

DUST SEAL, SHOCK (16X26X3)

91351-MAC-671

$5.78
