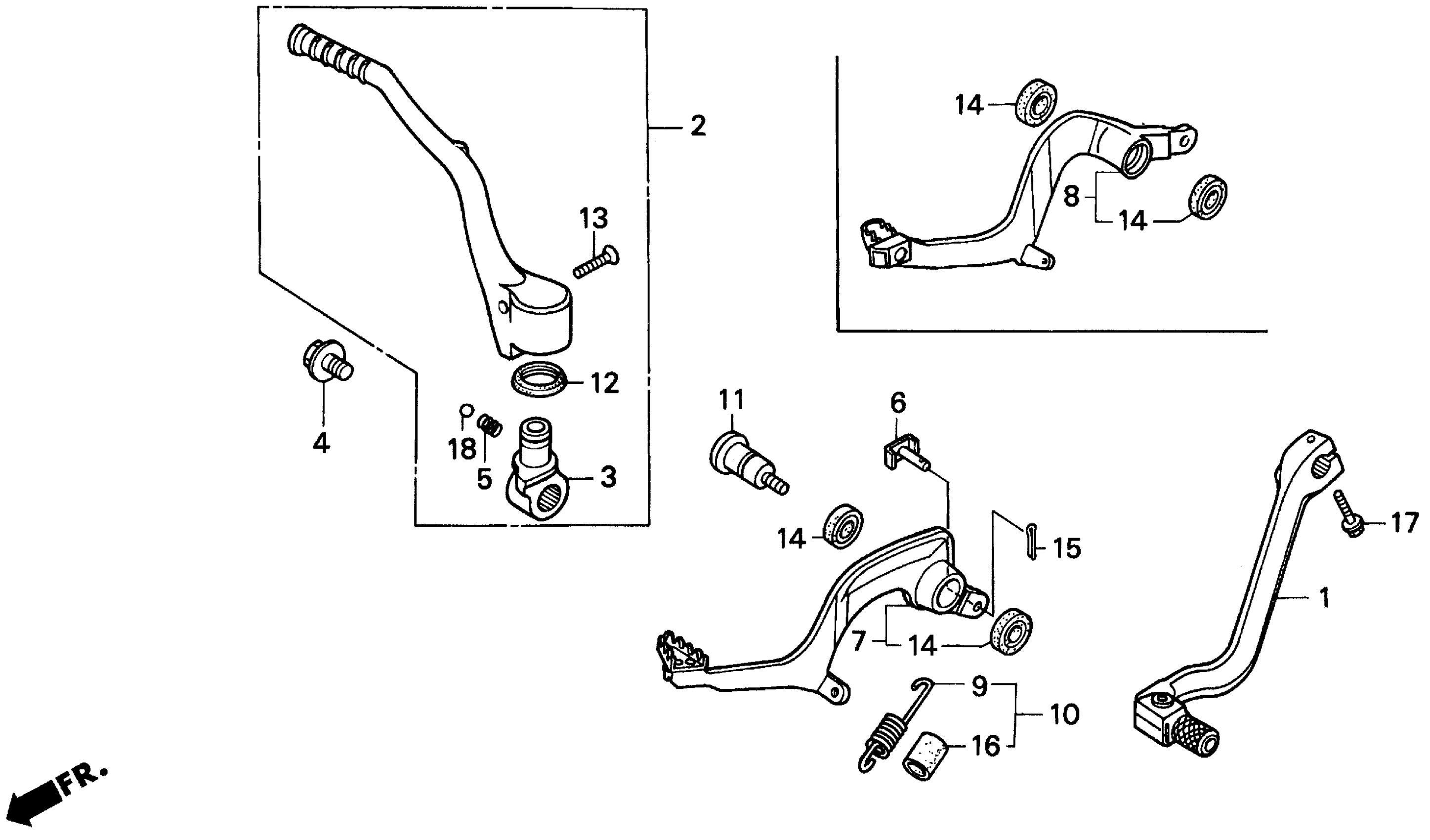

Honda CR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME030-SM700007 PEDAL Diagram

PEDAL, CHANGE This part replaces 24700-KZ3-710.

24700-KZ3-J20

Unavailable

ARM ASSY., KICK STARTER This part replaces 28300-KZ3-600.

28300-KZ3-A10

Unavailable

ARM ASSY., KICK STARTER

28300-KZ3-A10

Unavailable

JOINT, KICK ARM

28302-KZ3-860

Unavailable

BOLT, KICK JOINT

28306-KAE-000

$11.89

SPRING, KICK STARTER

28333-KK0-000

$2.51

PIN D, JOINT

95015-54000

$4.24

PEDAL, RR. BRAKE

46510-KZ3-710

Unavailable

SPRING ASSY., BRAKE PEDAL

46512-KZ4-710

Unavailable

SHAFT, BRAKE PIVOT

46513-KZ3-600

$16.25

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

BOLT, KICK ARM

90101-MAC-680

$5.92

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

PIN, COTTER (2.0X12)

94201-20120

$1.49

BULK HOSE, VINYL (13X15X8000) (13X15X50)

95003-43008-10M

$60.69

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
