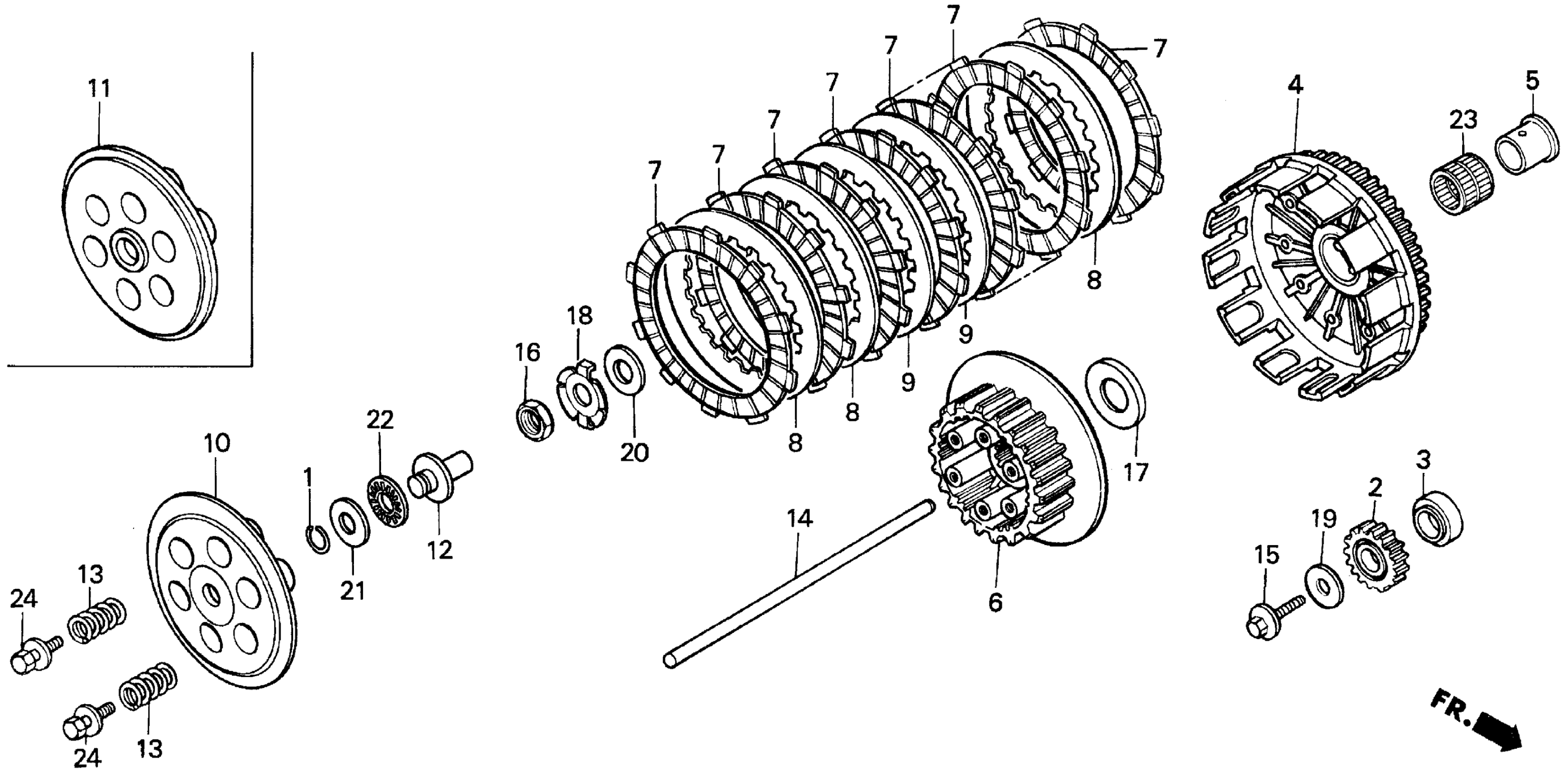

Honda CR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME030-SM700007 CLUTCH Diagram

#

Description
Price

1

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

2

GEAR, PRIMARY DRIVE (21T)

13615-KS7-000

Unavailable

3

COLLAR, DRIVE GEAR

13617-ML3-000

$52.77

4

CLUTCH (OUTER) This part replaces 22100-KZ3-J20.

22100-KSK-670

$391.36

4

CLUTCH (OUTER) This part replaces 22100-KZ3-L10.

22100-KSK-670

$391.36

4

CLUTCH (OUTER) This part replaces 22100-KZ3-862.

22100-KSK-670

$391.36

5

COLLAR, CLUTCH (OUTER)

22106-KS7-000

$26.35

6

CENTER, CLUTCH This part replaces 22120-KZ3-B10.

22120-MEN-A00

$120.55

6

CENTER, CLUTCH This part replaces 22120-KZ3-B11.

22120-MEN-A00

$120.55

6

CENTER, CLUTCH This part replaces 22120-KZ3-862.

22120-MEN-A00

$120.55

7

DISK, CLUTCH FRICTION

22201-KZ3-730

$21.87

8

PLATE B, CLUTCH

22321-KA4-741

$16.58

9

PLATE B, CLUTCH

22321-KZ3-690

$16.11

10

PLATE, CLUTCH PRESSURE

22351-KZ3-860

$78.39

12

PIECE, CLUTCH LIFTER

22352-ML3-910

$37.07

13

SPRING, CLUTCH (PINK)

22401-KZ3-690

$5.05

14

ROD, CLUTCH LIFTER This part replaces 22851-KA4-740.

22851-KZ3-J20

$20.74

15

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

16

NUT (18MM)

90235-KA4-000

$11.09

17

WASHER, THRUST (23X48)

90421-HA2-010

$10.91

18

WASHER, LOCK (18MM) This part replaces 90461-KA4-000.

90461-MAC-740

$7.77

18

WASHER, LOCK (18MM)

90461-MAC-740

$7.77

19

WASHER, PLAIN (10MM)

90401-ML3-790

$6.85

20

WASHER (18X32X2)

90501-ML3-910

$4.37

21

WASHER (12MM)

90608-072-000

$3.80

22

BEARING, NEEDLE (12MM)

91001-147-003

$12.58

22

BEARING, NEEDLE (12MM) (TOMUSON)

91001-147-006

$13.34

23

BEARING, NEEDLE (28X32X27.2) (TOMUSON)

91021-ML3-003

$17.87

24

BOLT-WASHER (6X20)

93404-06020-08

$1.62
