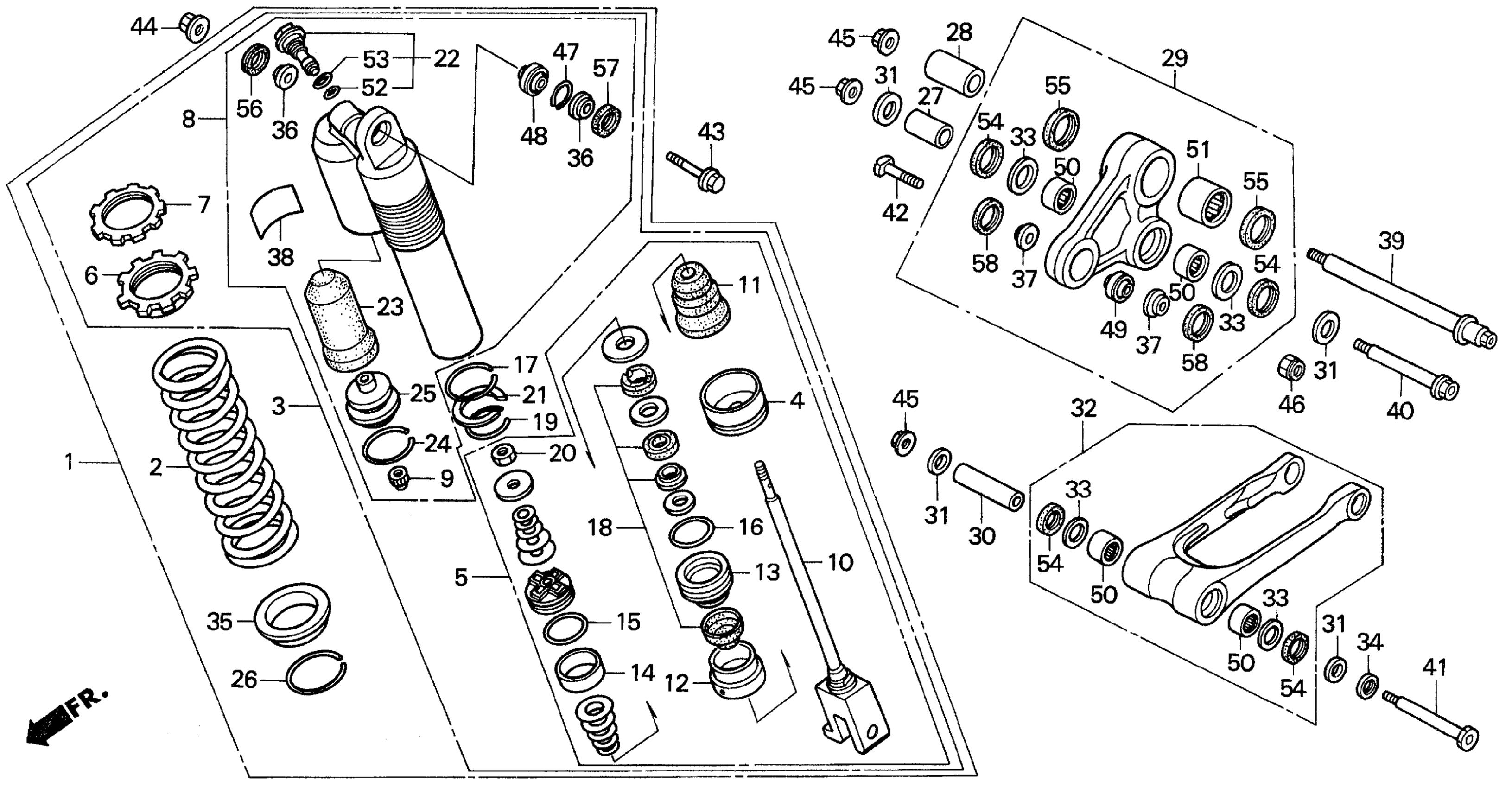

Honda CR250RA (94) MOTORCYCLE, JPN, VIN# JH2ME030-RM600010 TO JH2ME030-RM604081 REAR SHOCK ABSORBER 94 Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA)

52400-KZ3-761

Unavailable

2

SPRING, RR. SHOCK ABSORBER (49N/MM,5.0KGF/MM) (SHOWA) | (Optional).

52401-KZ3-861

Unavailable

2

SPRING, RR. SHOCK ABSORBER (5.8KG/MM) (WHITE) (SHOWA) | (Optional).

52401-ML3-911

Unavailable

2

SPRING, RR. SHOCK ABSORBER (53N/MM,5.4KGF/MM) (SHOWA)

52403-KZ3-831

Unavailable

3

DAMPER, RR.

52410-KZ3-761

Unavailable

4

STOPPER, SPRING SEAT

52419-KZ3-003

Unavailable

5

ROD, PISTON

52421-KZ3-761

Unavailable

6

ADJUSTER, SPRING

52422-KS7-701

$33.79

7

NUT, ADJUSTER

52423-KS7-701

$26.16

8

CASE, SHOCK ABSORBER

52425-KZ3-761

Unavailable

9

CAP, AIR VALVE

52425-381-771

$5.05

10

ROD

52426-KZ3-711

Unavailable

11

RUBBER, STOPPER

52427-KZ3-891

$19.01

12

PLATE, END

52428-KZ3-891

Unavailable

13

CASE, ROD GUIDE

52429-KZ3-891

Unavailable

14

RING, PISTON (SHOWA)

52431-KZ3-861

$10.43

15

O-RING (39.5X2.0)

52432-KZ3-861

$3.15

16

O-RING (39.7X3.5)

52434-KZ3-861

$6.15

17

RING, STOPPER (SHOWA)

52435-KZ3-861

Unavailable

18

OIL SEAL SET

52436-KZ3-305

$45.82

19

RING B, STOPPER (SHOWA)

52436-KZ3-861

Unavailable

20

NUT, HEX. (12MM)

52438-KA4-741

$2.92

21

STOPPER (SHOWA)

52439-KZ3-861

Unavailable

22

BOLT, PLUG

52440-KZ3-761

Unavailable

23

BLADDER

52451-KZ3-891

$18.54

24

RING, STOPPER (SHOWA)

52452-KS7-831

$2.90

25

CAP, CHAMBER (SHOWA)

52453-KS7-831

Unavailable

26

RING, STOPPER (SHOWA)

52455-MM5-003

Unavailable

27

COLLAR, CUSHION ARM

52464-KZ3-860

Unavailable

28

COLLAR, CUSHION ARM

52464-KZ4-710

Unavailable

29

ARM SET, CUSHION

52465-KZ4-306

Unavailable

30

COLLAR, CONNECTING ROD

52473-KZ3-860

Unavailable

31

COLLAR, CONNECTING ROD SIDE

52475-KZ3-860

$13.39

32

ROD SET, SHOCK CONNECTING

52475-KZ4-306

Unavailable

33

WASHER, THRUST

52476-KZ3-860

$11.62

34

COLLAR (15.2X24X3.5)

52477-KZ4-710

Unavailable

35

SEAT, SPRING

52486-KZ3-003

Unavailable

36

COLLAR, SHOCK ABSORBER PIVOT

52486-KZ3-730

Unavailable

37

COLLAR, SHOCK PIVOT

52486-ML3-790

Unavailable

38

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

39

BOLT, RUBBER ARM PIVOT

90128-KZ4-710

Unavailable

40

BOLT, RUBBER ARM (15X87) (TSUKIBOSHI)

90129-KZ3-861

Unavailable

41

BOLT, RUBBER CONNECTING ROD (15X113)

90130-KZ4-710

Unavailable

42

BOLT, RUBBER (LOWER) (10X43.5)

90153-KZ4-710

$9.38

43

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

44

NUT, AXLE (10MM)

90304-GA6-003

$2.89

45

NUT, U (14MM)

90305-GE8-003

$3.86

45

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

46

NUT, U (10MM)

90306-KZ4-711

$3.74

47

RING, SNAP (26MM)

90613-PF4-300

Unavailable

48

BEARING, SPHERICAL (10)

91074-KZ3-711

Unavailable

49

BEARING, SPHERICAL (10)

91075-MAC-671

Unavailable

50

BEARING, NEEDLE (22X28X16)

91078-KZ3-731

$32.95

51

BEARING, NEEDLE (25X32X26)

91078-KZ4-711

Unavailable

52

O-RING (21.5X1.5)

91256-KZ3-731

$2.84

53

O-RING (26.2X1.9)

91257-KZ3-891

$3.38

54

DUST SEAL (27X34X4)

91261-KZ3-861

$7.79

55

DUST SEAL (25X32X4)

91262-KZ3-731

$7.50

56

DUST SEAL, SHOCK (UPPER)

91351-GS2-701

$4.48

57

DUST SEAL, SHOCK

91351-KZ3-731

$4.87

58

DUST SEAL, SHOCK (16X26X3)

91351-MAC-671

$5.78
