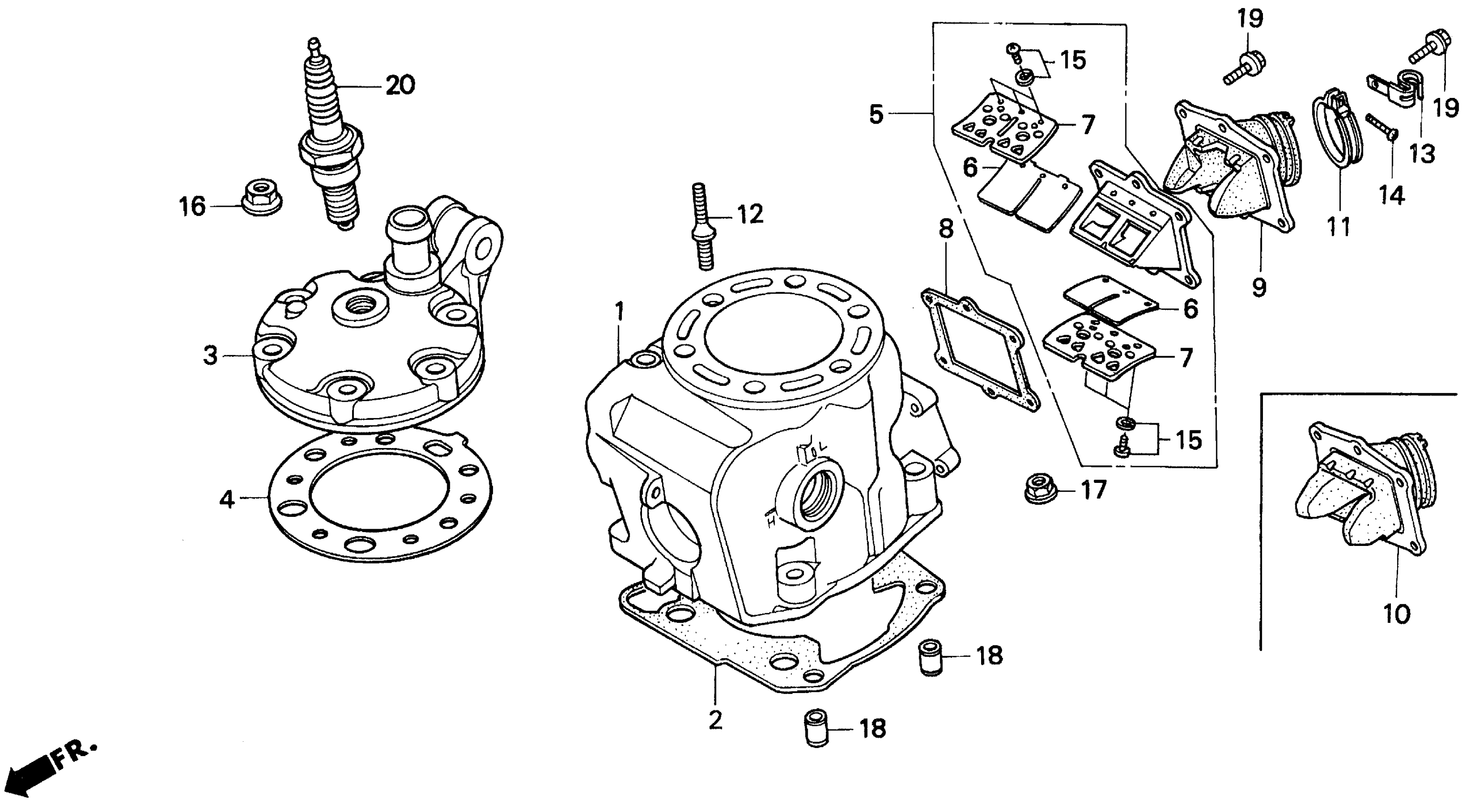

Honda CR250RA (93) MOTORCYCLE, JPN, VIN# JH2ME030-PM500015 TO JH2ME030-PM504128 CYLINDER HEAD 92-96 Diagram

CYLINDER

12100-KZ3-860

Unavailable

GASKET, CYLINDER This part replaces 12191-KZ3-860.

12191-KZ3-880

$14.25

GASKET, CYLINDER

12191-KZ3-880

$14.25

CYLINDER HEAD

12201-KZ3-690

Unavailable

CYLINDER HEAD This part replaces 12201-KZ3-890.

12201-KZ3-690

Unavailable

GASKET, CYLINDER HEAD

12254-KZ3-860

$32.02

VALVE ASSY., REED

14100-KZ3-862

Unavailable

GASKET A, REED VALVE

14132-KAE-000

$4.06

INSULATOR, CARBURETOR

16221-KZ3-860

Unavailable

BAND, INSULATOR

16223-KA5-690

$17.05

BOLT, SPECIAL STUD

90011-HA2-000

$7.20

CLIP, WIRE HARNESS

91406-657-671

$9.42

SCREW, PAN (5X25)

93500-05025-0A

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

PIN A, DOWEL (12X20)

94301-12200

$2.29

SPARK PLUG (W24ESR-V) (DENSO)

98079-58659

$2.54

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649.

98079-58679

$5.80

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649-00.

98079-58679

$5.80

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58669.

98079-58679

$5.80

SPARK PLUG (BR8EG) (NGK)

98079-58679

$5.80
