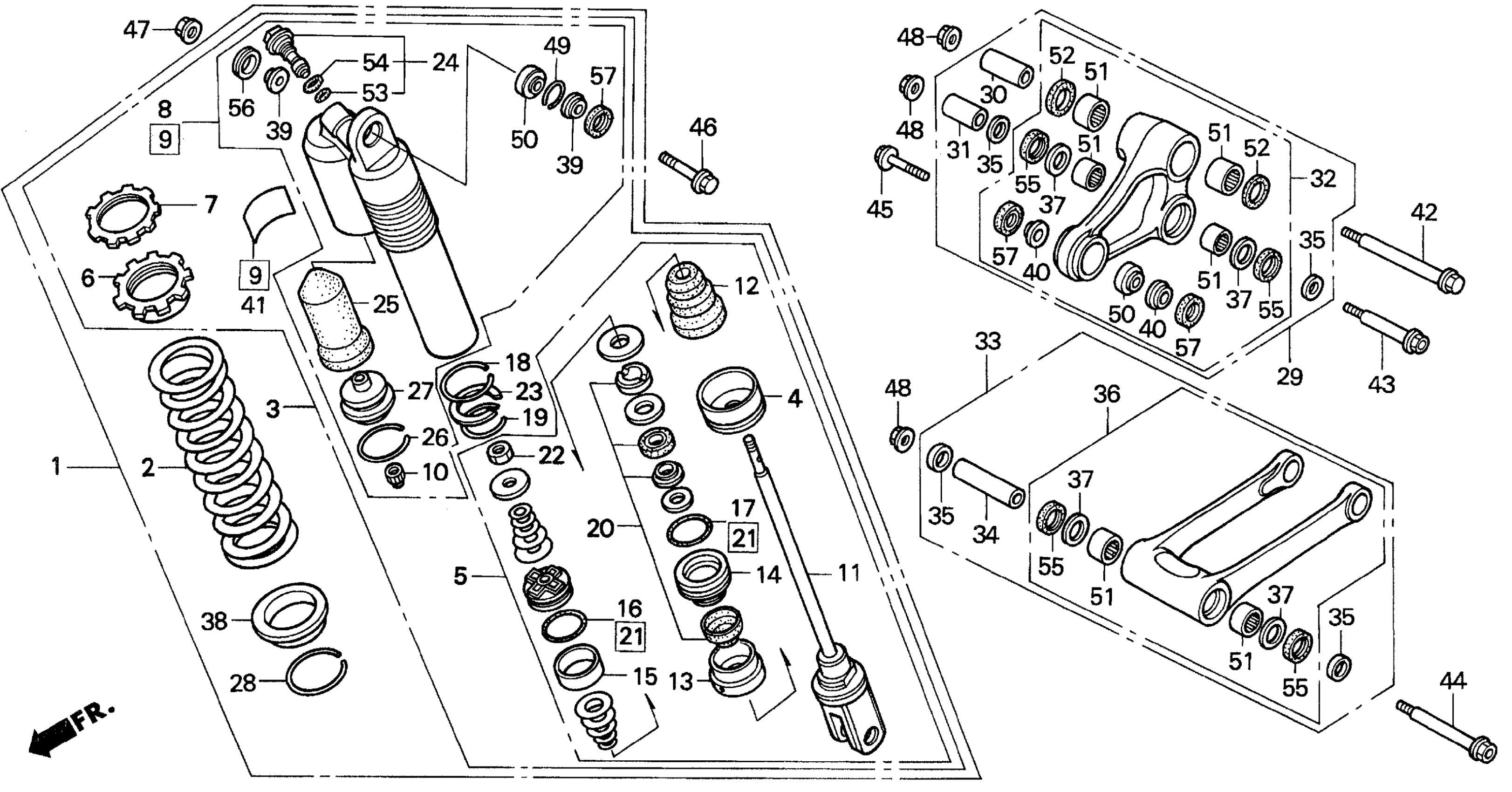

Honda CR250RA (92) MOTORCYCLE, JPN, VIN# JH2ME030-NM400009 TO JH2ME030-NM403206 REAR SHOCK ABSORBER 92-93 Diagram

#

Description
Price

1

SHOCK ASSY., RR.

52400-KZ3-681

Unavailable

2

SPRING, RR. SHOCK ABSORBER (49N/MM,5.0KGF/MM) (SHOWA)

52401-KZ3-861

Unavailable

2

SPRING, RR. SHOCK ABSORBER (4.6KGF/MM) (SHOWA) | (Optional).

52402-KZ3-801

Unavailable

2

SPRING, RR. SHOCK ABSORBER (53N/MM,5.4KGF/MM) (SHOWA) | (Optional).

52403-KZ3-831

Unavailable

3

DAMPER, RR. (SHOWA)

52410-KZ3-681

Unavailable

4

STOPPER, SPRING SEAT

52419-KZ3-003

Unavailable

5

ROD, PISTON (SHOWA)

52421-KZ3-861

Unavailable

6

ADJUSTER, SPRING

52422-KS7-701

$33.79

7

NUT, ADJUSTER

52423-KS7-701

$26.16

8

CASE, SHOCK ABSORBER (SHOWA)

52425-KZ3-861

Unavailable

10

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.94

11

ROD (SHOWA)

52426-KZ3-861

Unavailable

12

RUBBER, STOPPER (SHOWA)

52427-KZ3-861

Unavailable

13

PLATE, END (SHOWA)

52428-KZ3-861

Unavailable

14

CASE, ROD GUIDE

52429-KZ3-861

Unavailable

15

RING, PISTON (SHOWA)

52431-KZ3-861

$10.43

18

RING, STOPPER (SHOWA)

52435-KZ3-861

Unavailable

19

RING B, STOPPER (SHOWA)

52436-KZ3-861

Unavailable

20

OIL SEAL SET

52436-MN1-680

$46.95

21

O-RING SET

52437-KZ3-860

Unavailable

22

NUT, HEX. (12MM)

52438-KA4-741

$2.92

23

STOPPER (SHOWA)

52439-KZ3-861

Unavailable

24

BOLT, PLUG (SHOWA) (NOT AVAILABLE)

52440-KZ3-861

Unavailable

25

BLADDER (SHOWA)

52451-KS7-831

$17.93

26

RING, STOPPER (SHOWA)

52452-KS7-831

$2.90

27

CAP, CHAMBER (SHOWA)

52453-KS7-831

Unavailable

28

RING, STOPPER (SHOWA)

52455-MM5-003

Unavailable

29

ARM ASSY., SHOCK ABSORBER

52460-KZ3-860

Unavailable

30

COLLAR, CUSHION ARM PIVOT

52463-KZ3-860

Unavailable

31

COLLAR, CUSHION ARM

52464-KZ3-860

Unavailable

33

ROD ASSY., SHOCK CONNECTING

52470-KZ3-860

Unavailable

34

COLLAR, CONNECTING ROD

52473-KZ3-860

Unavailable

35

COLLAR, CONNECTING ROD SIDE

52475-KZ3-860

$13.39

37

WASHER, THRUST

52476-KZ3-860

$11.62

38

SEAT, SPRING

52486-KZ3-003

Unavailable

39

COLLAR, SHOCK ABSORBER PIVOT

52486-KZ3-730

Unavailable

40

COLLAR, SHOCK PIVOT

52486-ML3-790

Unavailable

41

LABEL, RR. DAMPER WARNING

87516-KZ3-671

Unavailable

42

BOLT, CUSHION ARM PIVOT (15X210) (TSUKIBOSHI)

90128-KZ3-861

Unavailable

43

BOLT, RUBBER ARM (15X87) (TSUKIBOSHI)

90129-KZ3-861

Unavailable

44

BOLT, SHOCK CONNECTING (15X109.5) (TSUKIBOSHI)

90130-KZ3-861

Unavailable

45

BOLT, FLANGE (10X38)

90153-KZ3-860

Unavailable

46

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

47

NUT, AXLE (10MM)

90304-GA6-003

$2.89

48

NUT, U (14MM)

90305-GE8-003

$3.86

48

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

49

RING, SNAP (26MM)

90613-PF4-300

Unavailable

50

BEARING, SPHERICAL (10) This part replaces 91074-KZ3-731.

91074-KZ4-901

Unavailable

50

BEARING, SPHERICAL (10)

91074-KZ4-901

Unavailable

51

BEARING, NEEDLE (22X28X16)

91078-KZ3-731

$32.95

52

DUST SEAL (22X28X5)

91254-KS7-831

$8.66

53

O-RING (15.5X1.5)

91256-GC5-003

$1.51

54

O-RING (21X1.9)

91257-KZ3-003

$2.75

55

DUST SEAL (27X34X4)

91261-KZ3-861

$7.79

56

DUST SEAL, SHOCK (UPPER)

91351-GS2-701

$4.48

57

DUST SEAL, SHOCK

91351-KZ3-731

$4.87
