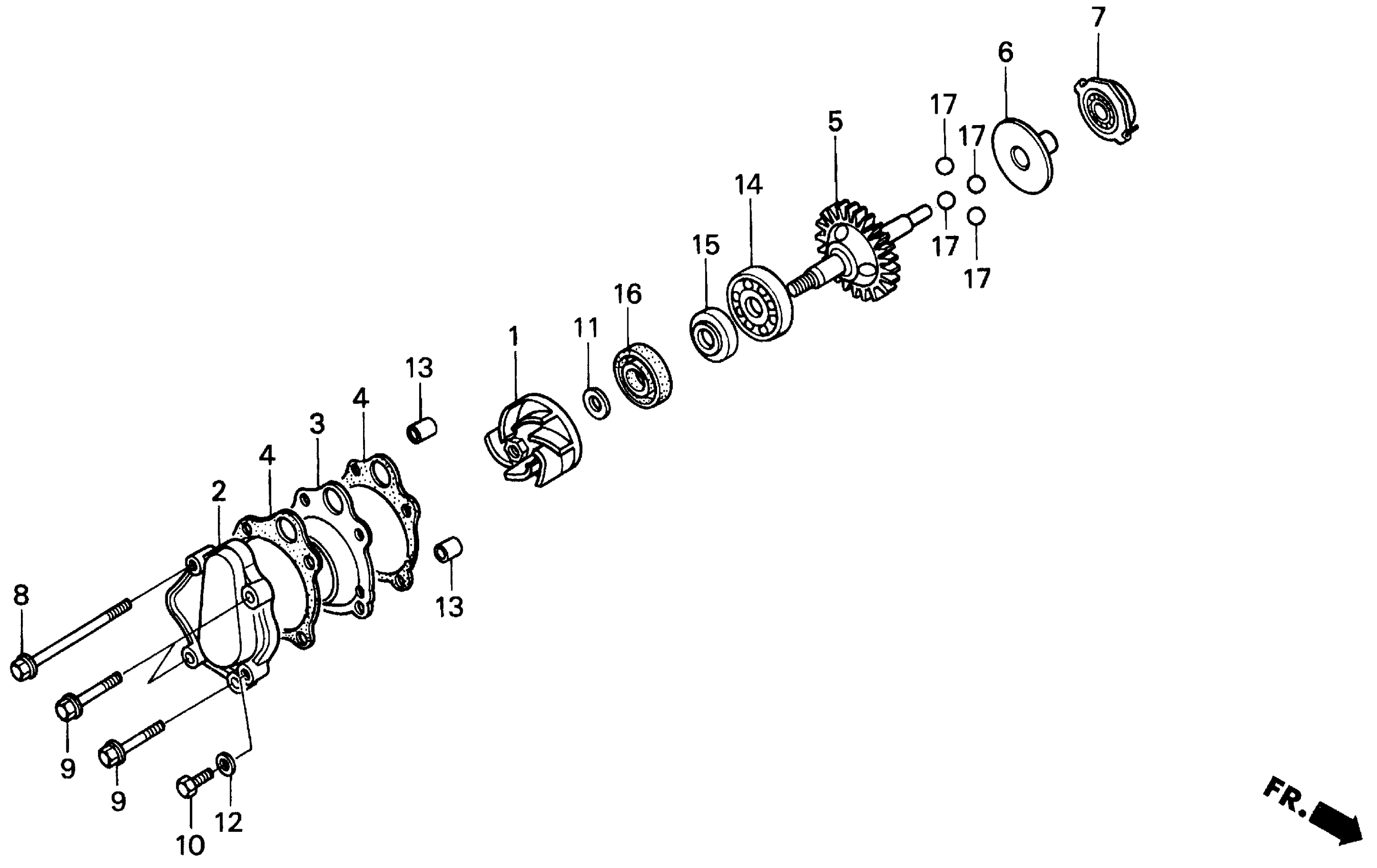

Honda CR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME030-MM300005 TO JH2ME030-MM302994 WATER PUMP 90-91 Diagram

IMPELLER, WATER PUMP

19215-KA3-740

$63.20

COVER, WATER PUMP (NOT AVAILABLE)

19221-KA4-770

Unavailable

SEPARATOR, WATER PUMP

19222-KA4-770

Unavailable

GASKET, WATER PUMP COVER

19229-KA4-309

$3.83

GASKET, WATER PUMP COVER This part replaces 19229-KA4-770.

19229-KA4-309

$3.83

SHAFT, WATER PUMP

19240-KA4-770

Unavailable

PLATE, GOVERNOR

19251-KA4-770

Unavailable

RELEASE (NOT AVAILABLE)

19260-KS7-010

Unavailable

BOLT, FLANGE (6X75)

90015-KS6-700

Unavailable

BOLT, FLANGE (6X30)

90016-ML3-680

Unavailable

BOLT, OIL CHECK

90037-360-000

$3.26

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

PIN, DOWEL (8X10) This part replaces 90701-679-000.

94301-08100

$2.25

PIN A, DOWEL (8X10)

94301-08100

$2.25

BEARING, RADIAL BALL (12X28X7) (TOYO)

91001-KA4-003

$17.08

BEARING, RADIAL BALL (12X28X7) (NTN) This part replaces 91001-KA4-004.

91001-KA4-003

$17.08

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

OIL SEAL (12X22X5)

91201-965-000

$4.06

SEAL, WATER PUMP (NOK)

91211-KA3-761

$6.69

BALL, STEEL (#13) (13/32)

96211-13000

$1.49
