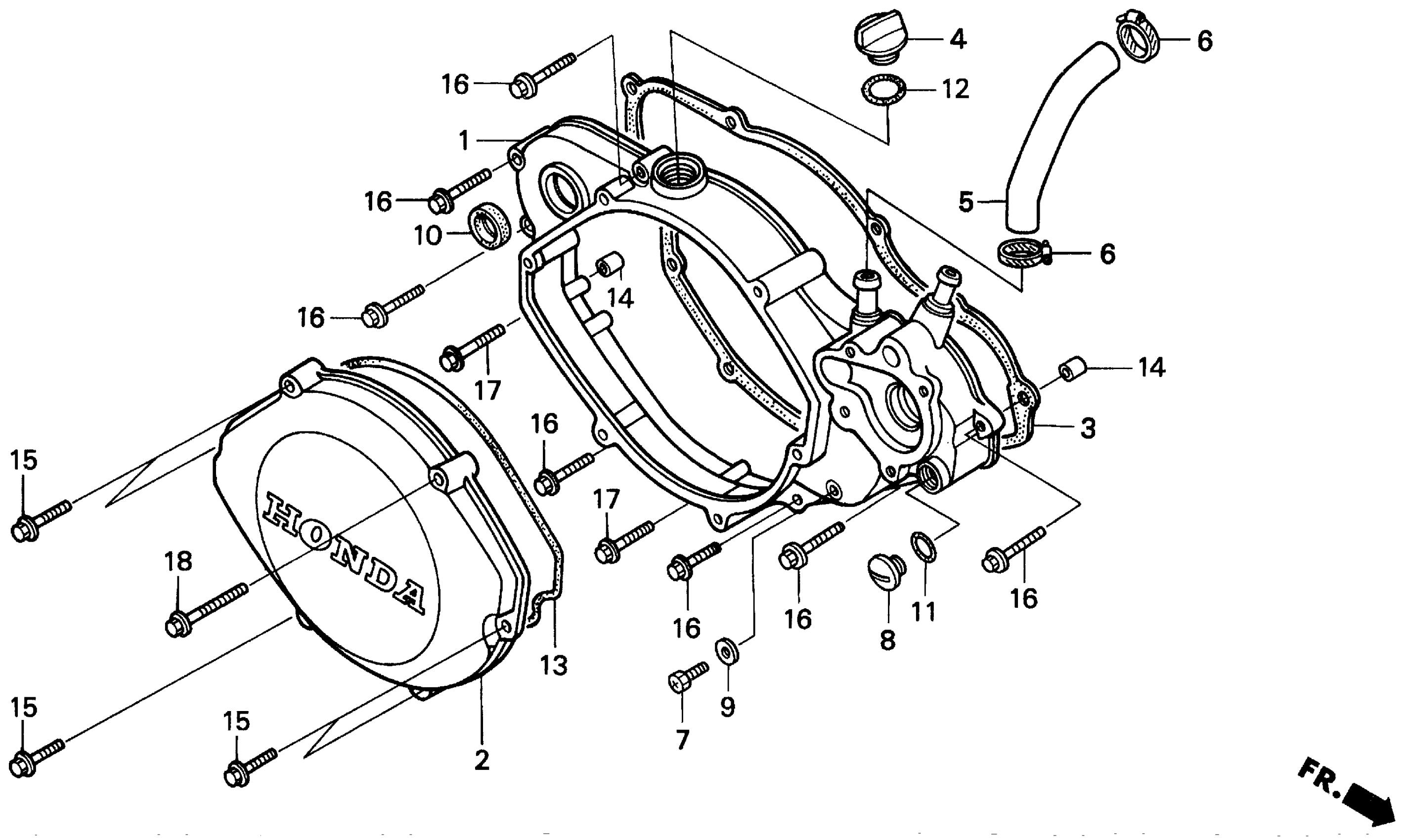

Honda CR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME030-MM300005 TO JH2ME030-MM302994 RIGHT CRANKCASE COVER 90-91 Diagram

COVER, R. CRANKCASE

11341-KZ3-700

Unavailable

COVER, CLUTCH

11342-KS7-701

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11395-KS7-000.

11395-KS7-306

$12.08

GASKET, R. CRANKCASE COVER

11395-KS7-306

$12.08

CAP, OIL FILLER

15611-KA4-710

$14.40

HOSE, WATER (NOT AVAILABLE)

19501-KZ3-000

Unavailable

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

BOLT, OIL CHECK

90037-360-000

$3.26

CAP, ALTERNATOR

90084-KF9-900

$10.87

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

OIL SEAL (20X28X5) This part replaces 91202-KA4-003.

91204-KF0-003

$6.54

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (16MM)

91303-800-000

$2.23

O-RING, SPECIAL

91311-KS7-701

$9.54

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

BOLT, FLANGE (6X80)

96001-06080-07

$2.23
