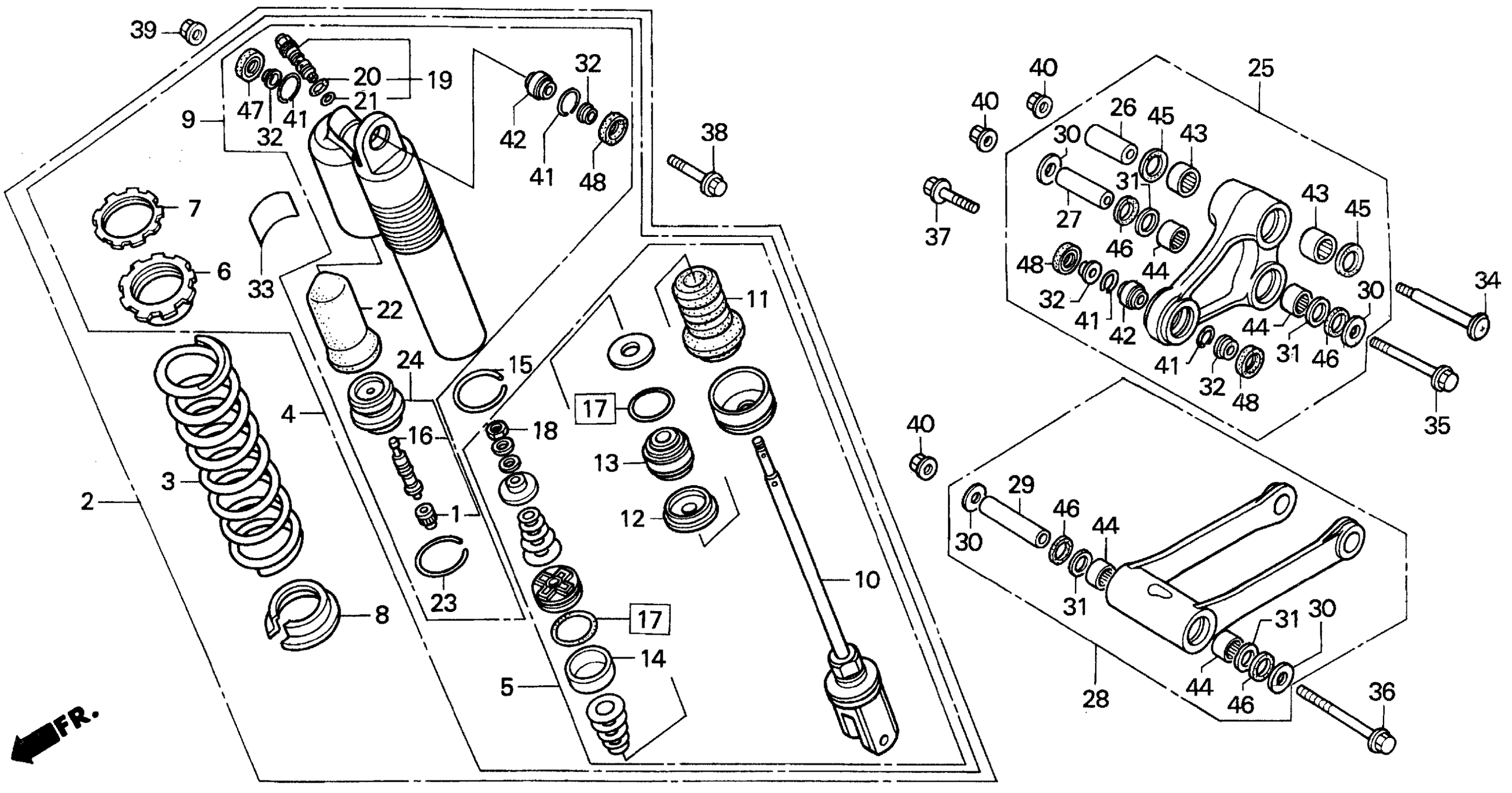

Honda CR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME030-MM300005 TO JH2ME030-MM302994 REAR SHOCK ABSORBER 91 Diagram

#

Description
Price

1

CAP, AIR VALVE

51453-KK0-004

$4.46

2

CUSHION ASSY., RR. This part replaces 52400-KZ3-871.

52400-KZ3-831

Unavailable

3

SPRING, RR. SHOCK ABSORBER (5.0KG/MM) (KAYABA)

52401-KZ3-731

Unavailable

3

SPRING, RR. SHOCK ABSORBER (4.6KG/MM) (KAYABA) | (Optional).

52402-KZ3-841

Unavailable

3

SPRING, RR. SHOCK ABSORBER (5.4KG/MM) (KAYABA) | (Optional).

52403-KZ3-821

Unavailable

4

DAMPER, RR. (KAYABA)

52410-KZ3-871

Unavailable

5

ROD, PISTON (KAYABA)

52421-KZ3-731

Unavailable

6

SEAT, SPRING (UPPER) (KAYABA)

52422-KS6-701

Unavailable

7

NUT, ADJUSTER (KAYABA)

52423-KS6-701

Unavailable

8

SEAT, SPRING (KAYABA)

52424-KZ3-731

Unavailable

9

CASE ASSY., SUB (KAYABA)

52425-KZ3-731

Unavailable

10

ROD

52426-KZ3-731

Unavailable

11

RUBBER, BUMPER (KAYABA)

52427-KZ4-701

Unavailable

12

CAP, CASE (KAYABA)

52428-KS6-701

Unavailable

13

CASE, ROD GUIDE (KAYABA)

52429-KS6-831

$35.59

14

RING, PISTON (KAYABA)

52431-KS6-831

Unavailable

15

RING, SNAP (KAYABA) This part replaces 52435-KS6-701.

52435-ML3-791

Unavailable

15

RING, SNAP

52435-ML3-791

Unavailable

16

CORE, VALVE

52437-KA3-731

Unavailable

17

O-RING SET (KAYABA)

52437-KS6-305

Unavailable

18

NUT, HEX. (12MM)

52438-KA3-731

$3.10

19

ADJUSTER, DAMPING FORCE

52440-KZ3-731

Unavailable

20

O-RING (17.8X2.4) (KAYABA)

52447-KS6-701

$2.98

21

O-RING (17.5X1.5)

52448-KZ4-003

Unavailable

22

BLADDER (KAYABA)

52451-KZ4-003

$30.00

23

RING, SNAP (KAYABA)

52452-KZ4-003

Unavailable

24

CAP, BLADDER

52453-KZ4-003

Unavailable

25

ARM ASSY., SHOCK ABSORBER

52460-KZ3-730

Unavailable

26

COLLAR, CUSHION ARM PIVOT

52463-KZ3-730

Unavailable

27

COLLAR, CUSHION ARM

52464-KZ3-730

Unavailable

28

ROD ASSY., SHOCK CONNECTING

52470-KZ3-730

Unavailable

29

COLLAR, CONNECTING ROD

52473-KZ3-730

$13.72

30

COLLAR, CONNECTING ROD SIDE

52475-KZ3-730

Unavailable

31

WASHER, THRUST

52476-KZ3-730

Unavailable

32

COLLAR, SHOCK ABSORBER PIVOT

52486-KZ3-730

Unavailable

33

LABEL, RR. DAMPER WARNING

87516-KZ4-671

Unavailable

34

BOLT, FLANGE (14X108)

90128-KZ4-010

Unavailable

35

BOLT, FLANGE (12X92)

90129-KZ4-010

Unavailable

36

BOLT, FLANGE (12X118.5)

90130-KZ3-700

Unavailable

37

BOLT, FLANGE (10X38)

90153-KS7-830

Unavailable

38

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

39

NUT, AXLE (10MM)

90304-GA6-003

$2.89

40

NUT, FLANGE (12MM) This part replaces 90306-KA4-003.

90306-181-761

$6.08

40

NUT, FLANGE (12MM)

90306-181-761

$6.08

41

RING, SNAP (26MM)

90613-PF4-300

Unavailable

42

BEARING, SPHERICAL (10) This part replaces 91074-KZ3-731.

91074-KZ4-901

Unavailable

42

BEARING, SPHERICAL (10)

91074-KZ4-901

Unavailable

43

BEARING, NEEDLE (22X28X16)

91078-KZ3-731

$32.95

44

BEARING, NEEDLE (20X26X20)

91079-KZ3-731

$25.67

45

DUST SEAL (22X28X5)

91254-KS7-831

$8.66

46

DUST SEAL (25X32X4)

91262-KZ3-731

$7.50

47

DUST SEAL, SHOCK (UPPER)

91351-GS2-701

$4.48

48

DUST SEAL, SHOCK

91351-KZ3-731

$4.87
