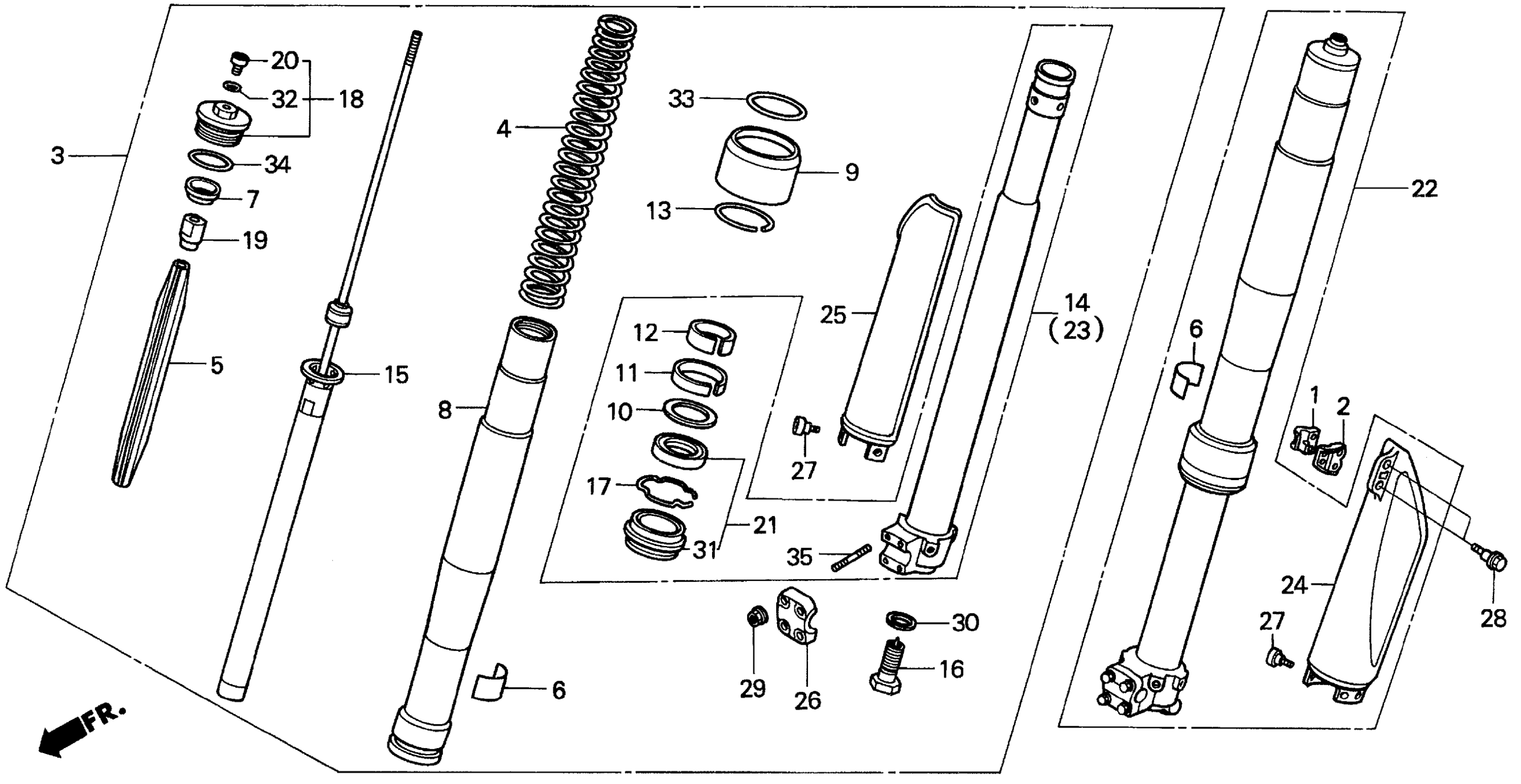

Honda CR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME030-MM300005 TO JH2ME030-MM302994 FRONT FORK 91 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

3

FORK ASSY., R. FR. (SHOWA)

51400-KZ3-871

Unavailable

4

SPRING, FR. FORK (3.9N/MM, 0.40KGF/MM) (SHOWA)

51401-KZ3-731

Unavailable

4

SPRING, FR. FORK (3.7N/MM, 0.38KGF/MM) (SHOWA) | (Optional).

51401-KZ4-731

Unavailable

4

SPRING, FR. FORK (4.1N/MM, 0.42KGF/MM) (SHOWA) | (Optional).

51403-KZ3-811

Unavailable

5

GUIDE, SPRING (SHOWA)

51404-KZ3-731

Unavailable

6

LABEL

51405-ML3-911

Unavailable

7

SEAT, SPRING (SHOWA)

51408-KZ3-731

Unavailable

8

TUBE (OUTER) (SHOWA)

51410-KZ3-731

Unavailable

9

CASE, OIL SEAL (SHOWA) (NOT AVAILABLE)

51411-KZ3-731

Unavailable

10

RING, BACK-UP

51412-KZ3-003

$9.43

11

BUSH, GUIDE This part replaces 51414-KZ3-701.

51414-MFR-671

$21.68

12

BUSH, SLIDER This part replaces 51415-KZ3-701.

51415-MCH-003

$11.87

13

RING, STOPPER

51419-KZ3-003

Unavailable

14

PIPE, R. SLIDE (SHOWA)

51420-KZ3-731

Unavailable

15

DAMPER SET

51430-KZ3-811

Unavailable

16

BOLT, CENTER

51441-KZ3-731

Unavailable

17

RING, OIL SEAL STOPPER

51447-KZ3-003

$5.12

18

BOLT ASSY., FR. FORK (SHOWA)

51450-KZ3-731

Unavailable

19

NUT, LOCK (SHOWA)

51451-KZ3-731

Unavailable

20

BOLT, PLUG (SHOWA)

51456-KZ3-731

$9.59

21

SEAL SET, FR. FORK

51490-KZ3-821

Unavailable

22

FORK ASSY., L. FR. (SHOWA)

51500-KZ3-871

Unavailable

23

CASE, L. SLIDE (SHOWA)

51520-KZ3-731

Unavailable

24

PROTECTOR, L. FR. FORK

51610-ML3-910

Unavailable

25

PROTR, R. FR. FORK This part replaces 51620-KZ3-000.

51620-KZ3-010

Unavailable

26

HOLDER, AXLE This part replaces 51634-KZ3-003.

51634-MV1-003

Unavailable

26

HOLDER, AXLE

51634-MV1-003

Unavailable

27

BOLT, DISK (6X13)

90106-KZ3-000

$4.69

28

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

29

NUT, U (6MM)

90301-473-003

$4.07

30

WASHER, SPECIAL (SHOWA)

90544-KS7-003

$2.92

31

DUST SEAL

91254-KZ3-003

$16.91

32

O-RING (2.8X1.9) (SHOWA)

91301-KZ3-731

$2.02

33

O-RING (54.5X2.4) (NOK) This part replaces 91355-KZ3-003.

91360-SM4-003

Unavailable

33

O-RING (54.5X2.4) (NOK)

91360-SM4-003

Unavailable

34

O-RING (44.7X2.4)

91356-KZ3-003

$3.92

35

BOLT, STUD (6X25)

92900-06025-0E

$1.49
