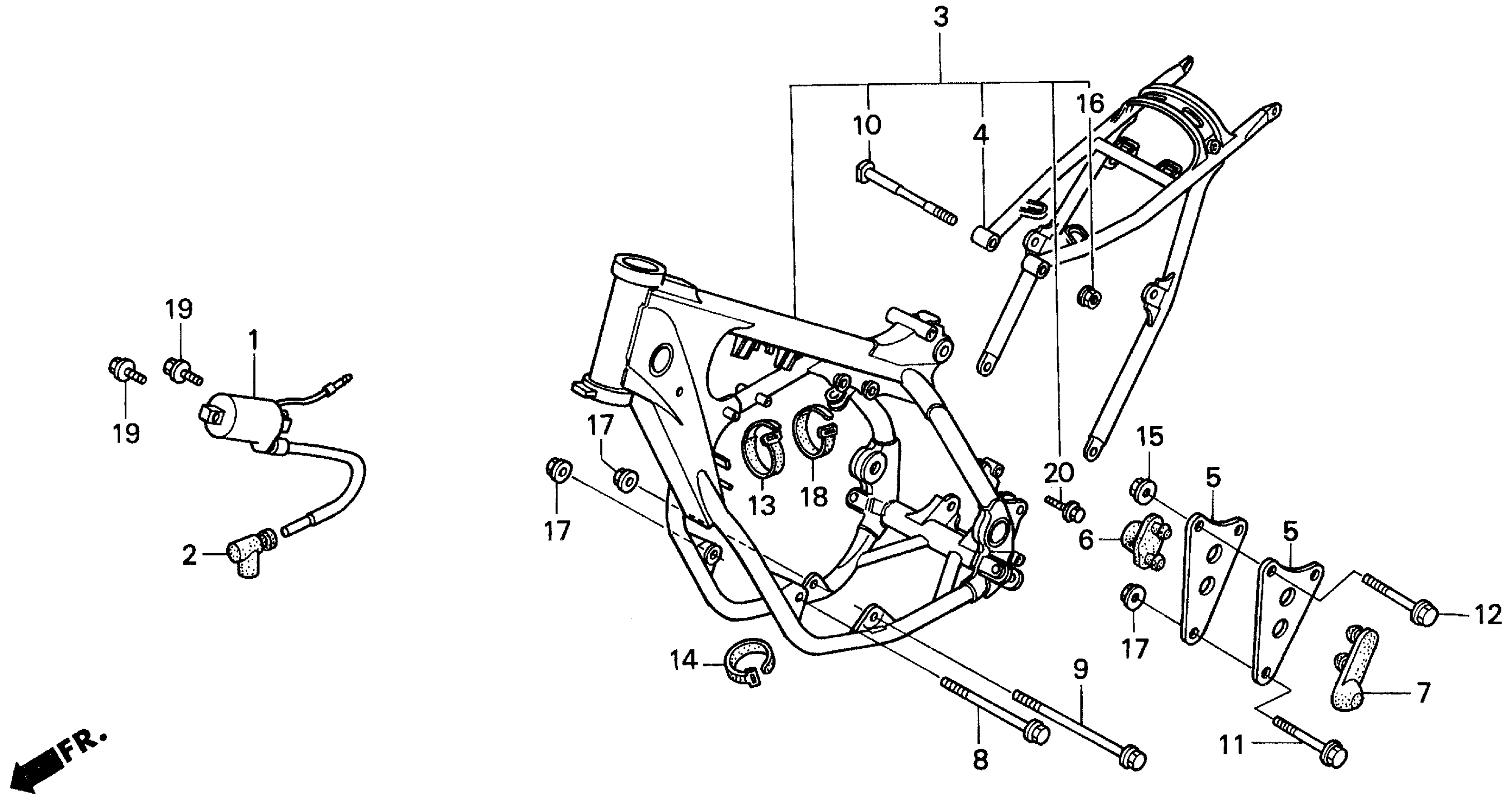

Honda CR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME030-MM300005 TO JH2ME030-MM302994 FRAME 90-91 Diagram

COIL, IGNITION This part replaces 30500-KZ3-700.

30500-KZ3-701

$54.16

COIL, IGNITION

30500-KZ3-701

$54.16

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$28.50

FRAME *NH196* (ROSS WHITE)

50100-KZ3-730ZA

Unavailable

FRAME, RR. *NH196* (ROSS WHITE)

50140-KZ3-700ZB

Unavailable

BRACKET, HEAD HANGER (NOT AVAILABLE)

50401-KZ3-700

Unavailable

RUBBER, TANK STOPPER

50405-KZ4-000

Unavailable

RUBBER, BOLT CAP

50405-ML3-770

Unavailable

BOLT, FLANGE (10X108)

90018-ML3-910

Unavailable

BOLT, FLANGE (10X125)

90115-ML3-910

$13.64

BOLT, JOINT (8X137)

90118-KS6-000

Unavailable

BOLT, FLANGE (10X53) This part replaces 90131-ML3-910.

90112-GK4-000

$4.24

BOLT, FLANGE (8X51)

90135-KZ3-700

$5.05

BAND, WIRE

90651-KV6-003

$3.40

BAND, WIRE

90652-KT1-771

$4.28

NUT, FLANGE (8MM)

94050-08000

$0.87

NUT, FLANGE (8MM)

94050-08080

$0.87

NUT, FLANGE (10MM)

94050-10000

$1.43

BAND B1, CABLE

32161-404-000

$2.16

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.16

BOLT, FLANGE (6X18)

96001-06018-00

$1.66

BOLT, FLANGE (8X22)

96300-08022-00

$2.00

BOLT, FLANGE (8X22) This part replaces 96400-08022-00.

96300-08022-00

$2.00
