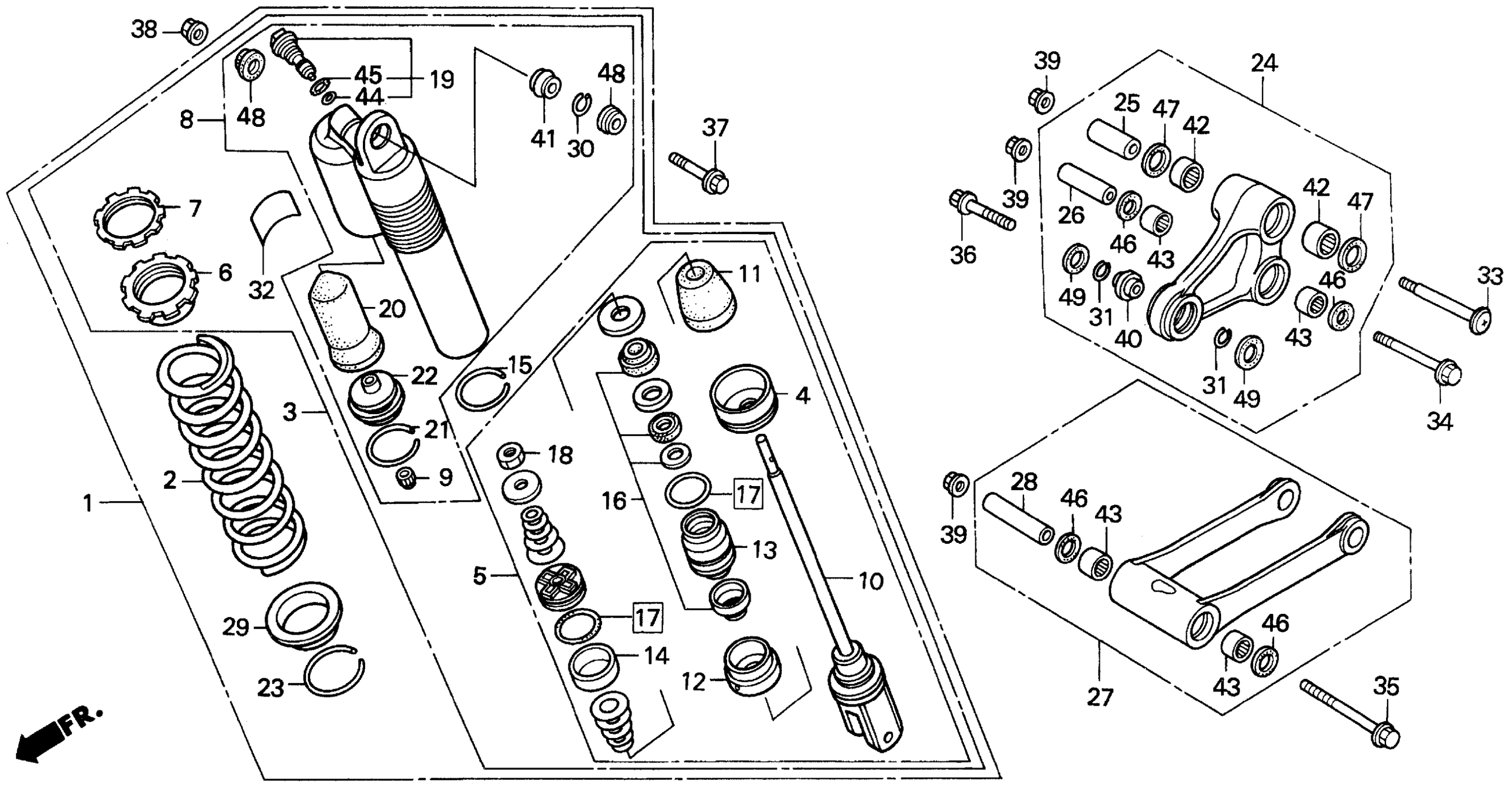

Honda CR250RA (90) MOTORCYCLE, JPN, VIN# JH2ME030-LM200013 TO JH2ME030-LM203598 REAR SHOCK ABSORBER 90 Diagram

#

Description
Price

1

SHOCK ASSY., RR. (SHOWA)

52400-KZ3-771

Unavailable

2

SPRING, RR. SHOCK ABSORBER (5.2KG/MM) (SHOWA)

52401-KZ3-701

Unavailable

2

SPRING, RR. SHOCK ABSORBER (5.6KG/MM) (GREEN) (SHOWA) | (Optional).

52401-ML3-921

Unavailable

2

SPRING, RR. SHOCK ABSORBER (4.8KG/MM) (SHOWA) (NOT AVAILABLE) | (Optional).

52402-KZ3-831

Unavailable

3

DAMPER, RR. (SHOWA)

52410-KZ3-771

Unavailable

4

STOPPER, SPRING SEAT

52419-KZ3-003

Unavailable

5

ROD, PISTON (SHOWA)

52421-KZ3-771

Unavailable

6

ADJUSTER, SPRING

52422-KS7-701

$33.79

7

NUT, ADJUSTER

52423-KS7-701

$26.16

8

CASE, SHOCK ABSORBER (SHOWA)

52425-KZ3-003

Unavailable

9

CAP, AIR VALVE

52425-381-771

$5.05

10

ROD (SHOWA)

52426-KZ3-701

Unavailable

11

RUBBER, STOPPER

52427-KZ3-003

$16.93

12

PLATE, END (SHOWA)

52428-KA4-832

Unavailable

13

CASE, ROD GUIDE (SHOWA)

52429-ML3-841

Unavailable

14

RING, PISTON (SHOWA)

52431-KA4-831

$15.90

15

RING, STOPPER (SHOWA)

52435-KS7-831

Unavailable

16

OIL SEAL SET (SHOWA)

52436-ML3-305

Unavailable

17

O-RING SET (SHOWA)

52437-KA4-841

$9.52

18

NUT, HEX. (12MM)

52438-KA4-741

$2.92

19

BOLT, PLUG (NOT AVAILABLE)

52440-KZ3-003

Unavailable

20

BLADDER (SHOWA)

52451-KS7-831

$17.93

21

RING, STOPPER (SHOWA)

52452-KS7-831

$2.90

22

CAP, CHAMBER (SHOWA)

52453-KS7-831

Unavailable

23

RING, STOPPER (SHOWA)

52455-MM5-003

Unavailable

24

ARM ASSY., SHOCK ABSORBER This part replaces 52460-KZ3-700.

52460-KZ3-702

Unavailable

24

ARM ASSY., SHOCK ABSORBER | Use from Frame SN LM201663 This part replaces 52460-KZ3-701.

52460-KZ3-702

Unavailable

24

ARM ASSY., SHOCK ABSORBER

52460-KZ3-702

Unavailable

25

COLLAR, CUSHION ARM PIVOT

52463-KZ4-000

Unavailable

26

COLLAR, CUSHION ARM

52464-KZ4-000

Unavailable

27

ROD ASSY., SHOCK CONNECTING This part replaces 52470-KZ3-700.

52470-KZ3-702

Unavailable

27

ROD ASSY., SHOCK CONNECTING | Use from Frame SN LM201663 This part replaces 52470-KZ3-701.

52470-KZ3-702

Unavailable

27

ROD ASSY., SHOCK CONNECTING

52470-KZ3-702

Unavailable

28

COLLAR, CONNECTING ROD PIVOT

52473-KZ4-000

Unavailable

29

SEAT, SPRING

52486-KZ3-003

Unavailable

30

RING, STOPPER (SHOWA)

52487-KA4-831

$3.92

31

RING, STOPPER

52487-KN5-000

$3.26

32

LABEL, RR. DAMPER WARNING

87516-KZ3-671

Unavailable

33

BOLT, FLANGE (14X108)

90128-KZ4-010

Unavailable

34

BOLT, FLANGE (12X92)

90129-KZ4-010

Unavailable

35

BOLT, FLANGE (12X118.5)

90130-KZ3-700

Unavailable

36

BOLT, FLANGE (10X38)

90153-KS7-830

Unavailable

37

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

38

NUT, AXLE (10MM)

90304-GA6-003

$2.89

39

NUT, FLANGE (12MM) This part replaces 90306-KA4-003.

90306-181-761

$6.08

39

NUT, FLANGE (12MM)

90306-181-761

$6.08

40

BEARING, SPHERICAL (10)

91074-KS7-831

Unavailable

41

BEARING, SPHERICAL (10.1MM)

91077-KS7-013

$40.64

42

BEARING, NEEDLE (22X28X16) This part replaces 91078-KS7-834.

91078-KS7-836

Unavailable

42

BEARING, NEEDLE (22X28X16) | Use from Frame SN LM201663 This part replaces 91078-KS7-835.

91078-KS7-836

Unavailable

42

BEARING, NEEDLE (22X28X16)

91078-KS7-836

Unavailable

43

BEARING, NEEDLE (20X26X20) This part replaces 91079-KS7-834.

91079-KZ3-731

$25.67

43

BEARING, NEEDLE (20X26X20) | Use from Frame SN LM201663 This part replaces 91079-KS7-835.

91079-KZ3-731

$25.67

43

BEARING, NEEDLE (20X26X20)

91079-KZ3-731

$25.67

44

O-RING (15.5X1.5)

91256-GC5-003

$1.51

45

O-RING (21X1.9)

91257-KZ3-003

$2.75

46

DUST SEAL (20X28X5)

91261-KS7-832

Unavailable

47

DUST SEAL (22X30X5)

91262-KS7-831

Unavailable

48

DUST SEAL, RR. SHOCK (UPPER) (SHOWA)

91351-KS7-003

$5.12

49

DUST SEAL, SHOCK (LOWER)

91351-KS7-832

Unavailable
