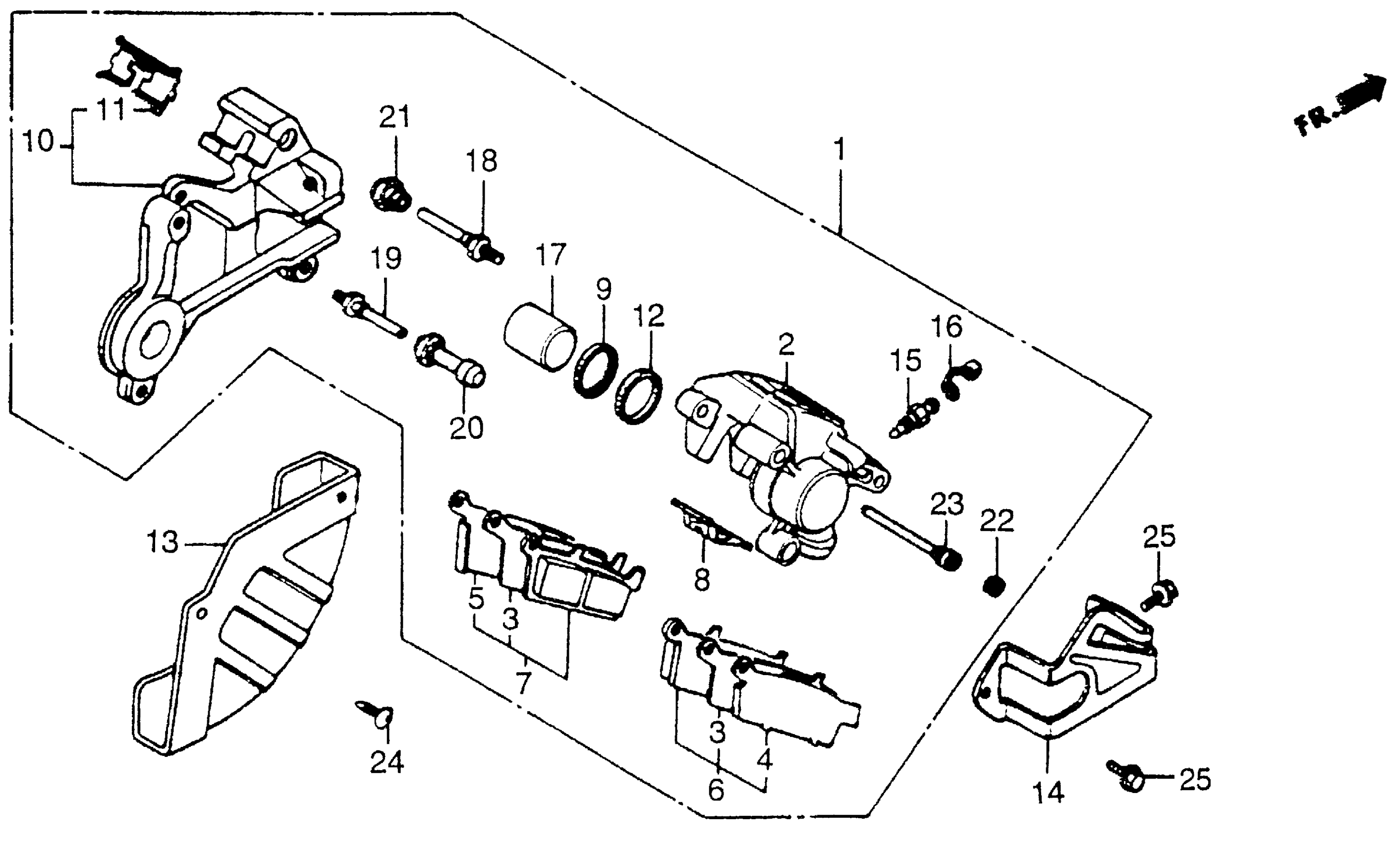

Honda CR250RA (89) MOTORCYCLE, JPN, VIN# JH2ME030-KM100001 RR. BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, RR. BRAKE This part replaces 431A0-KS6-710.

43105-KZ1-415

$34.31

NI

PAD SET, RR. BRAKE This part replaces 43105-KZ1-405.

43105-KZ1-415

$34.31

1

CALIPER ASSY., RR. This part replaces 43100-KS6-831.

43100-KS6-832

Unavailable

2

BODY, RR. CALIPER This part replaces 43101-KS6-701.

43130-KS6-305

Unavailable

2

BODY, RR. CALIPER

43130-KS6-305

Unavailable

3

INSULATOR

43102-KS6-701

Unavailable

4

RETAINER A, PAD

43103-KS6-702

Unavailable

5

RETAINER B, PAD

43104-KS6-702

Unavailable

6

PAD A (SEE KIT P/N--END OF BLOCK)

43105-KS6-702

Unavailable

7

PAD B (SEE KIT P/N--END OF BLOCK)

43106-KS6-702

Unavailable

8

SPRING, PAD This part replaces 43108-KS6-701.

43108-MY6-671

$5.04

8

SPRING, PAD

43108-MY6-671

$5.04

9

DUST SEAL

43109-MA3-006

$5.49

10

BRACKET, RR.

43110-KS6-831

Unavailable

11

RETAINER

43112-KS6-701

$5.80

12

SEAL, PISTON

43209-MA3-006

$6.72

13

COVER, RR. DISK

43330-KS6-700

$23.41

14

GUARD, RR. CALIPER

43340-KS6-831

Unavailable

14

GUARD, RR. CALIPER This part replaces 43340-KS6-830.

43340-KS6-831

Unavailable

15

SCREW, BLEEDER

43352-568-003

Unavailable

16

CAP, BLEEDER

43353-461-771

Unavailable

17

PISTON (NISSIN)

45107-ML4-006

$34.77

18

BOLT A, PIN This part replaces 45131-HA5-671.

45131-HA5-672

$14.17

18

BOLT A, BOLT

45131-HA5-672

$14.17

19

PIN, BOLT

45131-166-016

$7.28

20

BUSH, PIN

45132-166-016

$5.21

21

BOOT B

45133-MA3-006

$5.21

22

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$4.88

22

PLUG, PIN

45203-MG3-016

$4.88

23

PIN, HANGER This part replaces 45215-KA3-731.

45215-KA3-732

$10.56

23

PIN, HANGER

45215-KA3-732

$10.56

24

SCREW, SPECIAL (6X10)

90101-KS6-700

$2.34

25

BOLT, FLANGE (6X12)

96300-06012-00

Unavailable

25

BOLT, FLANGE (6X12) This part replaces 96500-06012-00.

96300-06012-00

Unavailable
