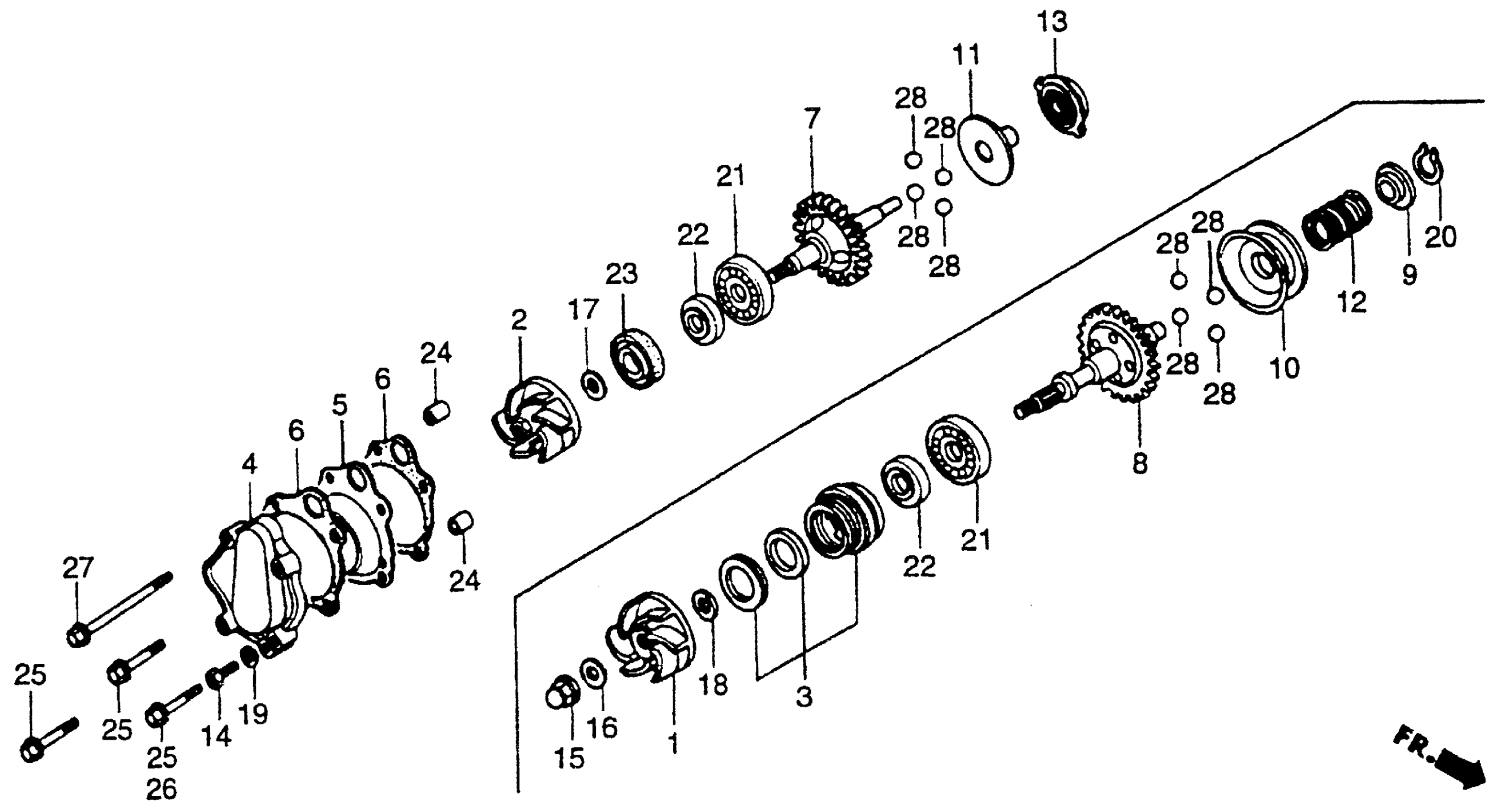

Honda CR250RA (88) MOTORCYCLE, JPN, VIN# JH2ME030-JM000001 TO JH2ME030-JM004826 WATER PUMP Diagram

#

Description
Price

2

IMPELLER, WATER PUMP

19215-KA3-740

$63.20

4

COVER, WATER PUMP (NOT AVAILABLE)

19221-KA4-770

Unavailable

5

SEPARATOR, WATER PUMP

19222-KA4-770

Unavailable

6

GASKET, WATER PUMP COVER

19229-KA4-309

$3.83

6

GASKET, WATER PUMP COVER This part replaces 19229-KA4-770.

19229-KA4-309

$3.83

7

SHAFT, WATER PUMP

19240-KA4-770

Unavailable

11

PLATE, GOVERNOR (NOT AVAILABLE)

19251-KA4-770

Unavailable

13

RELEASE (NOT AVAILABLE) This part replaces 19260-KS7-000.

19260-KS7-010

Unavailable

14

BOLT, OIL CHECK

90037-360-000

$3.26

17

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

19

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

21

BEARING, RADIAL BALL (12X28X7) (TOYO)

91001-KA4-003

$17.08

21

BEARING, RADIAL BALL (12X28X7) (NTN) This part replaces 91001-KA4-004.

91001-KA4-003

$17.08

22

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

22

OIL SEAL (12X22X5)

91201-965-000

$4.06

23

SEAL, WATER PUMP (NOK)

91211-KA3-761

$6.69

24

PIN, DOWEL (8X10) This part replaces 90701-679-000.

94301-08100

$2.25

24

PIN A, DOWEL (8X10)

94301-08100

$2.25

25

BOLT, FLANGE (6X30) This part replaces 96000-06030-07.

96001-06030-07

$1.80

25

BOLT, FLANGE (6X30)

96001-06030-07

$1.80

27

BOLT, FLANGE (6X75)

96001-06075-07

$1.97

28

BALL, STEEL (#13) (13/32)

96211-13000

$1.49
