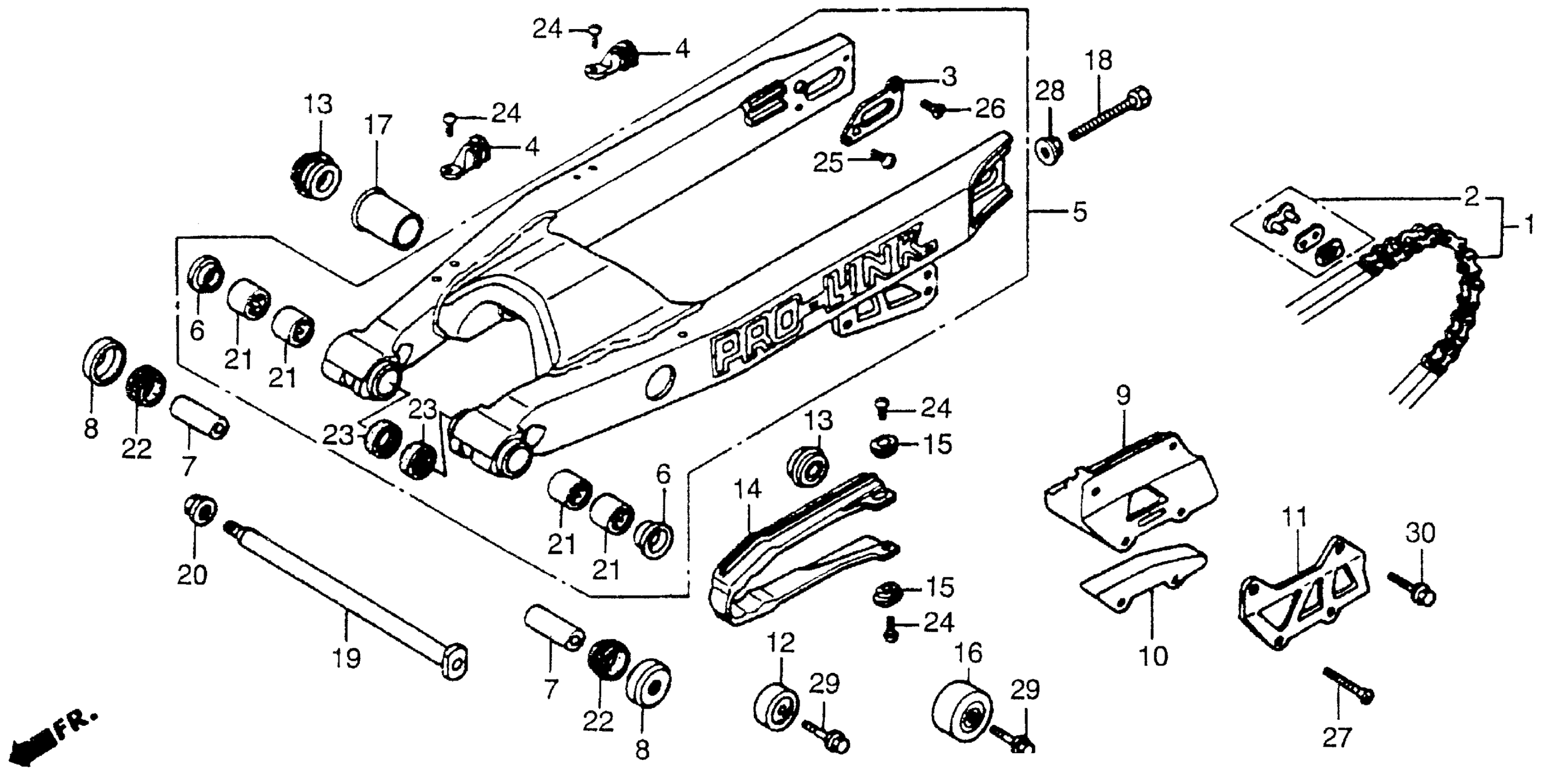

Honda CR250RA (88) MOTORCYCLE, JPN, VIN# JH2ME030-JM000001 TO JH2ME030-JM004826 SWINGARM 88 Diagram

#

Description
Price

1

CHAIN, DRIVE | (Optional).

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40530-KA4-731.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40530-KA4-732.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40530-KA4-733.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-741.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-742.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-743.

405W3-KA5-505

Unavailable

2

MASTER LINK (TAKASAGO)

40531-KA4-731

Unavailable

2

MASTER LINK (DAIDO)

40531-KA4-732

Unavailable

3

WASHER, RR. SWINGARM (INNER)

42307-KS6-830

Unavailable

4

GUIDE, RR. BRAKE HOSE

43468-KS6-700

$11.31

5

SWINGARM ASSY., RR. (WL)

52000-KS7-830

Unavailable

6

BUSH, PIVOT THRUST

52109-KS7-830

Unavailable

7

COLLAR, RR. SWINGARM

52141-KS7-830

Unavailable

8

CAP, DUST SEAL This part replaces 52144-KS7-830.

52144-KS7-831

Unavailable

8

CAP, DUST SEAL

52144-KS7-831

Unavailable

9

GUIDE, CHAIN

52146-KS6-700

Unavailable

10

SLIDER, CHAIN GUIDE

52147-KS6-701

$25.73

11

PLATE, CHAIN GUIDE (NOT AVAILABLE)

52156-KS6-700

Unavailable

12

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

13

CAP, RR. SWINGARM PIPE

52161-KS7-831

$5.04

14

SLIDER, CHAIN

52170-KS7-830

$42.10

15

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

16

ROLLER, CHAIN (UPPER)

52175-KA3-831

Unavailable

17

COLLAR, GUIDE

52190-KS7-830

Unavailable

18

BOLT, HEX. (8X49)

90106-KS6-700

$5.69

19

BOLT, RR. SWINGARM

90117-KS7-831

$53.97

20

NUT, RR. SWINGARM PIVOT

90301-KS7-830

$11.52

21

BEARING, NEEDLE (22X28X20)

91071-KS7-831

Unavailable

22

DUST SEAL (34X38.8X8)

91253-KS7-831

Unavailable

23

DUST SEAL (22X28X5)

91254-KS7-831

$8.66

24

SCREW, PAN (5X8)

93500-05008-0A

$1.49

25

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

25

SCREW, PAN (6X25)

93500-06025-0A

$1.49

26

SCREW, FLAT (5X10)

93600-05010-0A

$1.49

27

SCREW, FLAT (6X40)

93600-06040-0A

$1.49

28

NUT, FLANGE (8MM)

94050-08000

$1.49

29

BOLT, FLANGE (8X35)

96300-08035-00

$1.95

30

BOLT, FLANGE (6X20)

96300-06020-00

$1.49

30

BOLT, FLANGE (6X20) This part replaces 96500-06020-00.

96300-06020-00

$1.49
