- CR250RA (88) MOTORCYCLE, JPN, VIN# JH2ME030-JM000001 TO JH2ME030-JM004826
SHOCK ABSORBER 88

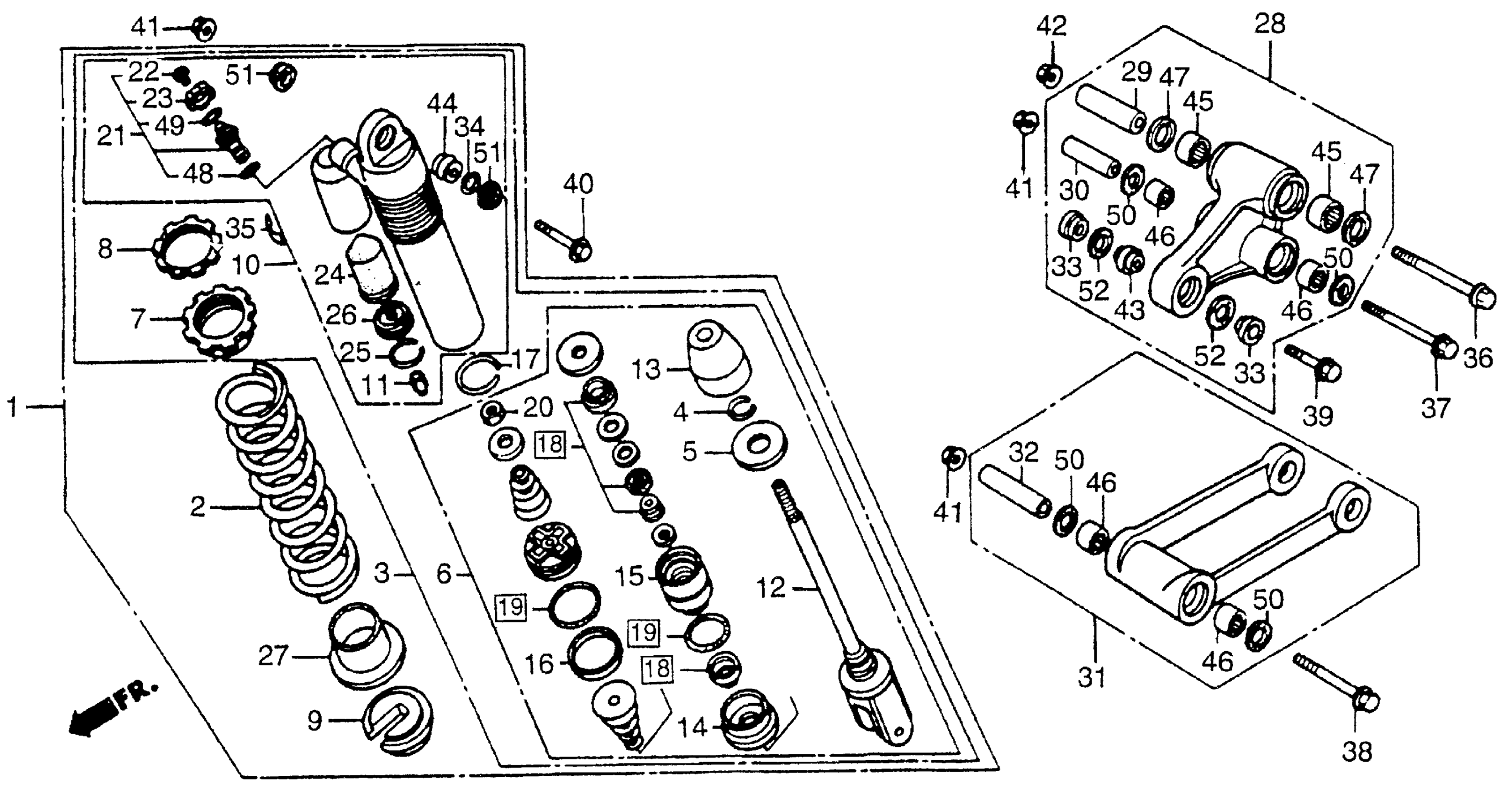

Honda CR250RA (88) MOTORCYCLE, JPN, VIN# JH2ME030-JM000001 TO JH2ME030-JM004826 SHOCK ABSORBER 88 Diagram
#
1
SHOCK ABSORBER ASSY., RR. (SHOWA)
52400-KS7-841
Unavailable
2
SPRING, RR. SHOCK ABSORBER (54.92N/MM,5.6KG/MM) (SHOWA) (YELLOW)
52401-KS7-831
Unavailable
2
SPRING, RR. SHOCK ABSORBER (58.84N/MM,6.0KGF/MM) (SHOWA) (BROWN) | (Optional).
52403-KS7-305
Unavailable
3
DAMPER, RR. (SHOWA)
52410-KS7-841
Unavailable
4
RING C, STOPPER (SHOWA)
52418-KA4-831
Unavailable
5
WASHER
52419-KS7-701
Unavailable
6
ROD, PISTON (SHOWA)
52421-KS7-831
Unavailable
9
STOPPER, SPRING SEAT
52424-KS7-701
Unavailable
10
CASE, SHOCK ABSORBER (SHOWA)
52425-KS7-831
Unavailable
12
ROD (SHOWA)
52426-KS7-831
Unavailable
13
RUBBER, STOPPER (NOT AVAILABLE)
52427-KS7-701
Unavailable
14
PLATE, END (SHOWA)
52428-KA4-832
Unavailable
15
CASE, ROD GUIDE (SHOWA)
52429-ML3-841
Unavailable
17
RING, STOPPER (SHOWA)
52435-KS7-831
Unavailable
18
OIL SEAL SET (SHOWA)
52436-ML3-305
Unavailable
21
BOLT, PLUG (SHOWA)
52440-KS7-831
Unavailable
22
SCREW, CROSS-RECESSED HEAD MACHINE
52448-KS7-003
Unavailable
23
PLATE B, ADJUSTING (SHOWA)
52449-ML3-841
Unavailable
26
CAP, CHAMBER (SHOWA)
52453-KS7-831
Unavailable
27
SEAT, SPRING
52458-KS7-701
Unavailable
28
ARM ASSY., CUSHION This part replaces 52460-KS7-831.
52460-KS7-832
Unavailable
28
ARM ASSY., CUSHION
52460-KS7-832
Unavailable
29
COLLAR, CUSHION ARM PIVOT
52463-KS7-830
Unavailable
30
COLLAR, CUSHION ARM (NOT AVAILABLE)
52464-KS7-830
Unavailable
31
ROD ASSY., RUBBER This part replaces 52470-KS7-831.
52470-KS7-832
Unavailable
31
ROD ASSY., RUBBER
52470-KS7-832
Unavailable
32
COLLAR, CONNECTING ROD PIVOT (NOT AVAILABLE)
52473-KS7-830
Unavailable
33
COLLAR, CUSHION ARM (LOWER)
52486-KS7-830
Unavailable
35
LABEL, RR. DAMPER WARNING
87516-KS7-771
Unavailable
36
BOLT, FLANGE (12X105) This part replaces 90128-KA3-831.
90128-KA4-003
Unavailable
36
BOLT, FLANGE (12X105)
90128-KA4-003
Unavailable
37
BOLT, FLANGE (10X90)
90102-KBS-900
Unavailable
37
BOLT, FLANGE (10X90) | Use up to Frame SN JM004557 This part replaces 90129-KS7-831.
90102-KBS-900
Unavailable
37
BOLT, FLANGE (10X90) This part replaces 90129-KS7-832.
90102-KBS-900
Unavailable
38
BOLT, FLANGE (10X106.5) (SATO RASHI) | Use up to Frame SN JM004557 This part replaces 90130-KS7-831.
90130-KS7-832
Unavailable
38
BOLT, FLANGE (10X106.5) (SATO RASHI)
90130-KS7-832
Unavailable
39
BOLT, FLANGE (10X38)
90153-KS7-830
Unavailable
40
BOLT, FLANGE (10X52)
90154-KA3-830
Unavailable
43
BEARING, SPHERICAL (12) This part replaces 91074-GC4-831.
91077-GC4-831
Unavailable
43
BEARING, SPHERICAL (12)
91077-GC4-831
Unavailable
45
BEARING, NEEDLE (20X26X16) (KOYO) (NOT AVAILABLE) This part replaces 91078-KS7-830.
91078-KS7-833
Unavailable
45
BEARING, NEEDLE (20X26X16) (KOYO) (NOT AVAILABLE) This part replaces 91078-KS7-831.
91078-KS7-833
Unavailable
45
BEARING, NEEDLE (20X26X16) (KOYO) (NOT AVAILABLE) This part replaces 91078-KS7-832.
91078-KS7-833
Unavailable
45
BEARING, NEEDLE (20X26X16) (KOYO) (NOT AVAILABLE)
91078-KS7-833
Unavailable
46
BEARING, NEEDLE (18X24X16) (NIPPON)
91079-KS7-832
Unavailable
46
BEARING, NEEDLE (18X24X16) (NIPPON) This part replaces 91079-KS7-833.
91079-KS7-832
Unavailable
48
O-RING (19.8X2.4)
91256-GE2-003
Unavailable
50
DUST SEAL (18X25X5)
91261-KB7-981
Unavailable
50
DUST SEAL (18X25X5) This part replaces 91261-KS7-831.
91261-KB7-981
Unavailable
52
DUST SEAL, CUSHION (LOWER)
91351-KS7-831
Unavailable
