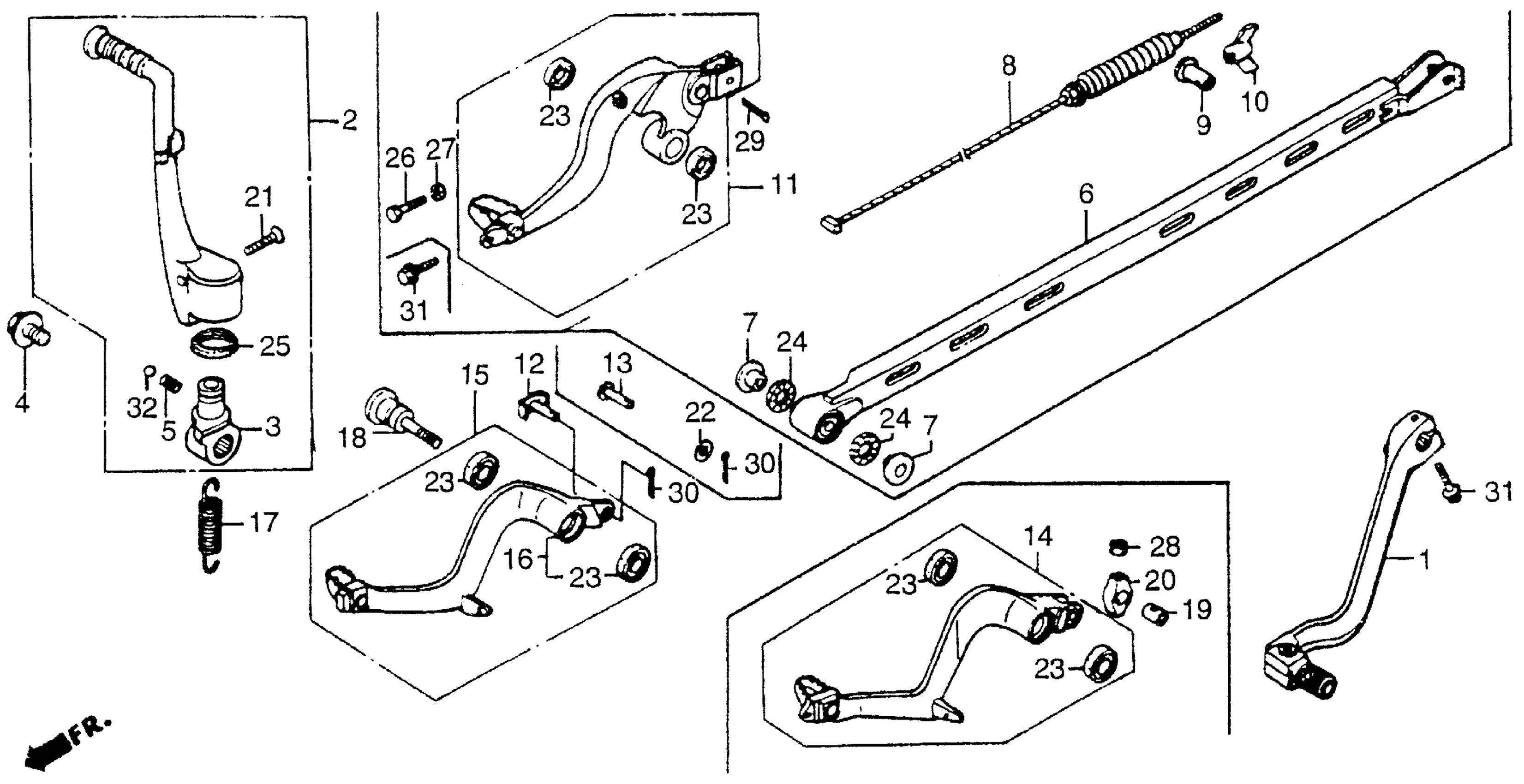

Honda CR250RA (88) MOTORCYCLE, JPN, VIN# JH2ME030-JM000001 TO JH2ME030-JM004826 CHANGE PEDAL Diagram

PEDAL, GEARSHIFT This part replaces 24700-KS7-830.

24700-ML3-600

Unavailable

PEDAL, GEARSHIFT This part replaces 24700-KS7-831.

24700-ML3-600

Unavailable

PEDAL, GEARSHIFT

24700-ML3-600

Unavailable

ARM ASSY., KICK STARTER

28300-KS7-831

Unavailable

JOINT, KICK ARM (NOT AVAILABLE)

28302-KS7-831

Unavailable

BOLT, KICK JOINT

28306-KAE-000

$11.89

BOLT, KICK JOINT This part replaces 28306-KA3-830.

28306-KAE-000

$11.89

SPRING, KICK STARTER

28333-KK0-000

$2.51

PIN, BRAKE ROD

46503-371-000

Unavailable

PEDAL, RR. BRAKE

46510-KS7-830

Unavailable

SPRING, BRAKE PEDAL This part replaces 46511-KS6-701.

46511-MN8-700

Unavailable

SPRING, BRAKE PEDAL

46511-MN8-700

Unavailable

SHAFT, BRAKE PIVOT This part replaces 46513-KS7-700.

46513-MAC-680

$22.26

BOLT, KICK ARM This part replaces 90101-KA4-700.

90101-MAC-680

$5.92

BOLT, KICK ARM

90101-MAC-680

$5.92

WASHER (7X12)

90501-310-000

$1.74

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

PIN, COTTER (2.0X12)

94201-20120

$1.49

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
