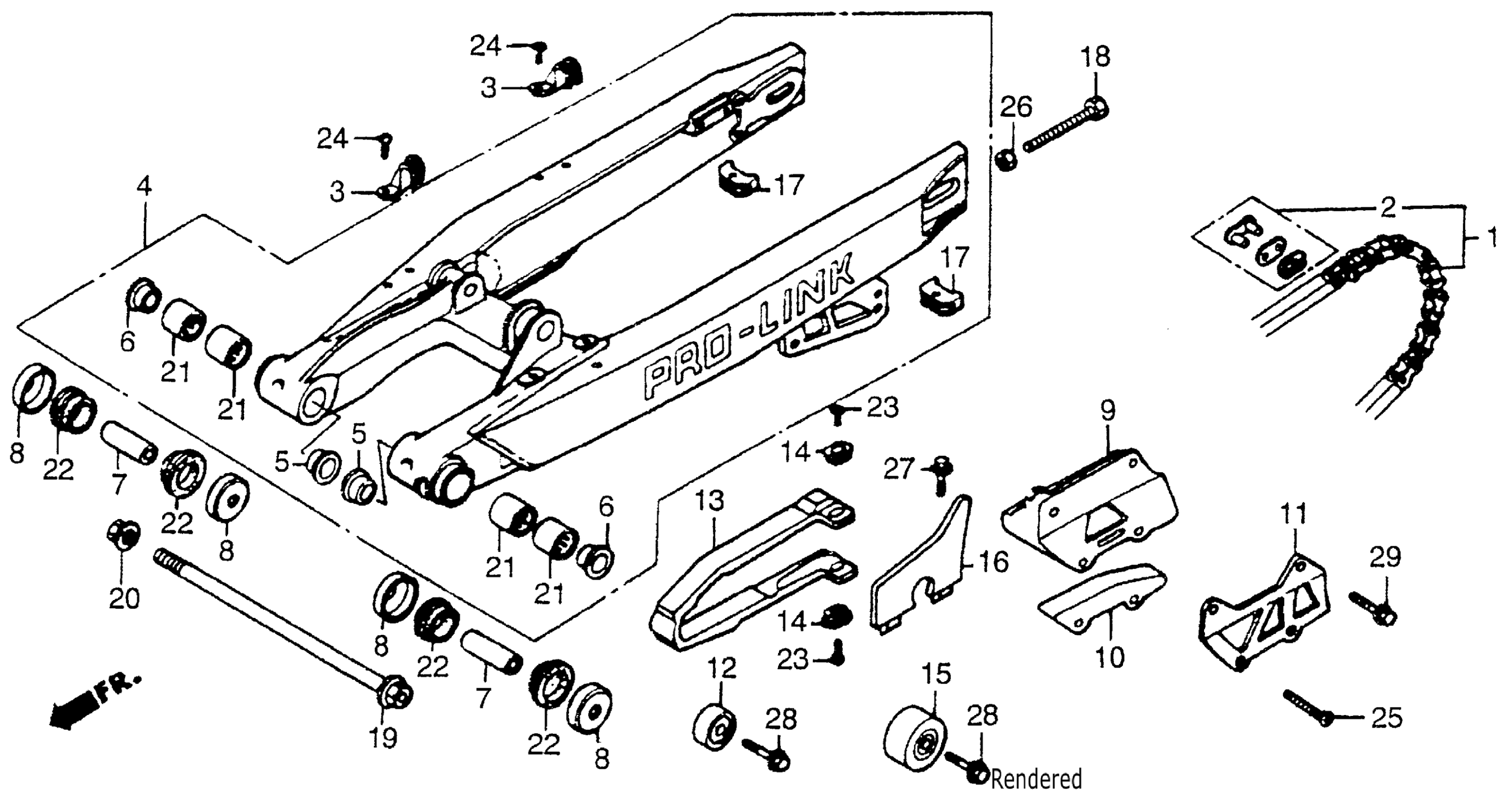

Honda CR250RA (87) MOTORCYCLE, JPN, VIN# JH2ME030-HC900016 TO JH2ME030-HC905384 SWINGARM 87 Diagram

#

Description
Price

1

CHAIN, DRIVE

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional).

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-731.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-732.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-733.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40530-KA5-741.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40530-KA5-742.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40530-KA5-743.

405W3-KA5-505

Unavailable

2

MASTER LINK (TAKASAGO)

40531-KA4-731

Unavailable

2

MASTER LINK (DAIDO)

40531-KA4-732

Unavailable

3

GUIDE, RR. BRAKE HOSE

43468-KS6-700

$11.31

4

SWINGARM ASSY., RR. (WL)

52000-KS6-700

Unavailable

5

BUSH, PIVOT THRUST (IN.)

52108-KS6-701

Unavailable

6

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

7

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52141-KA3-830

$14.71

8

CAP, DUST SEAL

52144-KA3-731

$14.60

9

GUIDE, CHAIN

52146-KS6-700

Unavailable

10

SLIDER, CHAIN GUIDE

52147-KS6-701

$25.73

11

PLATE, CHAIN GUIDE (NOT AVAILABLE)

52156-KS6-700

Unavailable

12

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

13

SLIDER, CHAIN

52170-KS6-700

Unavailable

14

WASHER, CHAIN SLIDER

52171-KA3-830

$2.89

15

ROLLER, CHAIN (UPPER)

52175-KA3-831

Unavailable

16

SPLASH GUARD, CHAIN (NOT AVAILABLE)

52180-KS6-700

Unavailable

17

CAP, RR. SWINGARM FRAME

52190-KS6-700

Unavailable

18

BOLT, HEX. (8X49)

90106-KS6-700

$5.69

19

BOLT, RR. SWINGARM

90117-KA3-831

Unavailable

20

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

21

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-KS6-003.

91071-KS6-004

$21.15

21

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-KS6-004

$21.15

22

DUST SEAL (32X36.8X8) (ARAI)

91253-KA3-731

Unavailable

22

DUST SEAL

91253-KA4-701

$12.86

22

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

23

SCREW, PAN (5X6)

93500-05006-0H

$1.49

24

SCREW, PAN (5X8)

93500-05008-0A

$1.49

25

SCREW, FLAT (6X40)

93600-06040-0A

$1.49

26

NUT, FLANGE (8MM)

94050-08000

$1.49

27

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

27

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

28

BOLT, FLANGE (8X35)

96300-08035-00

$1.95

29

BOLT, FLANGE (6X20)

96300-06020-00

$1.49

29

BOLT, FLANGE (6X20) This part replaces 96500-06020-00.

96300-06020-00

$1.49
