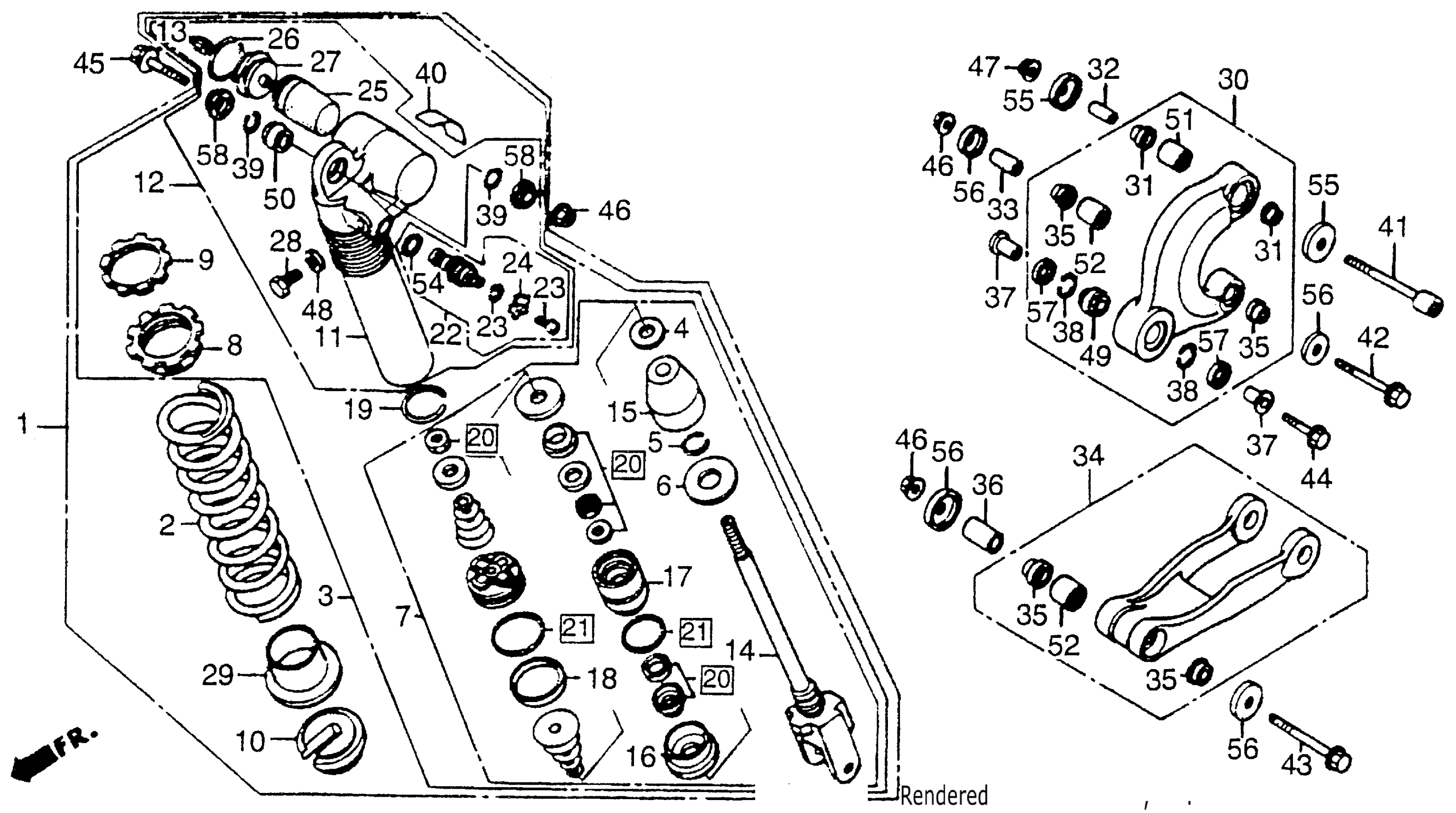

Honda CR250RA (87) MOTORCYCLE, JPN, VIN# JH2ME030-HC900016 TO JH2ME030-HC905384 SHOCK ABSORBER 87 Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA)

52400-KS7-771

Unavailable

2

SPRING, RR. SHOCK ABSORBER (47.07N/MM,4.8KG/MM) (SHOWA) (WHITE) | (Optional).

52401-KS7-751

Unavailable

2

SPRING, RR. SHOCK ABSORBER (50.99N/MM,5.2KG/MM) (SHOWA) (PINK) (NOT AVAILABLE)

52401-KS7-771

Unavailable

2

SPRING, RR. SHOCK ABSORBER (55.0N/MM,5.6KGF/MM) (SHOWA) (GREEN) | (Optional).

52401-ML3-771

Unavailable

3

DAMPER, RR. (SHOWA) (NOT AVAILABLE)

52410-KS7-771

Unavailable

4

SEAT, RUBBER (SHOWA)

52417-KA4-831

Unavailable

5

RING C, STOPPER (SHOWA)

52418-KA4-831

Unavailable

6

WASHER

52419-KS7-701

Unavailable

7

ROD, PISTON (SHOWA) (NOT AVAILABLE)

52421-KS7-701

Unavailable

8

ADJUSTER, SPRING

52422-KS7-701

$33.79

9

NUT, ADJUSTER

52423-KS7-701

$26.16

10

STOPPER, SPRING SEAT

52424-KS7-701

Unavailable

11

CASE, SHOCK ABSORBER (SHOWA) This part replaces 52425-KS7-701.

52425-KS7-702

Unavailable

11

CASE, SHOCK ABSORBER (SHOWA)

52425-KS7-702

Unavailable

12

CASE, SHOCK ABSORBER (SHOWA)

52425-KS7-702

Unavailable

13

CAP, AIR VALVE

52425-381-771

$5.05

14

ROD

52426-KS7-701

Unavailable

15

RUBBER, STOPPER (NOT AVAILABLE)

52427-KS7-701

Unavailable

16

PLATE, END (SHOWA)

52428-KA4-832

Unavailable

17

CASE, ROD GUIDE (SHOWA) (NOT AVAILABLE)

52429-KA4-831

Unavailable

18

RING, PISTON (SHOWA)

52431-KA4-831

$15.90

19

RING, STOPPER (SHOWA)

52435-KA4-831

Unavailable

20

OIL SEAL SET (SHOWA)

52436-KA4-841

Unavailable

21

O-RING SET (SHOWA)

52437-KA4-841

$9.52

22

BOLT, PLUG (SHOWA)

52440-KS7-701

Unavailable

23

SCREW, CROSS-RECESSED HEAD MACHINE

52448-KS7-003

Unavailable

24

PLATE B, ADJUSTING

52449-KS7-701

Unavailable

25

BLADDER (SHOWA) (NOT AVAILABLE)

52451-KS7-701

Unavailable

26

RING, STOPPER (SHOWA)

52452-KS7-701

Unavailable

27

CAP, CHAMBER (SHOWA)

52453-KS7-701

Unavailable

28

BOLT, DRAIN (SHOWA)

52454-KS7-701

Unavailable

29

SEAT, SPRING

52458-KS7-701

Unavailable

30

ARM ASSY., SHOCK ABSORBER (NOT AVAILABLE)

52460-KA3-831

Unavailable

31

BUSH, DAMPER ARM

52462-KA3-831

Unavailable

32

COLLAR, CUSHION ARM PIVOT

52463-KA3-830

Unavailable

33

COLLAR, CUSHION ARM

52464-KA3-830

Unavailable

34

ROD ASSY., RUBBER CONNECTING

52470-KS6-000

Unavailable

35

BUSH, SHOCK CONNECTING ROD THRUST

52472-KA3-831

Unavailable

36

COLLAR, CONNECTING ROD PIVOT

52473-KA3-830

Unavailable

37

COLLAR, SHOCK ABSORBER (UPPER)

52486-KA3-731

Unavailable

38

RING, STOPPER

52487-KA3-731

Unavailable

39

RING, STOPPER (SHOWA)

52487-KA4-831

$3.92

40

LABEL, RR. DAMPER WARNING

87516-KS7-771

Unavailable

41

BOLT, SOCKET (12X86)

90128-KS6-700

Unavailable

42

BOLT, FLANGE (10X77)

90129-KF0-000

$14.86

43

BOLT, FLANGE (10X83)

90130-KS6-700

Unavailable

44

BOLT, FLANGE (10X48)

90153-KA3-730

Unavailable

45

BOLT, FLANGE (10X52)

90154-KA3-830

Unavailable

46

NUT, AXLE (10MM)

90304-GA6-003

$2.89

47

NUT, FLANGE (12MM) This part replaces 90306-KA4-003.

90306-181-761

$6.08

47

NUT, FLANGE (12MM)

90306-181-761

$6.08

48

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

49

BEARING, SPHERICAL (14MM) This part replaces 91077-KA3-731.

91077-KN5-004

$22.62

49

BEARING, SPHERICAL (14MM)

91077-KN5-004

$22.62

50

BEARING, SPHERICAL (10.1MM)

91077-KS7-013

$40.64

51

BEARING, NEEDLE (19.1X26.1X27) (TOYO)

91078-KA3-831

Unavailable

52

BEARING, NEEDLE (17.5X24.5X22)

91079-KA3-831

$27.76

53

O-RING (15.5X1.5)

91256-GC5-003

$1.51

54

O-RING (19.8X2.4)

91256-GE2-003

Unavailable

55

SEAL, CUSHION ARM PIVOT

91261-KS6-701

$8.62

56

SEAL, RUBBER CONNECTING ROD PIVOT

91262-KA3-831

Unavailable

57

DUST SEAL, RR. SHOCK (UPPER)

91351-KA3-731

Unavailable

58

DUST SEAL, RR. SHOCK (UPPER) (SHOWA)

91351-KS7-003

$5.12
