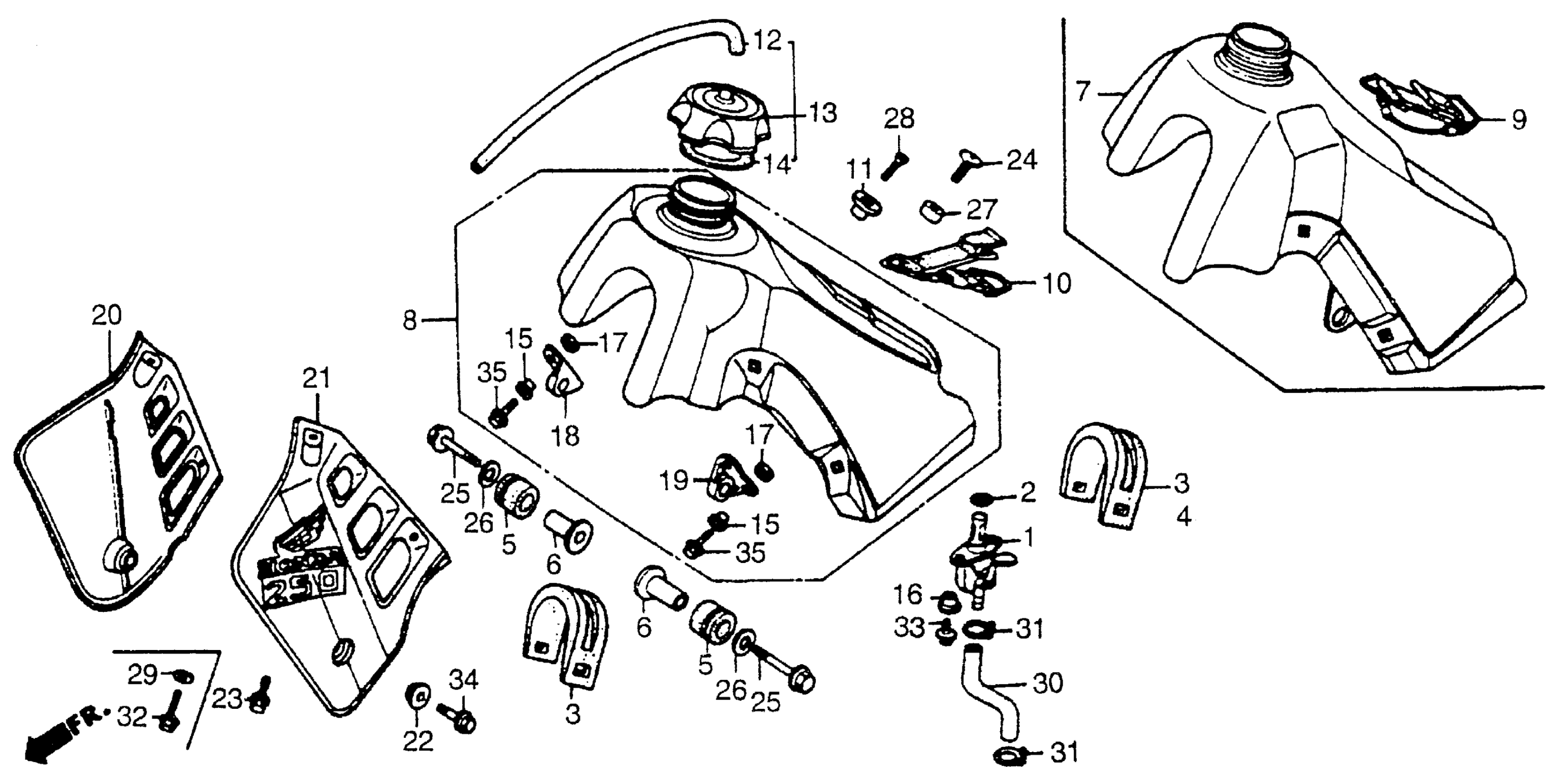

Honda CR250RA (87) MOTORCYCLE, JPN, VIN# JH2ME030-HC900016 TO JH2ME030-HC905384 FUEL TANK 85-89 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-KA3-731.

16950-ML3-911

$45.86

1

PETCOCK ASSY. This part replaces 16950-KA3-732.

16950-ML3-911

$45.86

1

PETCOCK ASSY.

16950-ML3-911

$45.86

2

O-RING (11.8X3.55)

16997-467-000

$2.01

3

RUBBER, TANK SETTING (B)

17506-KA3-830

Unavailable

4

RUBBER, RR. FUEL TANK

17506-KS7-700

Unavailable

5

RUBBER, TANK MOUNTING

17508-GBF-830

$5.50

5

RUBBER, TANK MOUNTING This part replaces 17508-KS6-700.

17508-GBF-830

$5.50

6

COLLAR, TANK SETTING

17509-KS6-700

$8.20

8

TANK, FUEL (NOT AVAILABLE)

17510-KS7-700

Unavailable

10

BAND, RR. TANK

17516-KS6-700

Unavailable

11

COLLAR, FR. SEAT

17518-KS6-700

$6.26

12

TUBE, FUEL CAP BREATHER

17521-429-000

$6.49

13

CAP ASSY., FUEL TANK This part replaces 17620-KA3-730.

17620-ML3-840

Unavailable

13

CAP ASSY., FUEL TANK

17620-ML3-840

Unavailable

14

GASKET, FUEL TANK CAP

17624-KA4-000

$5.54

15

COLLAR, FUEL TANK SETTING

17626-KA4-700

$6.25

16

COLLAR, FUEL TANK SETTING

17626-467-000

$4.45

17

RUBBER, FR. FUEL TANK

17627-467-000

$2.17

18

BRACKET, R. FR. FUEL TANK

17634-KS6-701

Unavailable

19

BRACKET, L. FR. FUEL TANK

17635-KS6-701

Unavailable

20

SHROUD SUB-ASSY., R. RADIATOR (NOT AVAILABLE)

19071-KS7-700

Unavailable

21

SHROUD SUB-ASSY., L. RADIATOR

19072-KS7-700

Unavailable

22

COLLAR (6X23)

19509-KA3-730

$6.51

24

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-830.

90131-S0X-A00

$1.17

24

SCREW, TRUSS (M6X16)

90131-S0X-A00

$1.17

25

BOLT, FLANGE (6X40)

90137-KA3-830

$2.64

27

COLLAR (6.2X6)

90516-KA3-830

Unavailable

28

SCREW, FLAT (6X16)

93600-06016-0A

$0.90

29

WASHER, FR. FENDER SETTING

90556-044-000

$3.39

30

BULK HOSE, FUEL (7.5X8000) (7.3X100)

95001-75008-60M

$93.20

31

CLIP, TUBE (B12)

95002-02120

Unavailable

32

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.64

32

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

33

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.96

33

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

34

BOLT, FLANGE (6X20)

96001-06020-00

$1.13

35

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.13

35

BOLT, FLANGE (6X20)

96001-06020-00

$1.13
