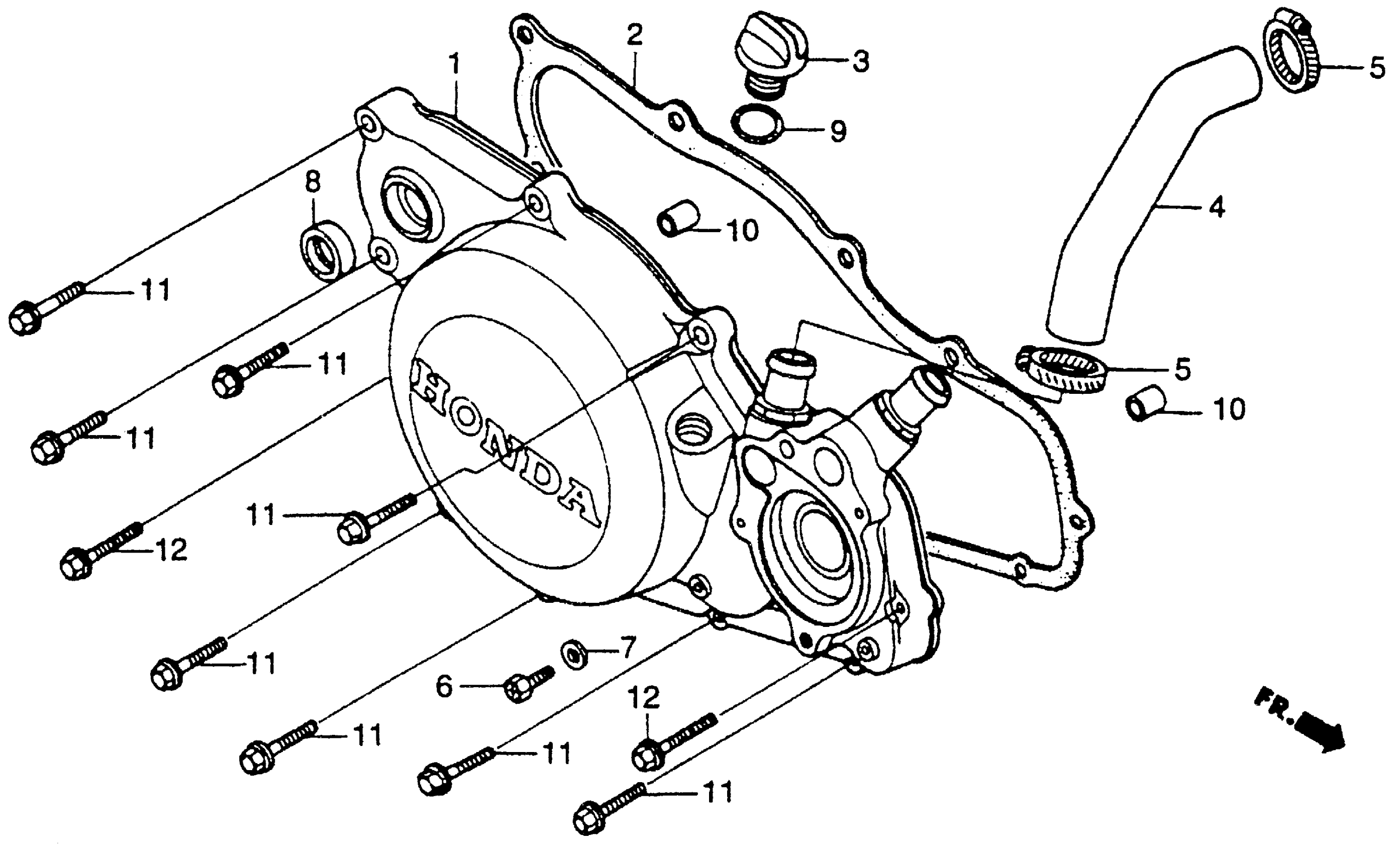

Honda CR250RA (86) MOTORCYCLE, JPN, VIN# JH2ME030-GC800021 TO JH2ME030-GC808068 RIGHT CRANKCASE COVER 84-86 Diagram

COVER, R. CRANKCASE

11340-KS7-000

Unavailable

GASKET, R. CRANKCASE COVER

11395-KS7-306

$12.08

GASKET, R. CRANKCASE COVER This part replaces 11395-KS7-000.

11395-KS7-306

$12.08

CAP, OIL FILLER

15611-KA3-710

$13.62

HOSE, WATER

19501-KA4-770

Unavailable

CLAMP, WATER HOSE

19506-KA4-000

$9.18

BOLT, OIL CHECK

90037-360-000

$3.26

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

OIL SEAL (20X28X5) This part replaces 91202-KA4-003.

91204-KF0-003

$6.54

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

O-RING (11.9X2.2)

91370-461-000

$2.39

PIN A, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.49

BOLT, FLANGE (6X40)

96001-06040-07

$1.49
