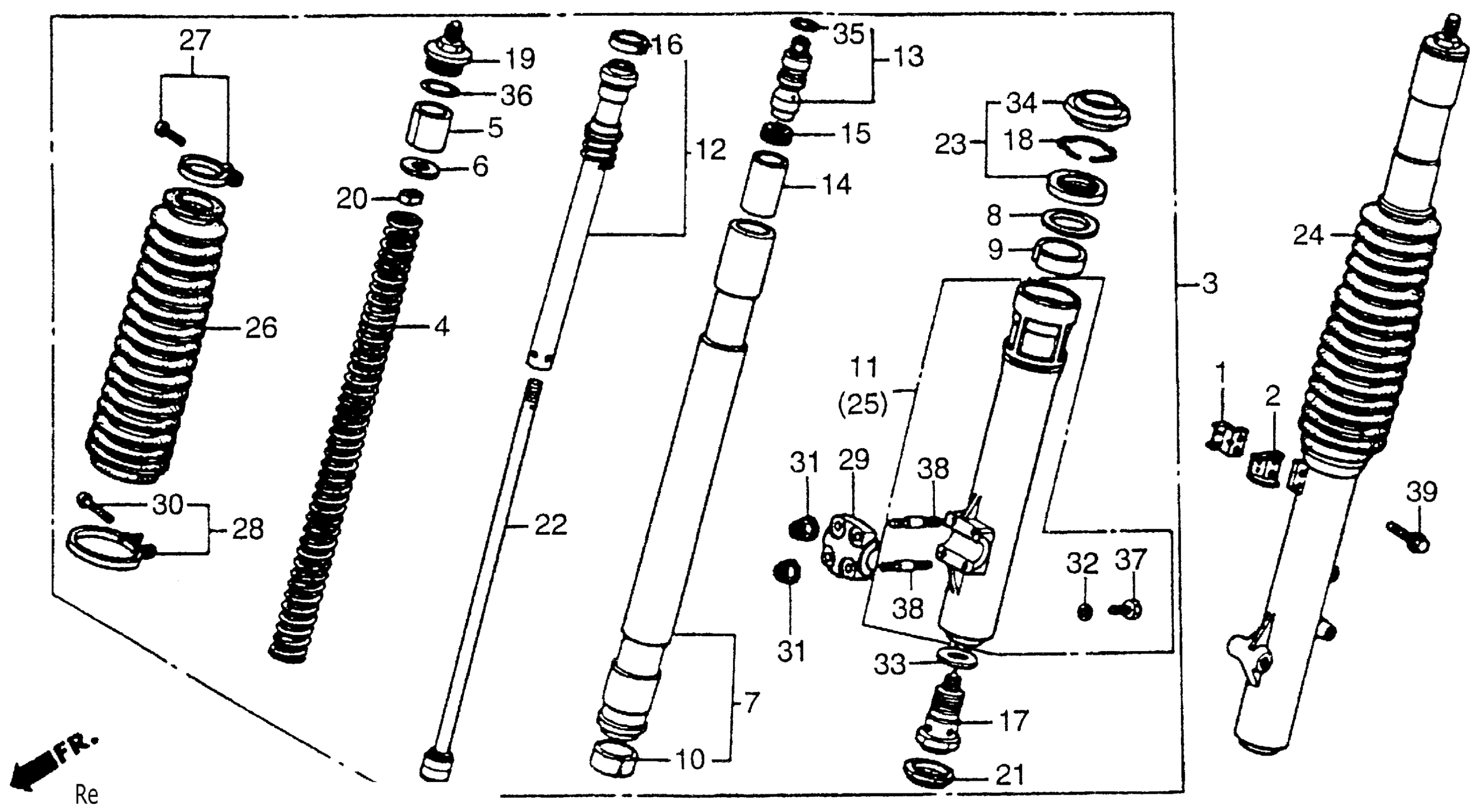

Honda CR250RA (86) MOTORCYCLE, JPN, VIN# JH2ME030-GC800021 TO JH2ME030-GC808068 FR. FORK 86-88 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

3

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-KS7-003

Unavailable

4

SPRING, FR. FORK (3.48N/MM) (0.355KGF/MM) (SHOWA)

51401-KS7-003

Unavailable

4

SPRING, FR. FORK (3.63N/MM,0.375KGF/MM) (SHOWA) (NOT AVAILABLE) | (Optional).

51401-ML3-671

Unavailable

4

SPRING, FR. FORK (3.48N/MM) (0.335KG/MM) (SHOWA) | (Optional).

51402-KS7-305

Unavailable

5

SPACER, SPRING (SHOWA) (NOT AVAILABLE)

51404-KS7-003

Unavailable

6

SEAT, SPRING

51405-KA4-711

$6.23

7

PIPE, FR. FORK This part replaces 51410-KS7-003.

51410-MN1-682

$438.77

7

PIPE, FR. FORK This part replaces 51410-MN1-681.

51410-MN1-682

$438.77

8

RING, BACK-UP

51412-KA4-711

$9.65

9

BUSH, GUIDE This part replaces 51414-MG7-003.

51414-MAZ-751

$7.14

9

BUSH, GUIDE

51414-MAZ-751

$7.14

9

BUSH, GUIDE This part replaces 51414-MN1-671.

51414-MAZ-751

$7.14

10

BUSH, SLIDER This part replaces 51415-KA4-711.

51415-MN1-671

$15.97

10

BUSH, SLIDER

51415-MN1-671

$15.97

11

CASE, R. (LOWER) (SHOWA) This part replaces 51420-KS7-003.

51420-KS7-023

$497.48

11

CASE, R. (LOWER) (SHOWA) This part replaces 51420-KS7-013.

51420-KS7-023

$497.48

11

CASE, R. (LOWER) (SHOWA)

51420-KS7-023

$497.48

12

CYLINDER (SHOWA)

51430-KS7-003

Unavailable

13

PIECE (LOWER) (SHOWA)

51431-KS7-003

Unavailable

14

PIECE, OIL LOCK (SHOWA)

51432-KS7-003

$24.92

15

END, PIPE (SHOWA)

51433-KS7-003

Unavailable

16

BUSH, CYLINDER

51435-KS7-003

$21.68

17

BOLT, CENTER (SHOWA)

51441-KS7-003

$80.07

18

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

19

BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE)

51450-KS7-003

Unavailable

20

NUT, LOCK (SHOWA)

51451-KS7-003

Unavailable

21

CAP, FR. FORK (SHOWA)

51461-KA4-831

$4.48

22

ROD, PISTON (SHOWA) (NOT AVAILABLE)

51480-KS7-003

Unavailable

23

SEAL SET, FR. FORK (SHOWA)

51490-KA4-831

$30.52

24

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-KS7-003

Unavailable

25

CASE, L. (LOWER) (NOT AVAILABLE)

51520-KS7-003

Unavailable

26

BOOT, FR. FORK (SHOWA)

51611-KA4-831

$55.90

27

BAND, BOOT (UPPER) (SHOWA)

51612-KA4-831

$10.67

28

BAND, BOOT (LOWER) (SHOWA) This part replaces 51613-KA4-711.

51613-MK2-003

$8.78

28

BAND, BOOT (LOWER)

51613-MK2-003

$8.78

29

HOLDER, AXLE (SHOWA)

51634-KA4-831

$32.28

29

HOLDER, AXLE

51634-MV1-003

Unavailable

30

SCREW, PAN (3.5X15) (NOT AVAILABLE)

90202-KA4-711

Unavailable

31

NUT, U (6MM)

90301-473-003

$4.07

32

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

33

WASHER, SPECIAL (SHOWA)

90544-KS7-003

$2.92

34

DUST SEAL, FR. FORK

91254-KA4-831

$16.28

35

O-RING (15.5X1.5)

91256-GC5-003

$1.51

36

O-RING (35.2X2.4)

91356-KA4-711

$3.76

37

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

37

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

38

BOLT, STUD (6X25)

92900-06025-0E

$1.49

39

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

39

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
