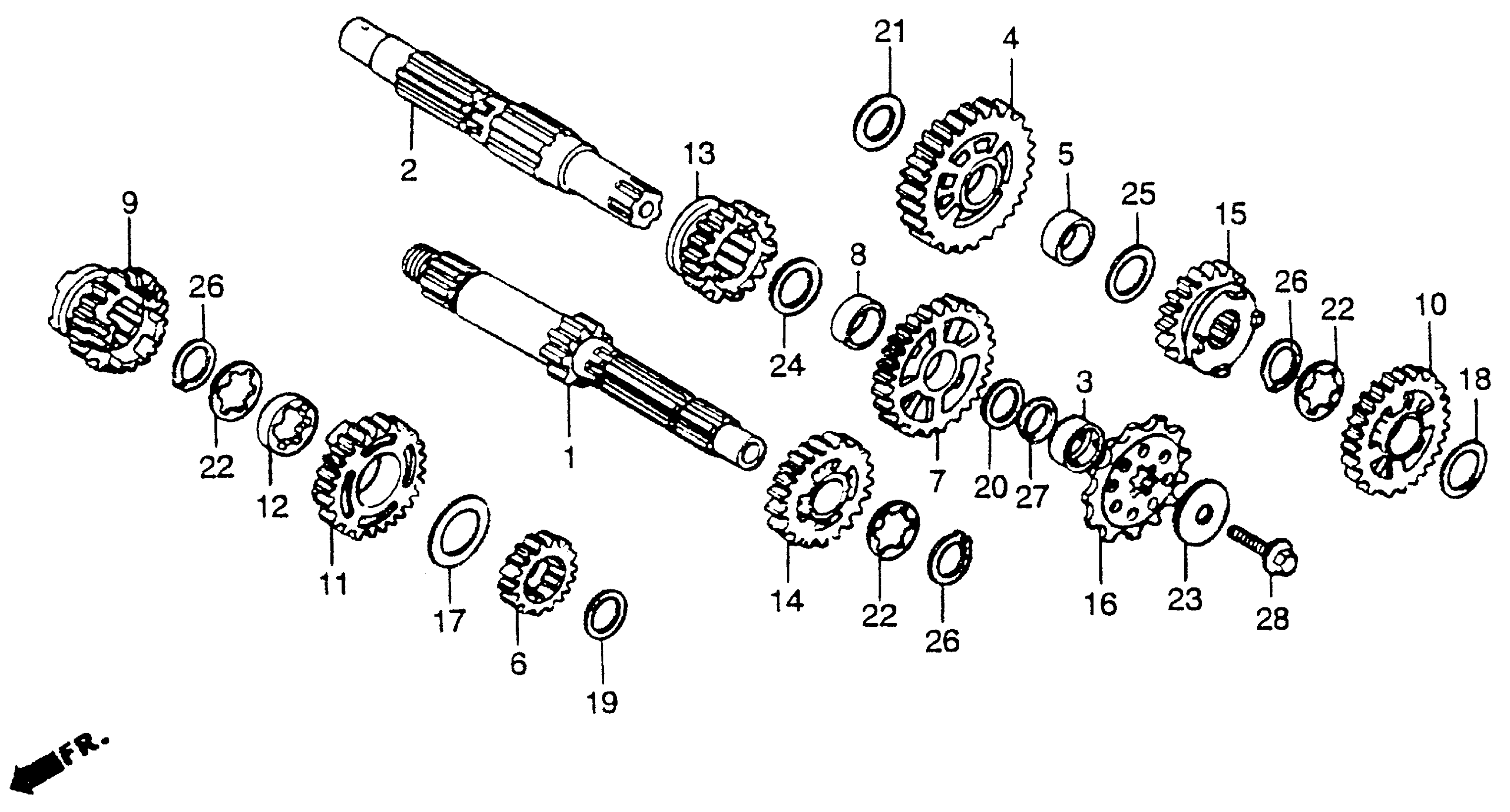

Honda CR250RA (85) MOTORCYCLE, JPN, VIN# JH2ME030-FC700017 TO JH2ME030-PC708871 TRANSMISSION Diagram

MAINSHAFT

23210-KA4-740

Unavailable

COUNTERSHAFT (NOT AVAILABLE)

23221-KA4-740

Unavailable

COLLAR, COUNTERSHAFT (22MM)

23225-430-000

Unavailable

GEAR, COUNTERSHAFT LOW (27T) This part replaces 23411-KA4-770.

23411-KS7-000

Unavailable

GEAR, COUNTERSHAFT LOW (27T)

23411-KS7-000

Unavailable

COLLAR, COUNTERSHAFT LOW GEAR

23412-KA4-740

Unavailable

GEAR, MAINSHAFT SECOND (17T)

23421-KA4-740

Unavailable

GEAR, COUNTERSHAFT SECOND (25T)

23431-KA4-770

Unavailable

COLLAR, COUNTERSHAFT SECOND GEAR

23432-KA4-740

Unavailable

GEAR, MAINSHAFT THIRD (19T)

23441-KA4-770

Unavailable

GEAR, COUNTERSHAFT THIRD (23T)

23451-KA4-770

Unavailable

GEAR, MAINSHAFT FOURTH (21T) This part replaces 23461-KA4-770.

23461-KZ3-L20

$95.56

COLLAR, MAINSHAFT FOURTH GEAR

23462-KA4-000

Unavailable

GEAR, COUNTERSHAFT FOURTH (21T)

23471-KA4-770

Unavailable

GEAR, MAINSHAFT FIFTH (24T)

23481-KA4-770

Unavailable

GEAR, COUNTERSHAFT FIFTH (20T)

23491-KA4-770

Unavailable

SPROCKET, DRIVE (14T) This part replaces 23802-KA4-740.

23802-467-000

Unavailable

SPROCKET, DRIVE (14T)

23802-467-000

Unavailable

WASHER, THRUST (25MM)

90421-961-000

$5.58

WASHER, THRUST (25.2X30)

90444-430-000

$3.78

WASHER, THRUST (17.2MM)

90446-KA4-740

$5.94

WASHER, THRUST (24.2X34)

90446-KA5-680

Unavailable

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

WASHER, SPLINE (25MM)

90463-430-000

$5.89

WASHER, SPRING (8X40) This part replaces 90501-KA3-741.

90501-HB9-003

$4.40

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

WASHER B, THRUST (22MM) (BLUE) This part replaces 90502-360-000.

90455-ML7-000

$4.85

WASHER, THRUST (19MM)

90554-KA5-680

$4.37

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

O-RING (22X1.5)

91201-430-003

$2.94

BOLT, FLANGE (8X20)

96300-08020-07

$2.00
