- CR250RA (85) MOTORCYCLE, JPN, VIN# JH2ME030-FC700017 TO JH2ME030-PC708871
SHOCK ABSORBER 85-86

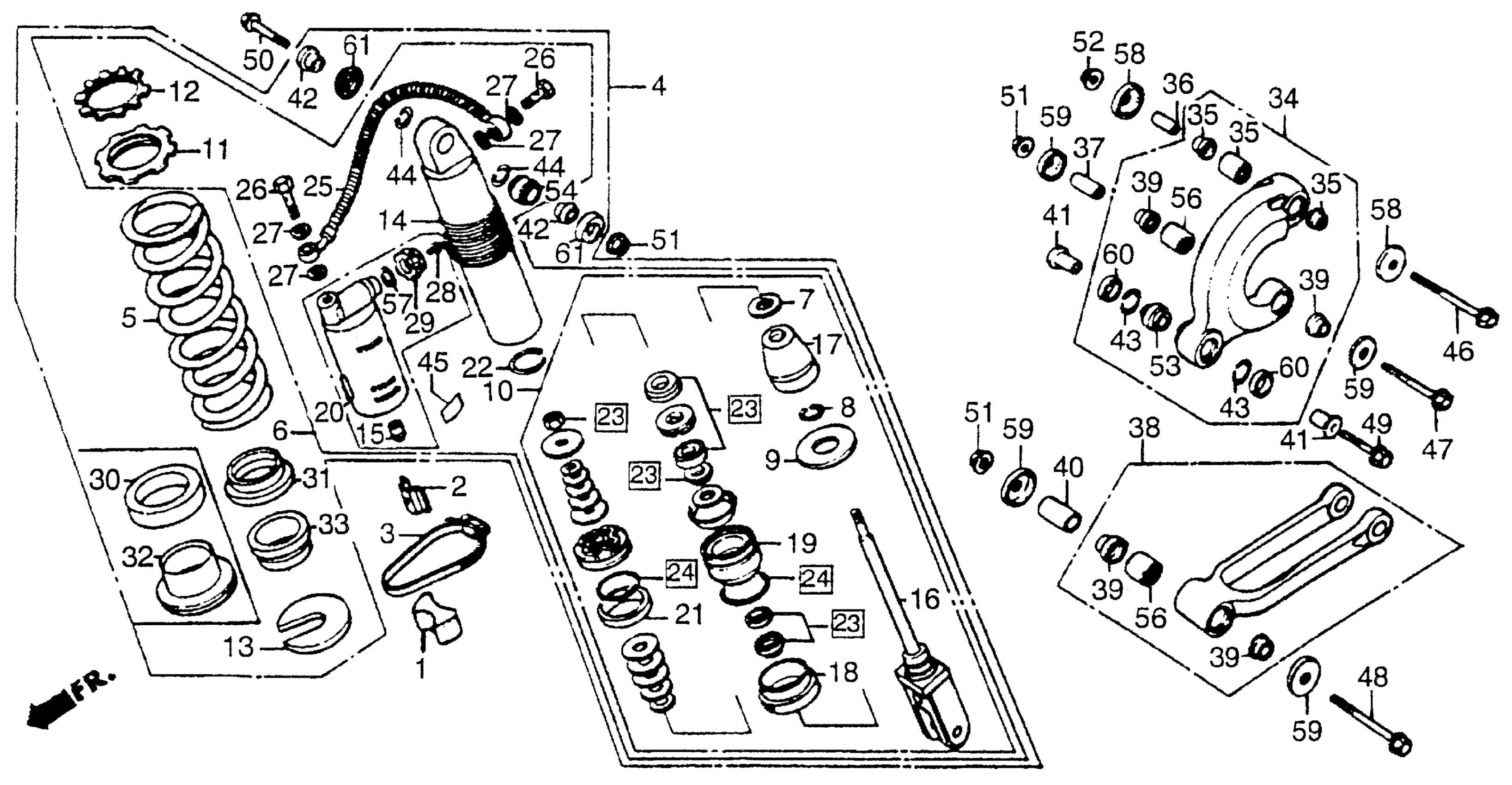

Honda CR250RA (85) MOTORCYCLE, JPN, VIN# JH2ME030-FC700017 TO JH2ME030-PC708871 SHOCK ABSORBER 85-86 Diagram
#
1
RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE)
50250-KA3-830
Unavailable
2
RUBBER, SUB-TANK
50251-KA3-830
Unavailable
3
BAND, SUB-TANK (NOT AVAILABLE)
50252-KA4-730
Unavailable
4
SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) | Use up to Frame SN FC702503 This part replaces 52400-KA4-842.
52400-KA4-843
Unavailable
4
SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) | Use from Frame SN FC702504
52400-KA4-843
Unavailable
5
SPRING, RR. SHOCK ABSORBER (4.8KGMM) (PINK) (SHOWA)
52401-KA4-841
Unavailable
5
SPRING, RR. SHOCK ABSORBER (4.4KGMM) (BROWN) (SHOWA) | (Optional).
52401-KA4-861
Unavailable
5
SPRING, RR. SHOCK ABSORBER (5.2KGMM) (BLACK) (SHOWA) (NOT AVAILABLE) | (Optional).
52401-KA5-841
Unavailable
6
DAMPER, RR. (SHOWA) | Use up to Frame SN FC702503 This part replaces 52410-KA4-842.
52410-KA4-843
Unavailable
6
DAMPER, RR. (SHOWA)
52410-KA4-843
Unavailable
7
SEAT, RUBBER (SHOWA)
52417-KA4-831
Unavailable
8
RING C, STOPPER (SHOWA)
52418-KA4-831
Unavailable
9
WASHER (SHOWA)
52419-KA4-831
Unavailable
10
ROD, PISTON (SHOWA) (NOT AVAILABLE) | Use up to Frame SN FC702503 This part replaces 52421-KA4-831.
52421-KA4-832
Unavailable
10
ROD, PISTON (SHOWA) (NOT AVAILABLE) | Use from Frame SN FC702504
52421-KA4-832
Unavailable
11
ADJUSTER, SPRING (SHOWA)
52422-KA4-831
Unavailable
12
NUT, ADJUSTER (SHOWA)
52423-KA4-831
Unavailable
13
STOPPER, SPRING SEAT
52424-KA4-831
Unavailable
14
CASE, RR. SHOCK ABSORBER (NOT AVAILABLE)
52425-KA4-831
Unavailable
16
ROD (SHOWA) (NOT AVAILABLE)
52426-KA4-831
Unavailable
18
PLATE, END (SHOWA)
52428-KA4-832
Unavailable
19
CASE, ROD GUIDE (SHOWA) (NOT AVAILABLE)
52429-KA4-831
Unavailable
20
SUB-TANK ASSY. (SHOWA) (NOT AVAILABLE)
52430-KA4-832
Unavailable
22
RING, STOPPER (SHOWA)
52435-KA4-831
Unavailable
23
OIL SEAL SET (SHOWA)
52436-KA4-841
Unavailable
25
HOSE, JOINT (SHOWA)
52440-KA4-831
Unavailable
26
BOLT, OIL (10X22)
52441-KA3-711
Unavailable
29
PLATE, ADJUSTING (NOT AVAILABLE)
52449-KA4-831
Unavailable
30
SEAT, SPRING (LOWER) (SHOWA)
52458-KA4-831
Unavailable
32
SEAT C, SPRING (SHOWA)
52459-KA4-831
Unavailable
34
ARM ASSY., SHOCK ABSORBER (NOT AVAILABLE)
52460-KA3-831
Unavailable
35
BUSH, DAMPER ARM
52462-KA3-831
Unavailable
36
COLLAR, CUSHION ARM PIVOT
52463-KA3-830
Unavailable
37
COLLAR, CUSHION ARM
52464-KA3-830
Unavailable
38
ROD ASSY., DAMPER CONNECTING (NOT AVAILABLE)
52470-KA3-830
Unavailable
39
BUSH, SHOCK CONNECTING ROD THRUST
52472-KA3-831
Unavailable
40
COLLAR, CONNECTING ROD PIVOT
52473-KA3-830
Unavailable
41
COLLAR, SHOCK ABSORBER (UPPER)
52486-KA3-731
Unavailable
42
COLLAR, SHOCK ABSORBER (UPPER) (SHOWA) (NOT AVAILABLE)
52486-KA4-831
Unavailable
43
RING, STOPPER
52487-KA3-731
Unavailable
45
LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)
87516-KF0-003
Unavailable
46
BOLT, FLANGE (12X105) This part replaces 90128-KA3-831.
90128-KA4-003
Unavailable
46
BOLT, FLANGE (12X105)
90128-KA4-003
Unavailable
48
BOLT, FLANGE (10X83) This part replaces 90130-KA3-830.
90130-KS6-000
Unavailable
48
BOLT, FLANGE (10X83)
90130-KS6-000
Unavailable
49
BOLT, FLANGE (10X48)
90153-KA3-730
Unavailable
50
BOLT, FLANGE (10X52)
90154-KA3-830
Unavailable
55
BEARING, NEEDLE (19.1X26.1X27) (TOYO)
91078-KA3-831
Unavailable
59
SEAL, RUBBER CONNECTING ROD PIVOT
91262-KA3-831
Unavailable
60
DUST SEAL, RR. SHOCK (UPPER)
91351-KA3-731
Unavailable
