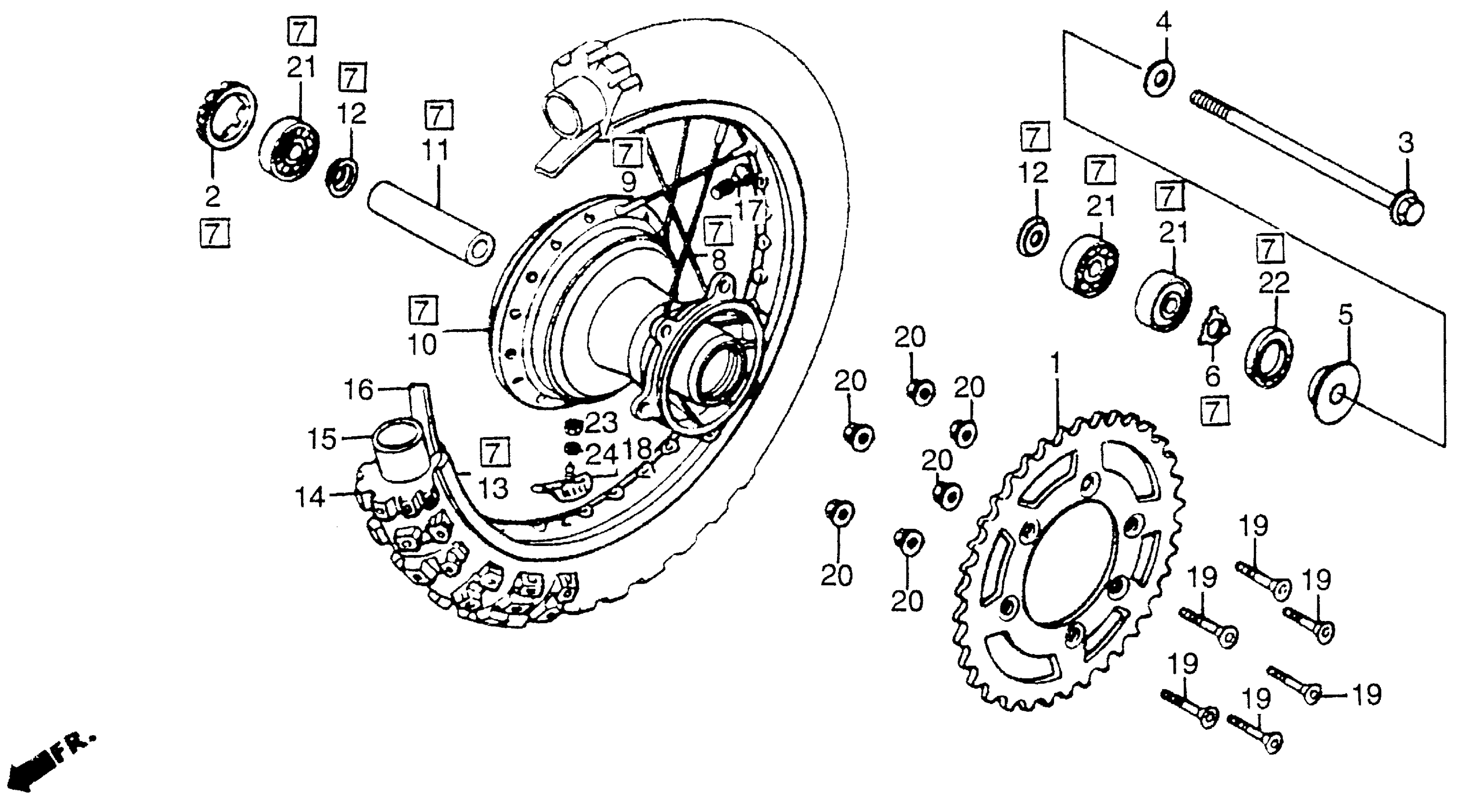

Honda CR250RA (85) MOTORCYCLE, JPN, VIN# JH2ME030-FC700017 TO JH2ME030-PC708871 RR. WHEEL 84-86 Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KA3-710.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KA3-730.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KS6-000.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KS6-700.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KS6-830.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KZ4-711.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (49T) (NOT AVAILABLE) | (Optional).

41202-KA3-730

Unavailable

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41202-KZ3-B00.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41202-KZ4-J20.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (53T) (NOT AVAILABLE) | (Optional).

41203-KA3-730

Unavailable

1

SPROCKET, FINAL DRIVEN (51T) (STEEL) | (Optional).

41204-KA3-710

Unavailable

2

RETAINER, RR. WHEEL BEARING

41231-KA3-710

Unavailable

3

AXLE, RR. WHEEL

42301-KA3-831

Unavailable

4

COLLAR, RR. AXLE

42306-KA3-830

Unavailable

5

COLLAR, RR. WHEEL SIDE This part replaces 42311-KA3-710.

42311-KS6-700

Unavailable

5

COLLAR, RR. WHEEL SIDE

42311-KS6-700

Unavailable

6

WASHER, RR. WHEEL SIDE

42312-KA3-730

Unavailable

7

RIM ASSY., RR. WHEEL

426A5-KA4-830

Unavailable

8

SPOKE SET A, RR. (192.5MM) This part replaces 42610-KA4-830.

42610-KS7-305

Unavailable

8

SPOKE SET A, RR. (192.5MM)

42610-KS7-305

Unavailable

9

SPOKE SET B, RR. (167.5MM) This part replaces 42611-KA4-830.

42611-KS7-305

Unavailable

9

SPOKE SET B, RR. (167.5MM)

42611-KS7-305

Unavailable

10

HUB, RR. WHEEL *NH105* (MAT BLACK) (NOT AVAILABLE) This part replaces 42601-KA3-830ZA.

42601-KS6-000ZA

Unavailable

11

COLLAR, RR. WHEEL DISTANCE

42620-KA3-710

Unavailable

12

CAP, DISTANCE COLLAR This part replaces 42621-KA3-710.

42621-KA3-711

Unavailable

12

CAP, DISTANCE COLLAR

42621-KA3-711

Unavailable

13

RIM, RR. WHEEL (NOT AVAILABLE)

42701-KA4-831

Unavailable

14

TIRE, RR. (110/100-18) (64M M22) (BS) This part replaces 42711-KA4-003.

42711-KS7-771

Unavailable

14

TIRE, RR. (110/100-18) (64M M22) (BS)

42711-KS7-771

Unavailable

15

TUBE, TIRE This part replaces 42712-KA5-681.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-430-701.

42712-KT1-673

$37.60

16

FLAP, TIRE (BS) This part replaces 42713-KA3-841.

42713-KS6-003

Unavailable

16

FLAP, TIRE (BS)

42713-KS6-003

Unavailable

17

CAP, VALVE

42714-KA3-710

$10.46

18

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

19

SCREW, FLAT (8X29)

90125-KA3-700

$6.19

20

NUT, HEX. (8MM)

90309-357-000

$3.40

21

BEARING, RADIAL BALL (6004TM) (TOYO)

91061-KA4-701

Unavailable

22

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$9.16

22

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-712.

91257-MAY-003

$9.16

22

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$9.16

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49
