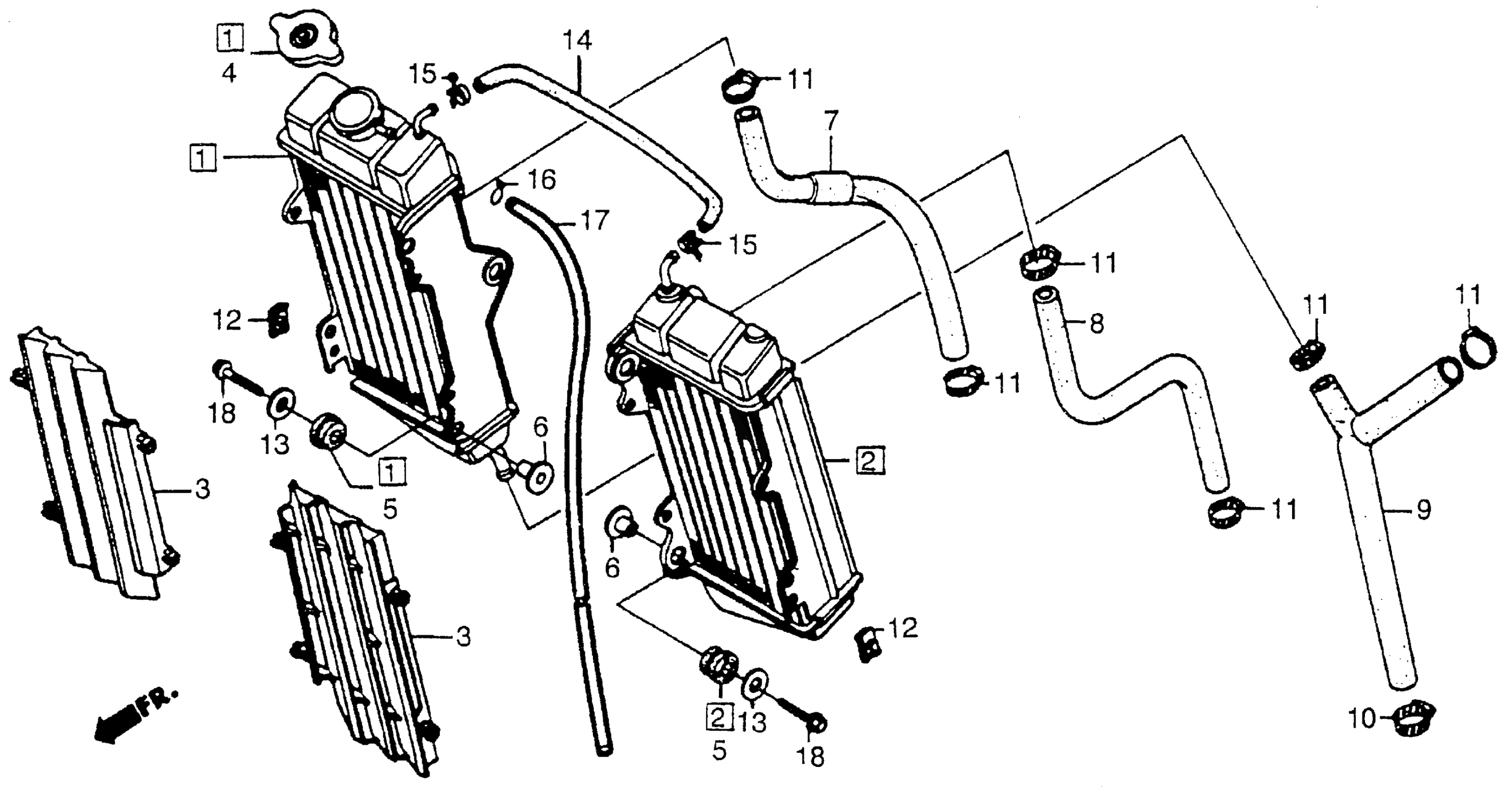

Honda CR250RA (85) MOTORCYCLE, JPN, VIN# JH2ME030-FC700017 TO JH2ME030-PC708871 RADIATOR 85-87 Diagram

RADIATOR, R. This part replaces 19010-KA3-830.

19010-KA3-306

Unavailable

RADIATOR, L. This part replaces 19015-KA3-830.

19015-KA3-306

Unavailable

GRILLE, RADIATOR (NOT AVAILABLE)

19033-KA3-831

Unavailable

CAP, RADIATOR This part replaces 19037-KA4-701.

19045-MZ1-621

$50.26

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING This part replaces 19052-KA3-830.

19052-MAC-680

$5.14

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

HOSE, WATER (A) (NOT AVAILABLE)

19061-KA3-830

Unavailable

HOSE B, WATER (NOT AVAILABLE)

19062-KA3-830

Unavailable

HOSE H, WATER (NOT AVAILABLE)

19068-KA4-830

Unavailable

CLAMP, WATER HOSE

19506-KA4-000

$9.18

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

CLAMP, WATER HOSE (25MM) This part replaces 19507-KA3-830.

19504-KY1-003

$10.29

NUT, SPRING (6MM)

19508-KA3-710

$5.72

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.36

BULK HOSE, FUEL (7.5X8000) (7.3X130)

95001-75008-60M

$103.82

CLIP, TUBE (A13)

95002-01130

$4.17

CLIP, TUBE (B8)

95002-02080

$1.80

BULK HOSE, VINYL (6X9X1000) (6X9X600)

95003-14001-10M

$3.30

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
