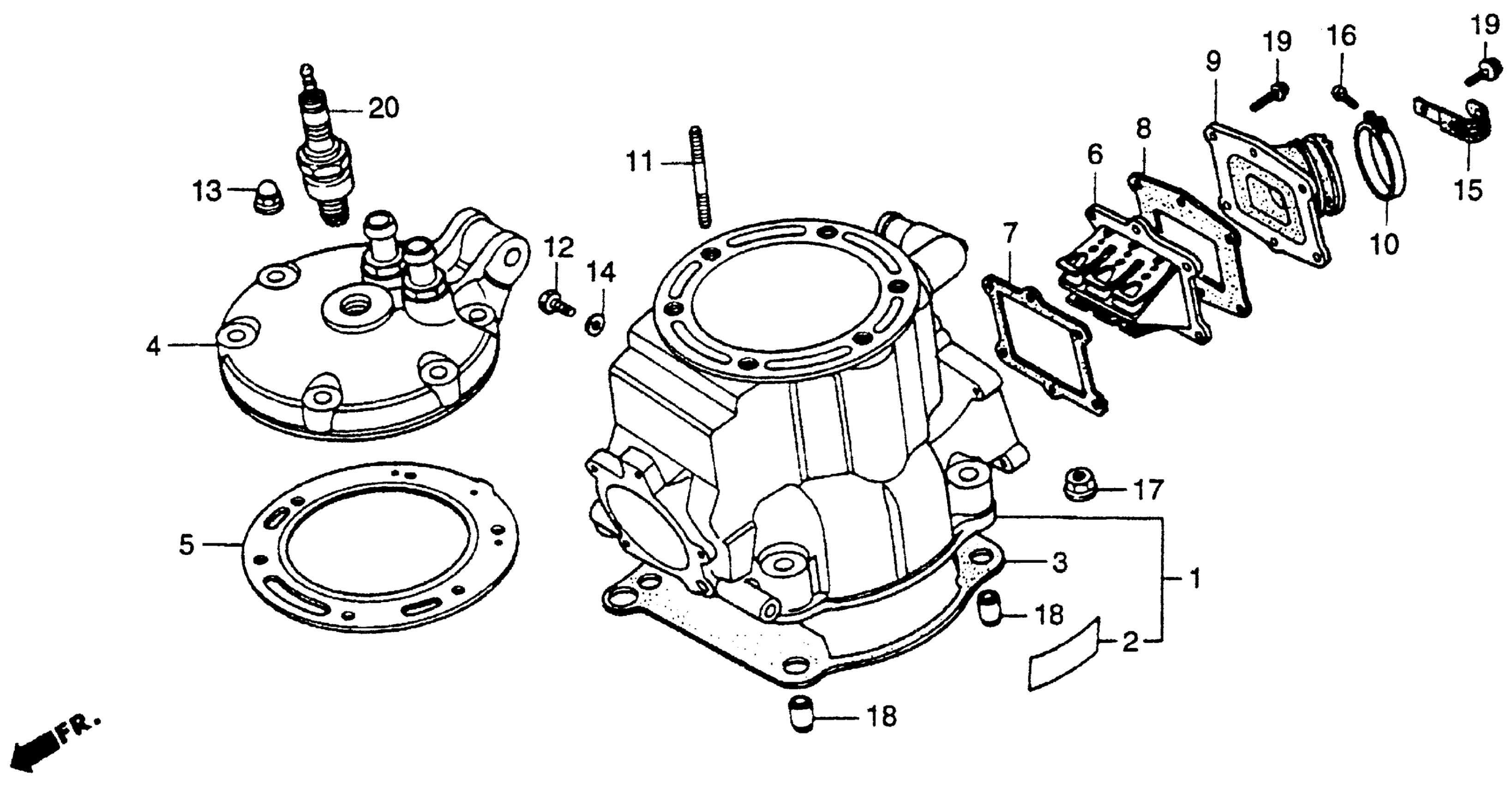

Honda CR250RA (85) MOTORCYCLE, JPN, VIN# JH2ME030-FC700017 TO JH2ME030-PC708871 CYLINDER HEAD 85 Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-KA4-770

Unavailable

2

MARK, ATAC

12103-KA4-770

Unavailable

3

GASKET, CYLINDER This part replaces 12191-KA4-770.

12191-KS7-880

Unavailable

3

GASKET, CYLINDER This part replaces 12191-KS7-306.

12191-KS7-880

Unavailable

3

GASKET, CYLINDER This part replaces 12191-KS7-700.

12191-KS7-880

Unavailable

3

GASKET, CYLINDER

12191-KS7-880

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE)

12200-KA4-770

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12254-HA2-000.

12254-KS7-881

$35.12

5

GASKET, CYLINDER HEAD

12254-KS7-881

$35.12

6

VALVE, REED (NOT AVAILABLE)

14100-KA4-741

Unavailable

7

GASKET A, REED VALVE

14132-KAE-000

$4.06

7

GASKET A, REED VALVE This part replaces 14132-430-000.

14132-KAE-000

$4.06

8

GASKET B, REED VALVE This part replaces 14133-430-000.

14133-430-306

$7.64

8

GASKET B, REED VALVE

14133-430-306

$7.64

9

INSULATOR, CARBURETOR

16221-KA4-740

Unavailable

10

BAND, INSULATOR

16223-KA4-740

Unavailable

11

BOLT, SPECIAL STUD

90011-HA2-000

$7.20

12

BOLT, OIL CHECK

90037-360-000

$3.26

13

NUT, CAP (8MM)

90443-107-000

$2.89

14

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

15

CLIP, WIRE HARNESS

91406-657-671

$9.42

16

SCREW, PAN (5X25)

93500-05025-0A

$1.49

17

NUT, FLANGE (10MM)

94050-10000

$1.59

18

PIN A, DOWEL (12X20)

94301-12200

$2.29

19

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

19

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

20

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649.

98079-58679

$5.80

20

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649-00.

98079-58679

$5.80

20

SPARK PLUG (W24ESR-V) (DENSO)

98079-58659

$2.54

20

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58669.

98079-58679

$5.80

20

SPARK PLUG (BR8EG) (NGK)

98079-58679

$5.80
