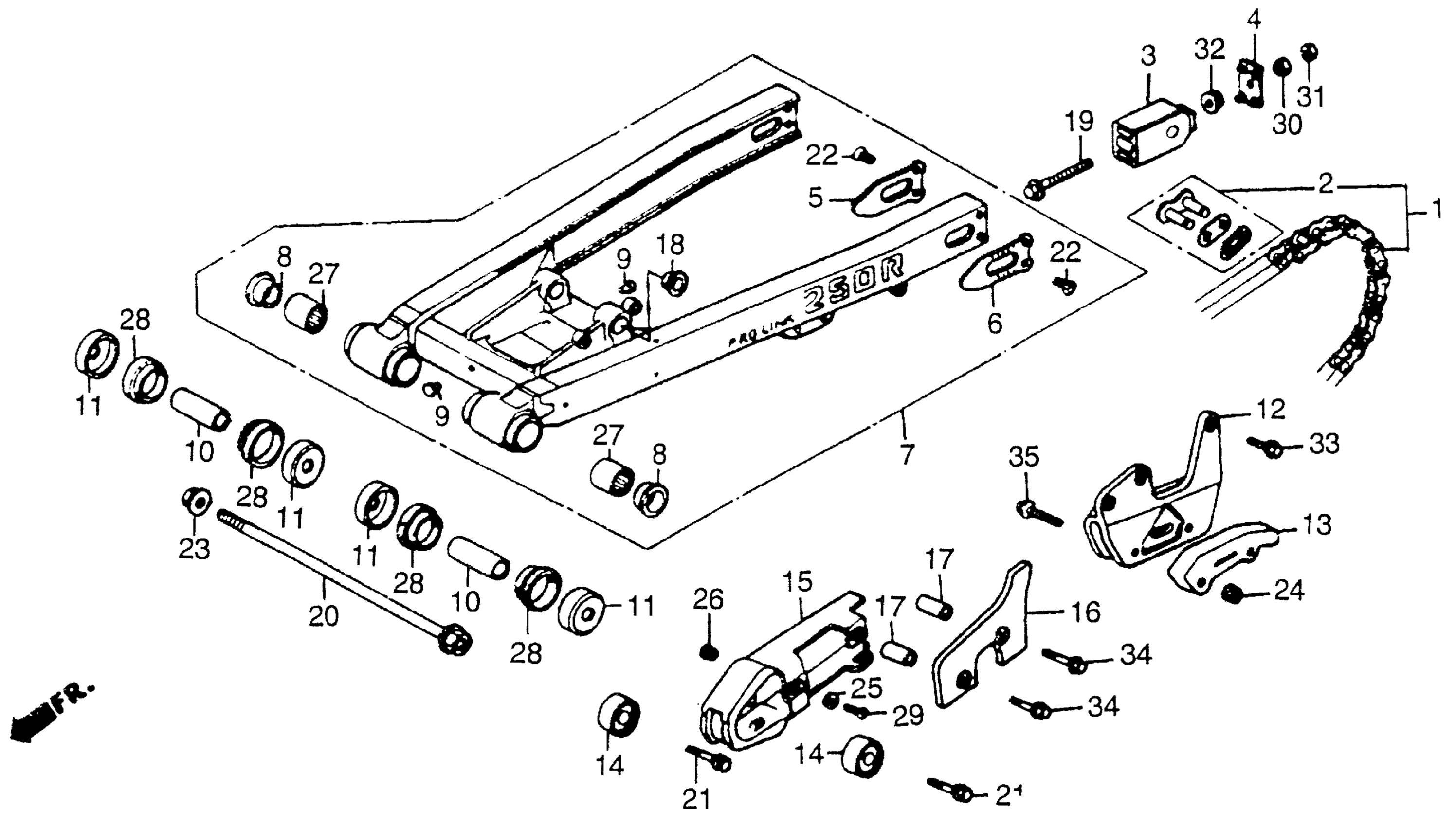

Honda CR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME030-EC600001 TO JH2ME030-EC607757 SWINGARM 84 Diagram

#

Description
Price

1

CHAIN, DRIVE

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional).

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-731.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-732.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-733.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE (RK520K-ZX112L) | (Optional).

40532-KA4-731

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA4-732.

405W3-KA4-505

Unavailable

2

MASTER LINK (TAKASAGO)

40531-KA4-731

Unavailable

2

MASTER LINK (DAIDO)

40531-KA4-732

Unavailable

3

ADJUSTER, CHAIN This part replaces 40543-KA3-731.

40543-KA4-700

Unavailable

3

ADJUSTER, CHAIN

40543-KA4-700

Unavailable

4

RETAINER, CHAIN ADJUSTER (NOT AVAILABLE)

40544-KA3-710

Unavailable

5

WASHER, SWINGARM INSIDE

42307-KA3-710

Unavailable

6

WASHER, SWINGARM (OUTER)

42308-KA3-710

Unavailable

7

SWINGARM ASSY., RR.

52000-KA4-730

Unavailable

8

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

9

PLUG, RR. SWINGARM

52130-KA3-731

Unavailable

10

COLLAR, SWINGARM

52141-KA4-700

Unavailable

11

CAP, DUST SEAL

52144-KA3-731

$14.60

12

GUIDE, SET CHAIN This part replaces 52146-KA3-731.

52146-KA3-305

Unavailable

13

SLIDER, CHAIN GUIDE

52147-KA3-730

Unavailable

14

ROLLER, CHAIN TENSIONER

52158-KA3-730

Unavailable

15

SLIDER, CHAIN

52170-KA3-730

Unavailable

16

SPLASH GUARD, CHAIN (NOT AVAILABLE)

52180-KA3-730

Unavailable

17

COLLAR, CHAIN SPLASH GUARD

52181-KA3-710

Unavailable

18

WASHER, CUSHION ARM

52464-KA3-730

Unavailable

19

BOLT, FLANGE (8X72)

90106-KA4-700

Unavailable

20

BOLT, SWINGARM (NOT AVAILABLE)

90117-KA3-710

Unavailable

21

BOLT, FLANGE (8X37)

90118-KA3-730

Unavailable

22

SCREW, FLAT (5X4)

90124-KA3-711

$5.60

23

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

24

NUT, U (6MM)

90301-473-003

$4.07

25

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.92

26

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

27

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

27

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

28

DUST SEAL (32X36.8X8) (ARAI)

91253-KA3-731

Unavailable

28

DUST SEAL

91253-KA4-701

$12.86

28

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

29

SCREW, PAN (5X10)

93500-05010-0H

$1.49

30

NUT, HEX. (8MM)

94001-08000-0S

$1.49

31

NUT, HEX. (8MM)

94002-08000-0S

$1.49

32

NUT, FLANGE (8MM)

94050-08000

$1.49

33

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

33

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

34

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

34

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

35

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

35

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
