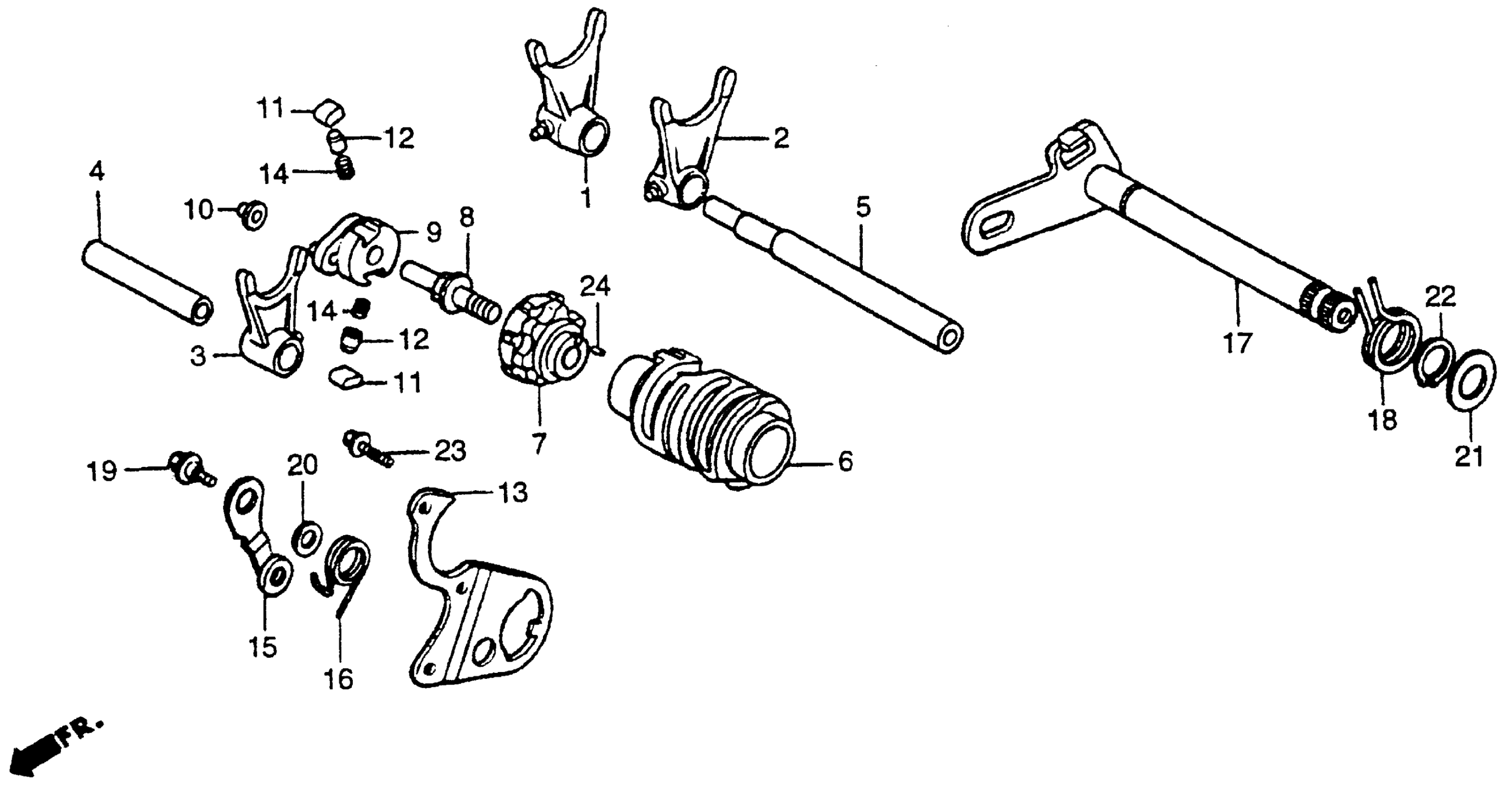

Honda CR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME030-EC600001 TO JH2ME030-EC607757 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-KA4-740

Unavailable

FORK, L. GEARSHIFT (NOT AVAILABLE)

24221-KA4-740

$57.03

FORK, CENTER GEARSHIFT This part replaces 24231-KA4-740.

24231-MEN-730

$69.04

FORK, CENTER GEARSHIFT This part replaces 24231-KA4-770.

24231-MEN-730

$69.04

FORK, CENTER GEARSHIFT This part replaces 24231-KA4-771.

24231-MEN-730

$69.04

FORK, CENTER GEARSHIFT

24231-MEN-730

$69.04

SHAFT, SHIFT FORK

24265-KA4-740

Unavailable

SHAFT, SHIFT FORK

24266-KA4-740

Unavailable

DRUM, GEARSHIFT This part replaces 24311-KA4-740.

24311-KSK-730

Unavailable

DRUM, GEARSHIFT

24311-KSK-730

Unavailable

DRUM, GEARSHIFT This part replaces 24311-ML3-000.

24311-KSK-730

Unavailable

CENTER, SHIFT DRUM

24312-KA3-741

$64.75

PIN, SHIFTER

24315-KA3-710

$21.03

SHIFTER, DRUM

24320-KA3-740

Unavailable

COLLAR, SHIFTER This part replaces 24322-KA3-740.

24322-HA0-000

$5.49

COLLAR, SHIFTER

24322-HA0-000

$5.49

PAWL, RATCHET

24324-KA3-740

Unavailable

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

PLUNGER, PAWL

24326-360-010

$5.19

PLATE, GUIDE

24328-KA4-740

Unavailable

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

STOPPER, DRUM

24430-KA3-740

$21.88

SPRING, SHIFT DRUM STOPPER

24435-KA4-740

Unavailable

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-KA4-740

Unavailable

SPRING, GEARSHIFT RETURN

24651-KA4-740

Unavailable

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER B, THRUST (14MM)

90428-958-000

$4.66

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

ROLLER (4X8)

96220-40080

$1.49
