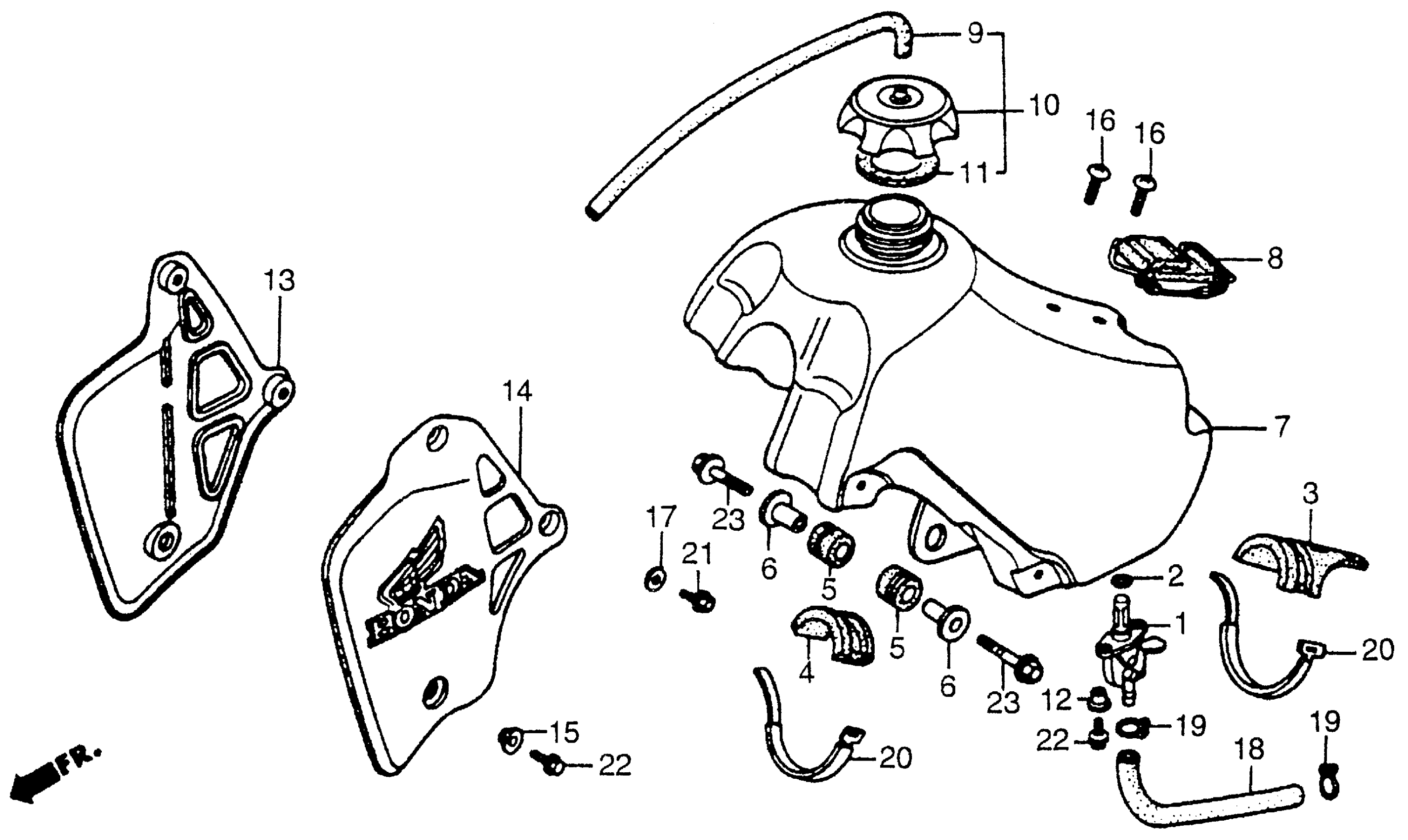

Honda CR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME030-EC600001 TO JH2ME030-EC607757 FUEL TANK 84 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-KA3-730.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-731.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-732.

16950-ML3-911

$51.08

1

PETCOCK ASSY.

16950-ML3-911

$51.08

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER A, FUEL TANK SETTING This part replaces 17504-KA3-730.

17504-KA3-731

Unavailable

3

RUBBER A, FUEL TANK SETTING

17504-KA3-731

Unavailable

4

RUBBER B, FUEL TANK SETTING This part replaces 17506-KA3-730.

17506-KA3-731

Unavailable

4

RUBBER B, FUEL TANK SETTING

17506-KA3-731

Unavailable

5

RUBBER, FUEL TANK SETTING

17508-KA3-710

$8.75

6

COLLAR, FUEL TANK SETTING

17509-KA3-710

$11.54

7

TANK, FUEL

17510-KA4-730

Unavailable

8

BAND, RR. FUEL TANK MOUNT (NOT AVAILABLE)

17516-KA3-710

Unavailable

9

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

10

CAP ASSY., FUEL TANK This part replaces 17620-KA3-730.

17620-ML3-840

Unavailable

10

CAP ASSY., FUEL TANK

17620-ML3-840

Unavailable

11

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

12

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

13

SHROUD SUB-ASSY., R. RADIATOR

19071-KA4-730

Unavailable

14

SHROUD SUB-ASSY., L. RADIATOR (NOT AVAILABLE)

19072-KA4-730

Unavailable

15

COLLAR (6X23)

19509-KA3-730

$6.99

16

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-710.

90131-S0X-A00

$1.49

16

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-730.

90131-S0X-A00

$1.49

16

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-830.

90131-S0X-A00

$1.49

16

SCREW, TRUSS (M6X16)

90131-S0X-A00

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

BULK HOSE, FUEL (7.5X8000) (7.3X130)

95001-75008-60M

$103.82

19

CLIP, TUBE (B12)

95002-02120

$2.00

20

BAND A3, CABLE

95014-61300

$1.97

21

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

21

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

22

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

22

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

23

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

23

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
