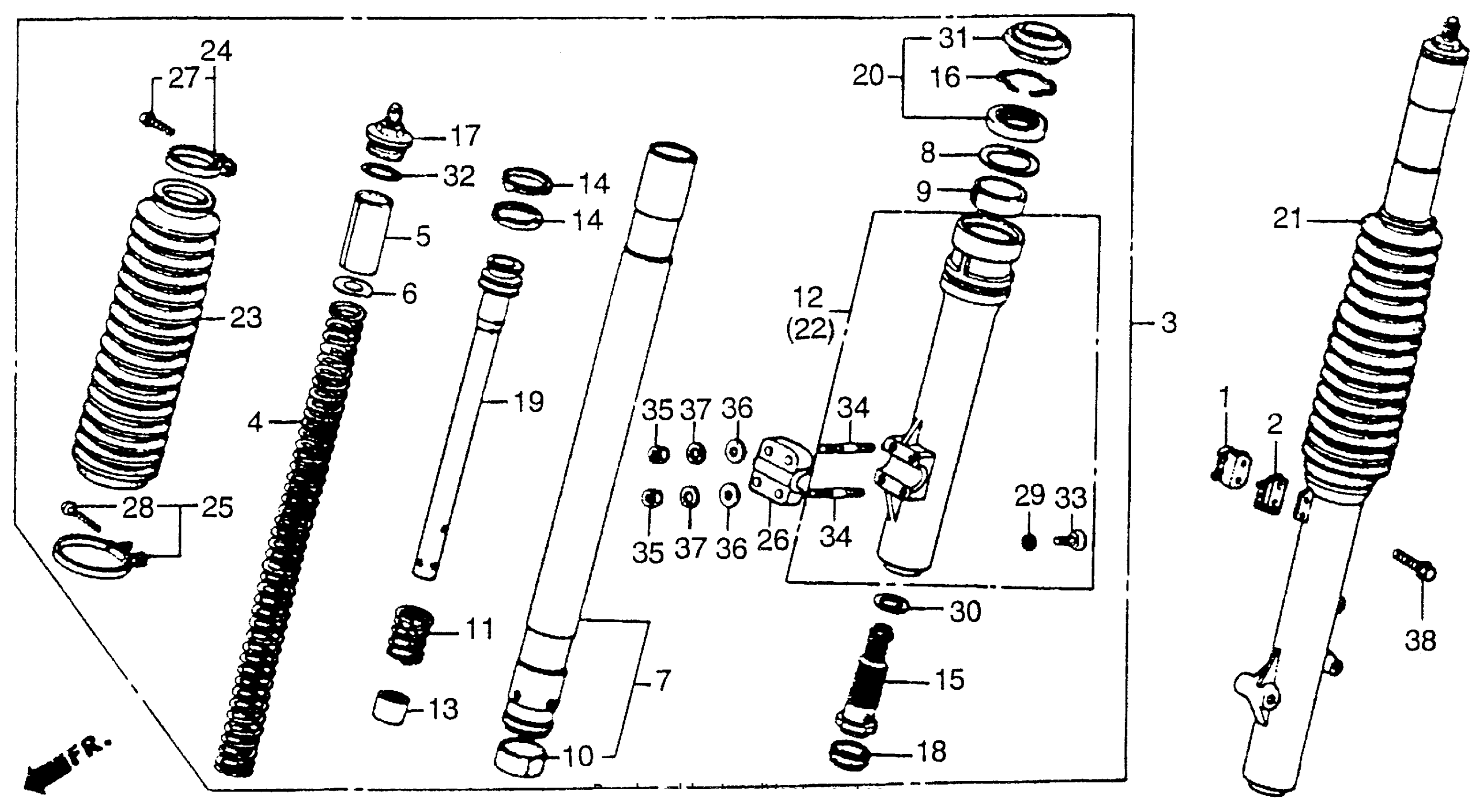

Honda CR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME030-EC600001 TO JH2ME030-EC607757 FR. FORK 84-85 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE (NOT AVAILABLE)

45461-KA3-730

Unavailable

2

CLAMP B, FR. BRAKE CABLE

45462-KA3-731

Unavailable

3

FORK ASSY., R. FR. (SHOWA) | Use up to Frame SN EC600114 This part replaces 51400-KA4-742.

51400-KA4-743

Unavailable

3

FORK ASSY., R. FR. (SHOWA)

51400-KA4-743

Unavailable

4

SPRING, FR. FORK (0.318KG/MM) (2-GRV) (NOT AVAILABLE)

51401-KA4-732

Unavailable

4

SPRING, FR. FORK (0.339KG/MM) (3-GRV) | (Optional).

51401-KA5-742

Unavailable

4

SPRING, FR. FORK (0.297KG/MM) (ONE GROOVE) | (Optional).

51402-KA4-732

Unavailable

5

SPACER, SPRING (SHOWA)

51404-KA4-731

Unavailable

6

SEAT, SPRING

51405-KA4-711

$6.23

7

PIPE, FR. FORK (NOT AVAILABLE)

51410-KA4-731

Unavailable

8

RING, BACK-UP

51412-KA4-711

$9.65

9

BUSH, GUIDE

51414-MAZ-751

$7.14

9

BUSH, GUIDE This part replaces 51414-MG7-003.

51414-MAZ-751

$7.14

9

BUSH, GUIDE This part replaces 51414-MN1-671.

51414-MAZ-751

$7.14

10

BUSH, SLIDER This part replaces 51415-KA4-711.

51415-MN1-671

$15.97

10

BUSH, SLIDER

51415-MN1-671

$15.97

11

SPRING, FR. REBOUND

51416-KA4-711

Unavailable

12

CASE, R. (LOWER) (SHOWA) | Use up to Frame SN EC600114 This part replaces 51420-KA4-731.

51420-KA4-732

Unavailable

12

CASE, R. (LOWER) (SHOWA)

51420-KA4-732

Unavailable

13

PIECE, OIL LOCK

51432-KA4-731

Unavailable

14

RING, PISTON (SHOWA)

51437-KA4-711

Unavailable

15

BOLT, CENTER (NOT AVAILABLE)

51441-KA4-731

Unavailable

16

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

17

BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE)

51450-KA4-711

Unavailable

18

CAP, FR. FORK (NOT AVAILABLE)

51461-KA4-711

Unavailable

19

PIPE, SEAT

51470-KA4-741

Unavailable

20

SEAL SET, FR. FORK

51490-KA4-731

Unavailable

21

FORK ASSY., L. FR. (SHOWA) | Use up to Frame SN EC600114 This part replaces 51500-KA4-742.

51500-KA4-743

Unavailable

21

FORK ASSY., L. FR. (SHOWA)

51500-KA4-743

Unavailable

22

CASE, L. (LOWER) (SHOWA) | Use up to Frame SN EC600114 This part replaces 51520-KA4-731.

51520-KA4-732

Unavailable

22

CASE, L. (LOWER) (SHOWA)

51520-KA4-732

Unavailable

23

BOOT, FR. FORK (NOT AVAILABLE)

51611-KA4-711

Unavailable

24

BAND, BOOT (UPPER) (SHOWA) | Use up to Frame SN EC600114 This part replaces 51612-KA4-711.

51612-KA4-831

$10.67

24

BAND, BOOT (UPPER) (SHOWA) | Use from Frame SN EC600115 This part replaces 51612-KA4-731.

51612-KA4-831

$10.67

24

BAND, BOOT (UPPER) (SHOWA)

51612-KA4-831

$10.67

25

BAND, BOOT (LOWER) (SHOWA) This part replaces 51613-KA4-711.

51613-MK2-003

$8.78

25

BAND, BOOT (LOWER)

51613-MK2-003

$8.78

26

HOLDER, AXLE This part replaces 51634-KA3-731.

51634-KT0-671

Unavailable

26

HOLDER, AXLE This part replaces 51634-KA4-711.

51634-KT0-671

Unavailable

26

HOLDER, AXLE

51634-KT0-671

Unavailable

27

SCREW, PAN (3.5X15) (NOT AVAILABLE)

90202-KA4-711

Unavailable

28

SCREW, PAN (3.5X25)

90202-MK2-003

$4.53

28

SCREW, PAN (3.5X25) This part replaces 90203-KA4-711.

90202-MK2-003

$4.53

29

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

30

WASHER, SPECIAL (18MM)

90544-KA4-711

Unavailable

31

DUST SEAL, FR. FORK

91254-KA4-731

Unavailable

32

O-RING (35.2X2.4)

91356-KA4-711

$3.76

33

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

33

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

34

BOLT, STUD (6X28) This part replaces 90038-250-000.

92900-06028-0B

$1.89

34

BOLT, STUD (6X28) This part replaces 90051-200-000.

92900-06028-0B

$1.89

34

BOLT, STUD (6X28) This part replaces 92700-06035-0B.

92900-06028-0B

$1.89

34

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

34

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

34

BOLT, STUD (6X28)

92900-06028-0B

$1.89

34

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

35

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM)

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

36

WASHER, PLAIN (6MM)

94101-06800

$1.49

37

WASHER, SPRING (6MM)

94111-06000

$1.49

38

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

38

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
